Lower Rear Of Engine Compartment Components

Lower Rear Of Engine Compartment Components

Component Name Callout
M9 Brake Booster Pump Motor 1
B137 Power Steering Shaft Torque Sensor 2
K43 Power Steering Control Module 3

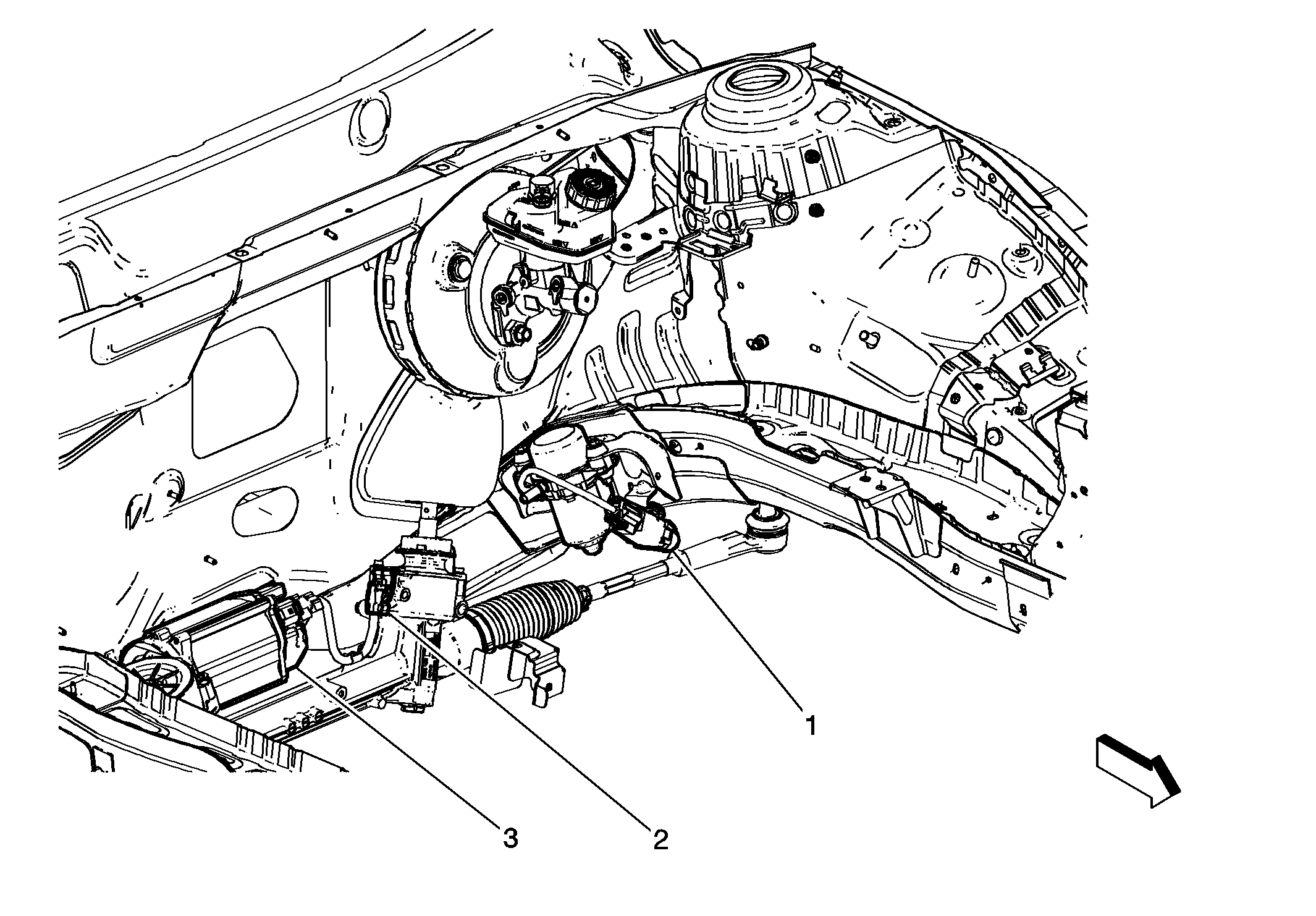

Fig 1: Lower Rear Of Engine Compartment
GM2545547Courtesy of GENERAL MOTORS COMPANY
