Ground Views
›
G201
Ground Views: G201
G201
Component Name
Callout
G201
1

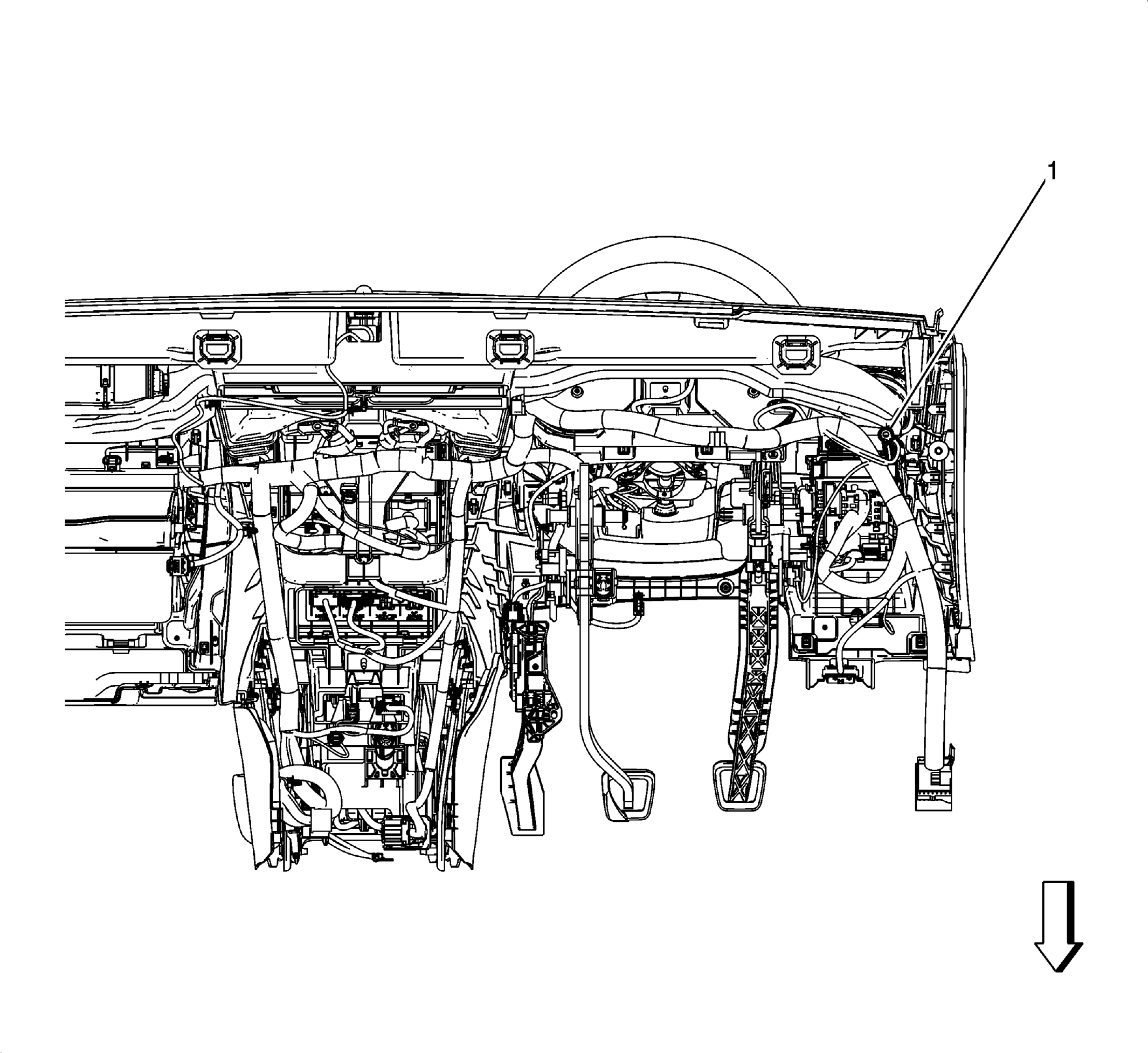

Fig 1: Behind the Left Side Of I/P Components
Courtesy of GENERAL MOTORS COMPANY
