Fuel Feed Hose Replacement

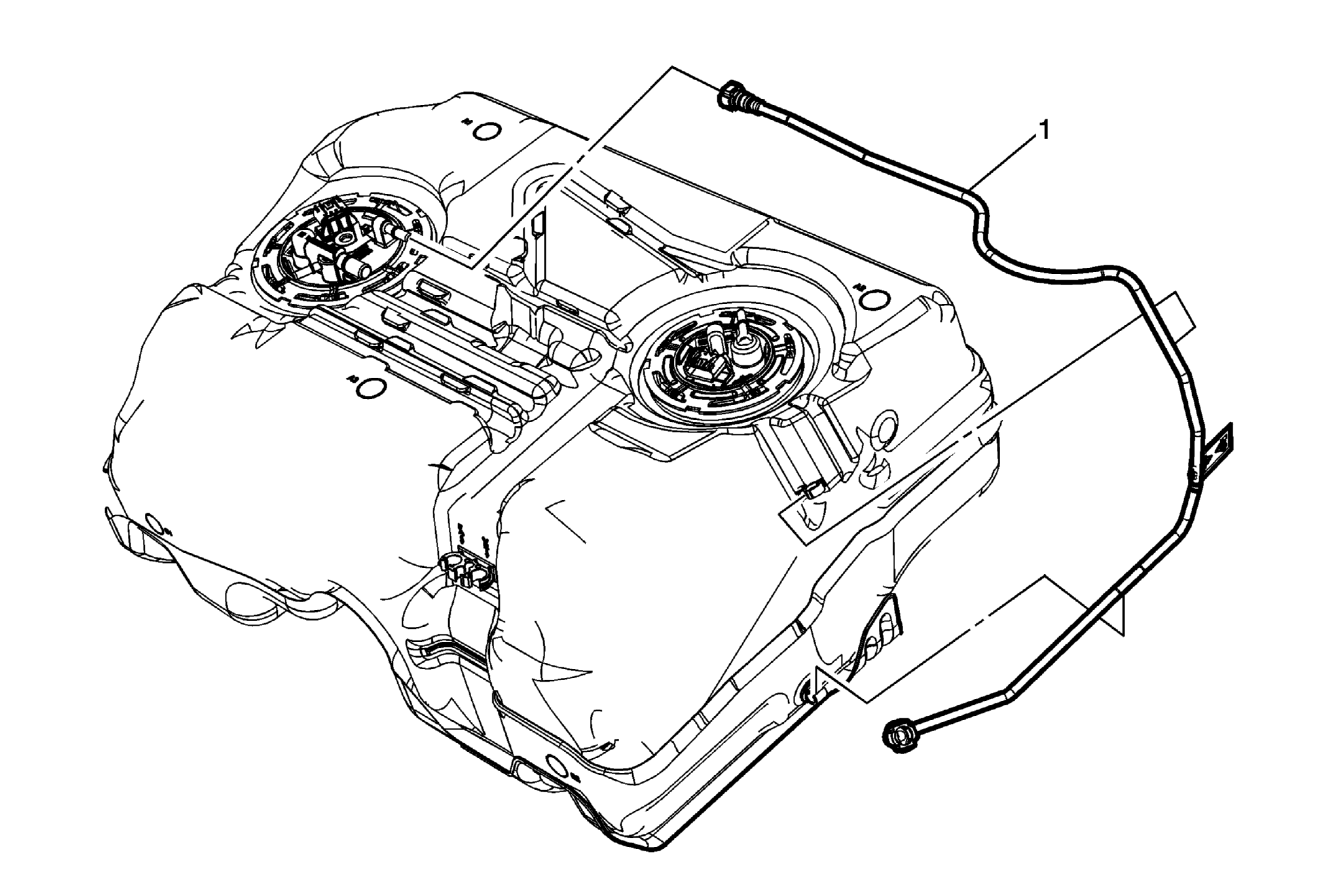

Fig 1: Fuel Feed Hose

GM2747423

Courtesy of GENERAL MOTORS COMPANY

Fuel Feed Hose Replacement

Callout

Component Name

Preliminary Procedures

Relieve the fuel system pressure. Refer to Fuel Pressure Relief .
Raise and support the vehicle. Refer to Lifting and Jacking the Vehicle .
Remove the fuel tank. Refer to Fuel Tank Replacement (AWD) , Fuel Tank Replacement (FWD)
Disconnect the quick connectors. Refer to Plastic Collar Quick Connect Fitting Service .

1

Fuel Feed Hose
Procedure
Disengage the hose from the plastic retainers.
