Chevrolet
›
2012
›
Equinox LS, AWD, Gas
›
Repair and Diagnosis
›
Engine Performance
›
System
›
Data Communications System
›
Wiring Schematics
›
Data Communication Wiring Schematics
›
Chassis Expansion Bus
Chassis Expansion Bus

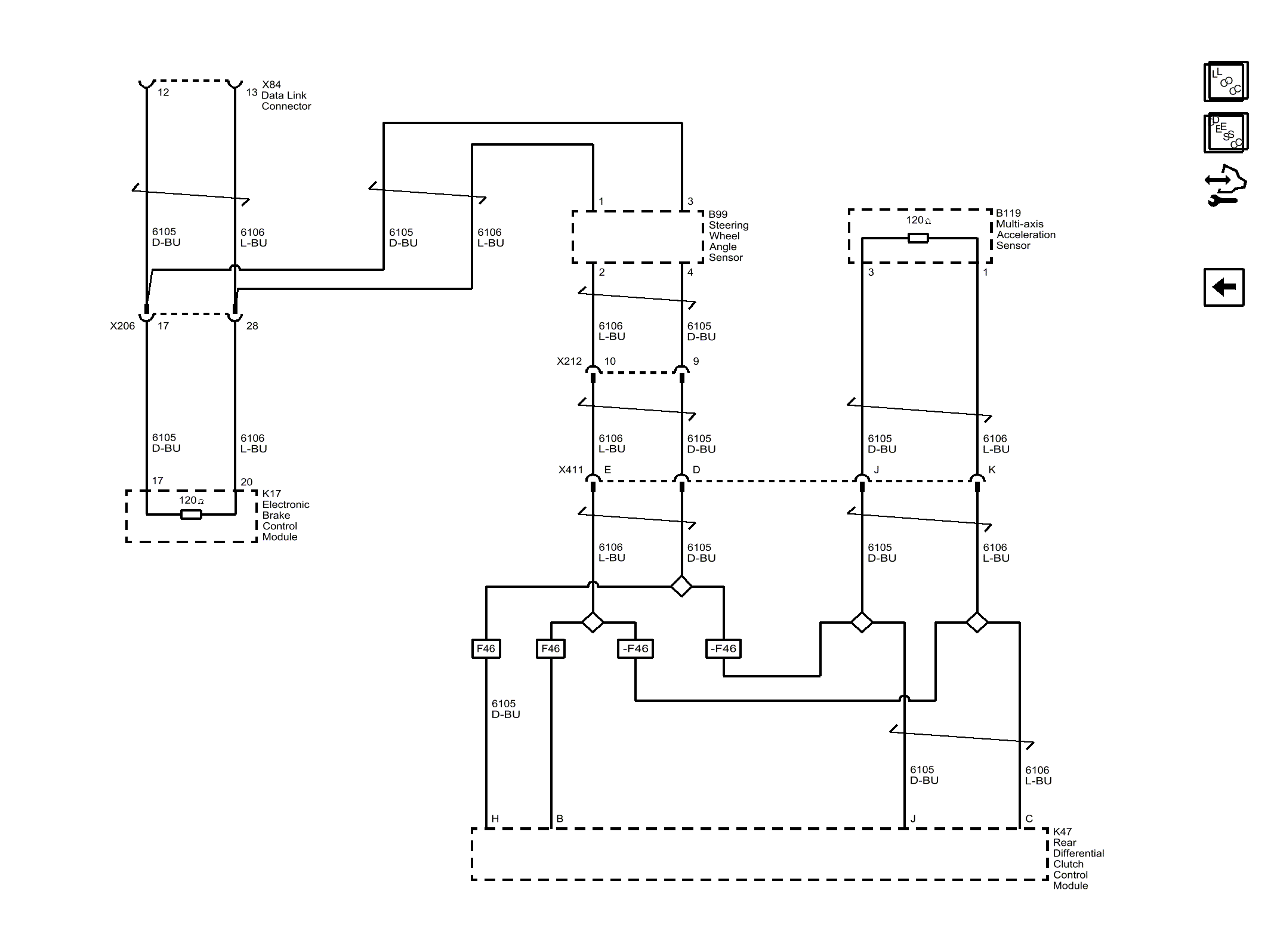

Fig 1: Chassis Expansion Bus Wiring Schematic
Courtesy of GENERAL MOTORS COMPANY
Courtesy of GENERAL MOTORS COMPANY
