Crankshaft Position Sensor Replacement
Crankshaft Position Sensor Replacement

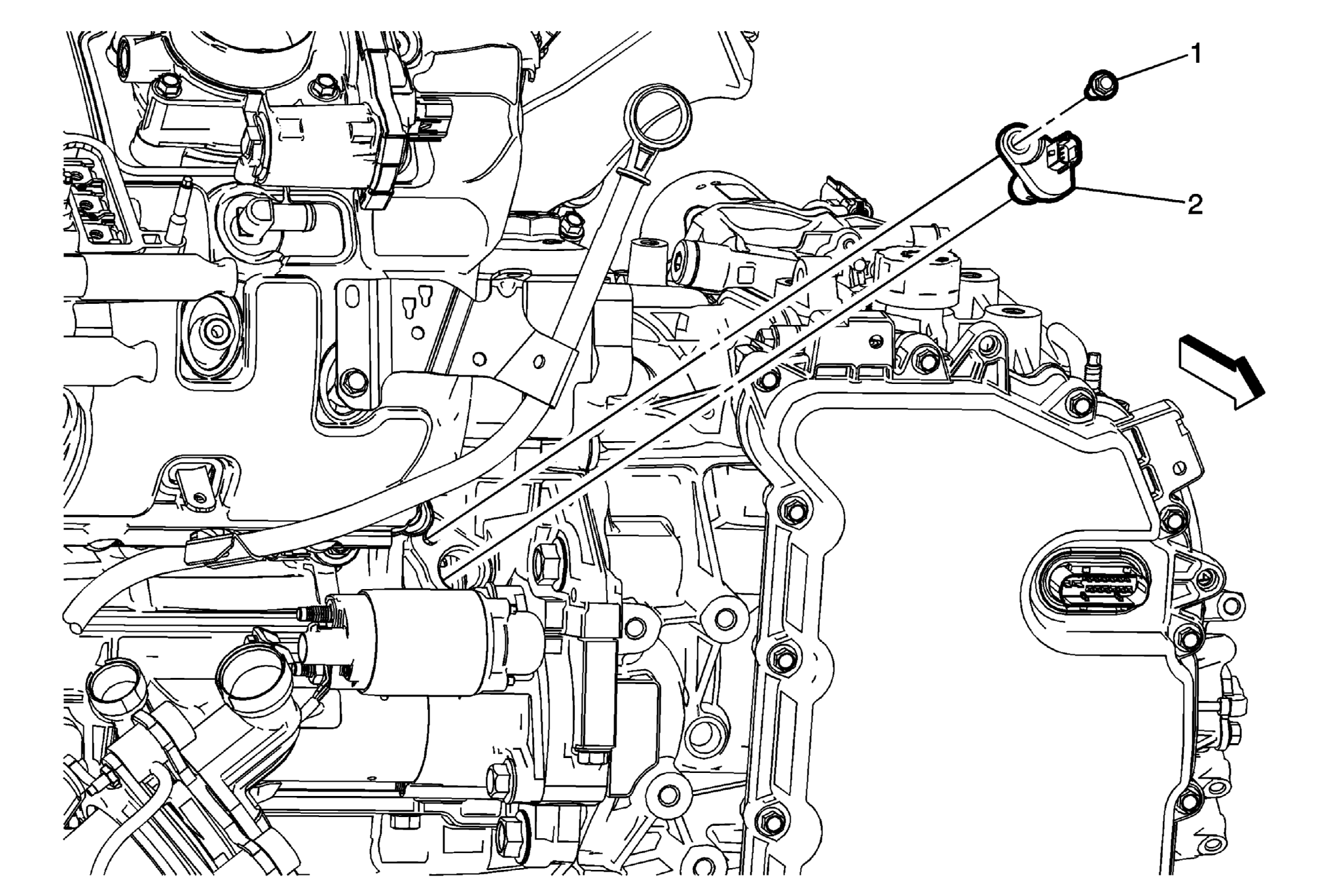

| Callout | Component Name |
|---|---|
| Preliminary Procedure Raise and support the vehicle. Refer to Lifting and Jacking the Vehicle . |
|
| 1 | Crankshaft Position Sensor Fastener
CAUTION:
Refer to Fastener Caution . Tighten 10 N.m (89 lb in) |
| 2 | Crankshaft Position Sensor Procedure Disconnect the electrical connector. |
