Impala LS, Gas
›
Repair and Diagnosis
›
Accessories & Equipment
›
Memory Modules
›
Secondary And Configurable Customer Control System
›
Wiring Schematics
›
Steering Wheel Secondary/Configurable Control Wiring Schematics
›
Steering Wheel Secondary/Configurable Control
Steering Wheel Secondary/Configurable Control

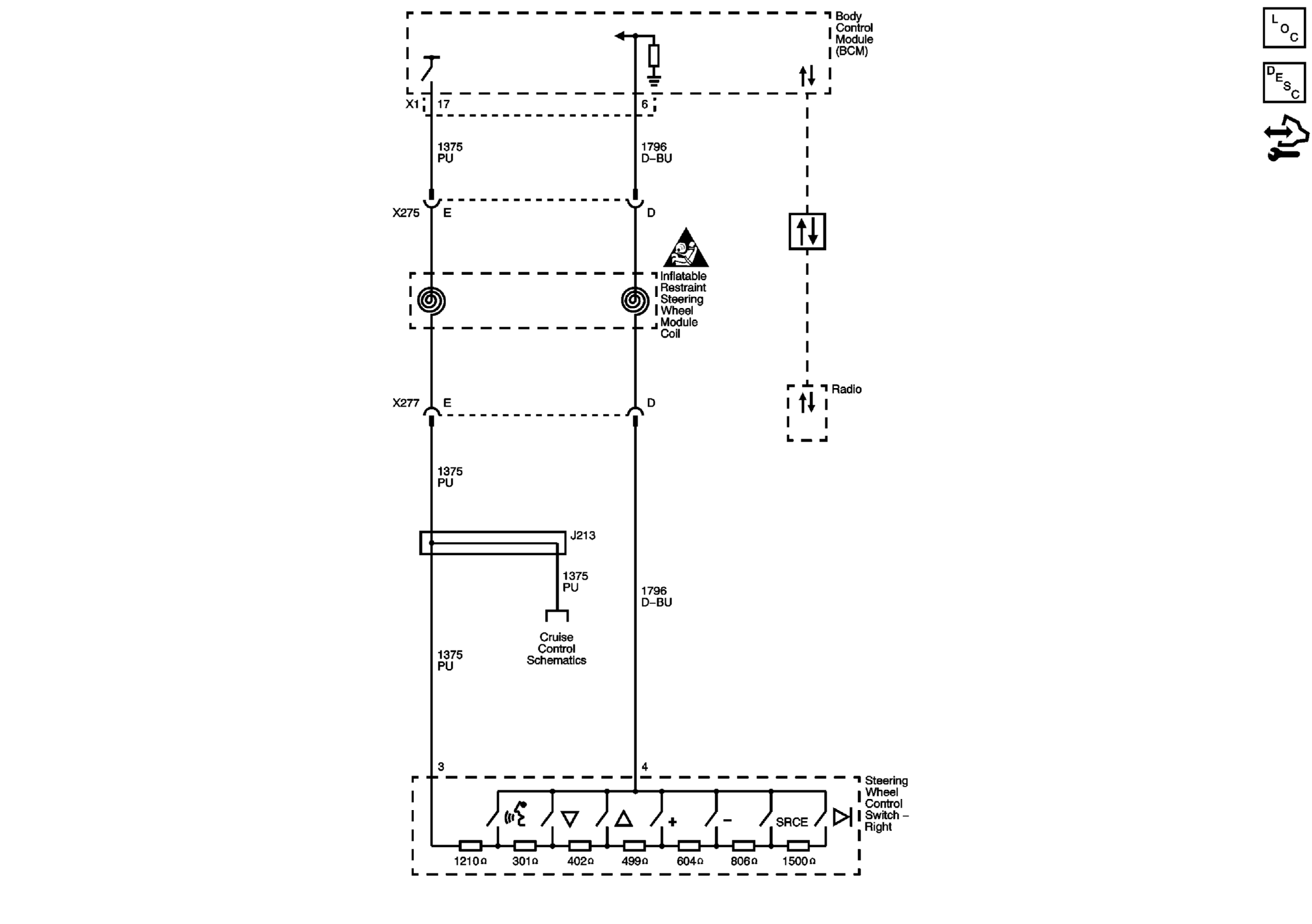

Fig 1: Steering Wheel Secondary/Configurable Control Wiring Schematic
Courtesy of GENERAL MOTORS COMPANY
Courtesy of GENERAL MOTORS COMPANY
