Air Cleaner Outlet Duct Replacement

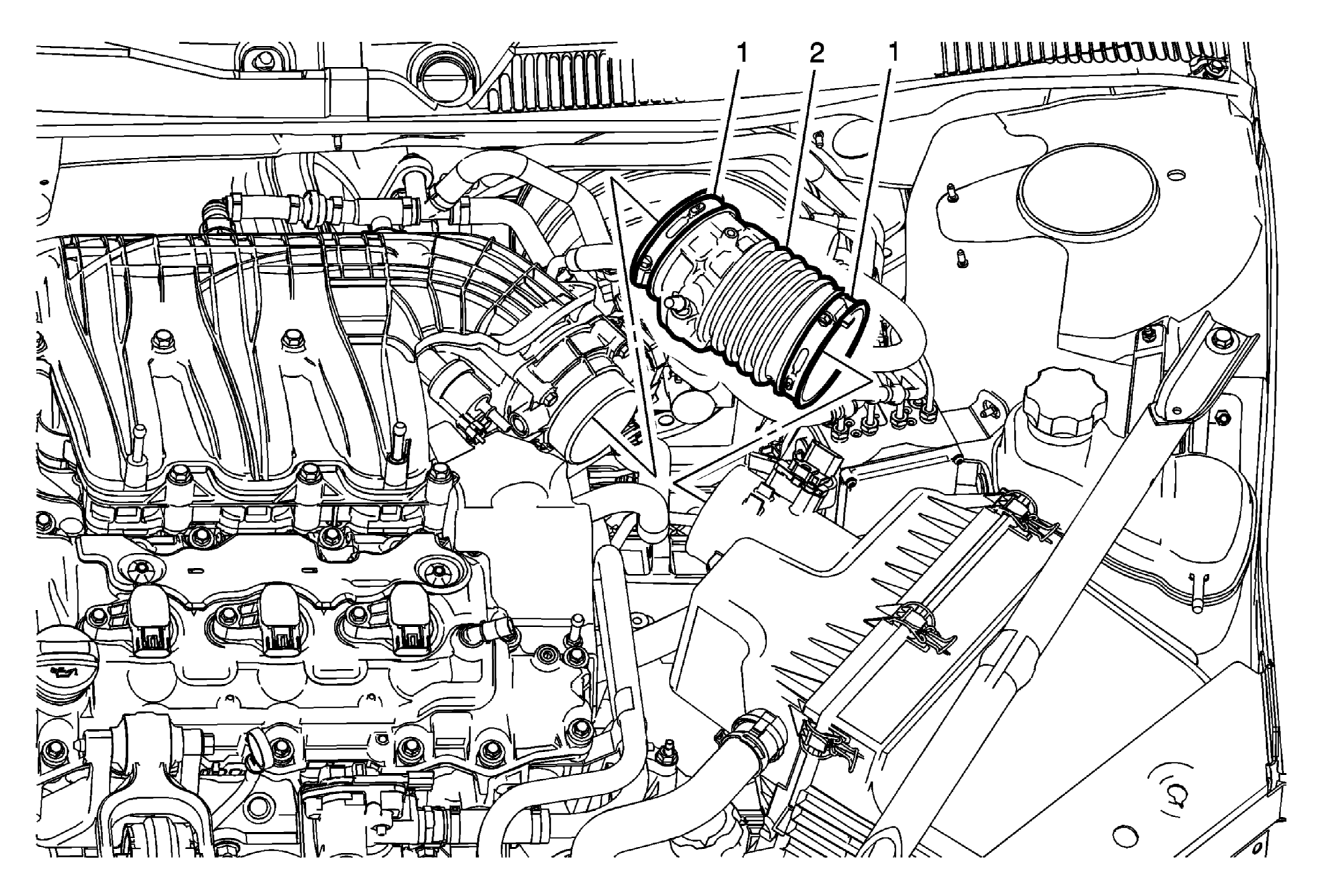

Fig 1: Air Cleaner Outlet Duct

Courtesy of GENERAL MOTORS COMPANY

Air Cleaner Outlet Duct Replacement

Callout	Component Name
Preliminary Procedure  Remove the positive crankcase ventilatioin tube front. Refer to Positive Crankcase Ventilation Tube Replacement - Front
1	Air Cleaner Outlet Duct Clamps. (Qty: 2). CAUTION: Refer to Fastener Caution . Tighten  3 N.m (27 lb in)
2	Air Cleaner Outlet Duct
