Installation Procedure

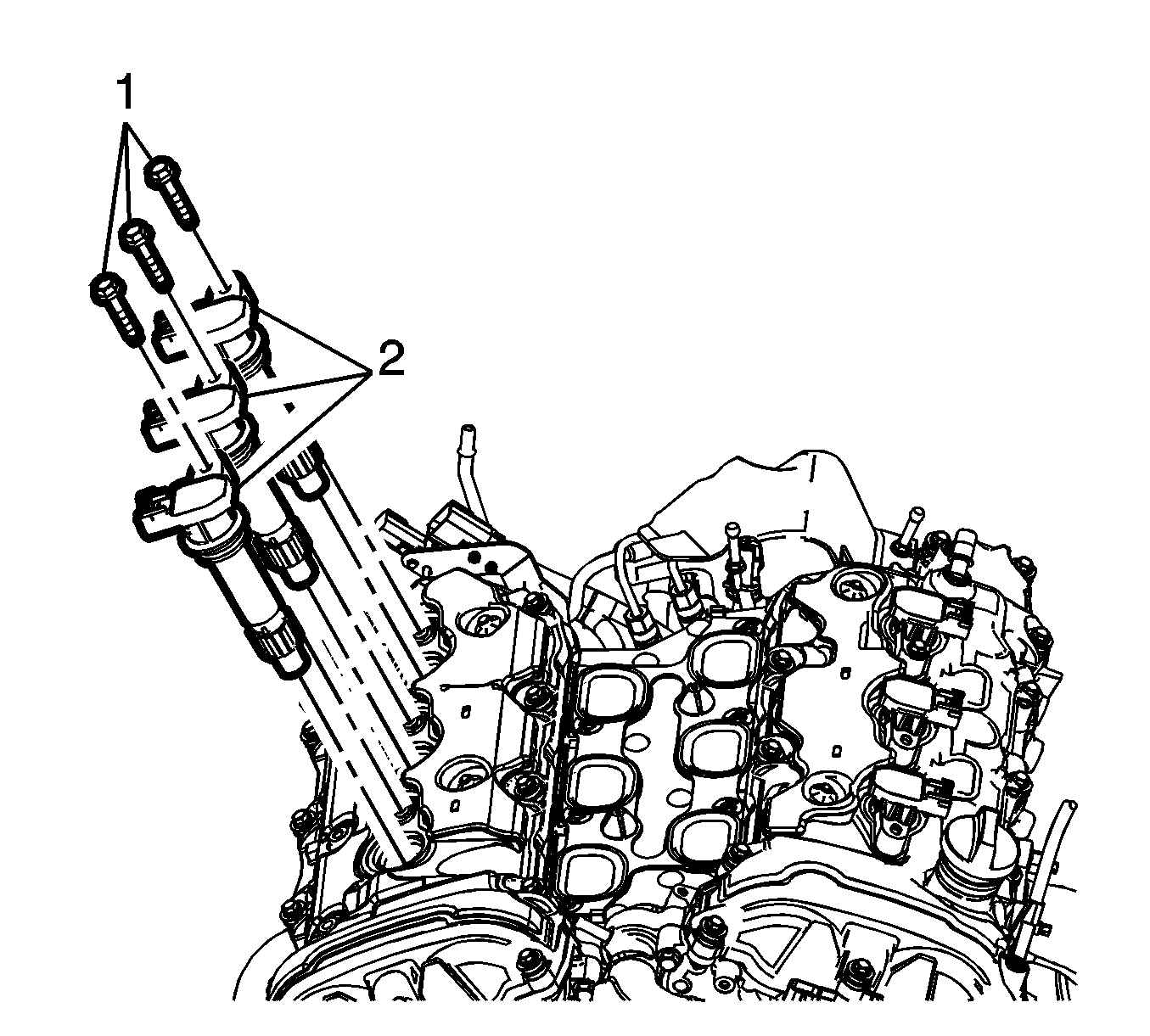

Fig 1: Ignition Coils And Bolts

GM2614951

Courtesy of GENERAL MOTORS COMPANY

Install the ignition coil(s) (2).

CAUTION:

Refer to Fastener Caution .

Install the ignition coil bolt(s) (1)and tighten to 10 N.m (89 lb in).

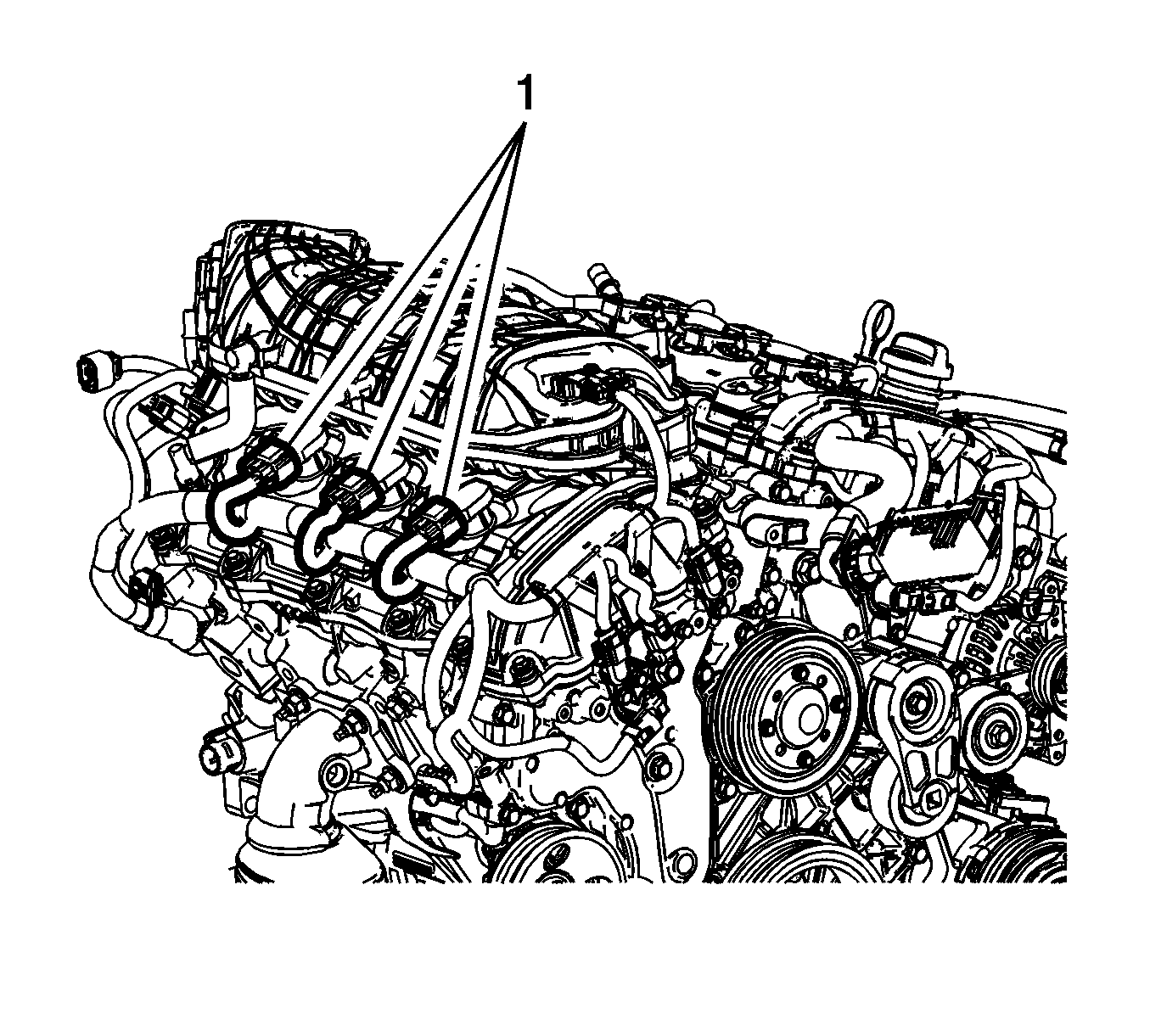

Fig 2: Engine Wiring Harness Electrical Connectors

GM2614990

Courtesy of GENERAL MOTORS COMPANY

Connect the engine wiring harness electrical connector(s) (1) to the ignition coil(s).
Install the intake manifold. Refer to Intake Manifold Replacement .
