Installation Procedure

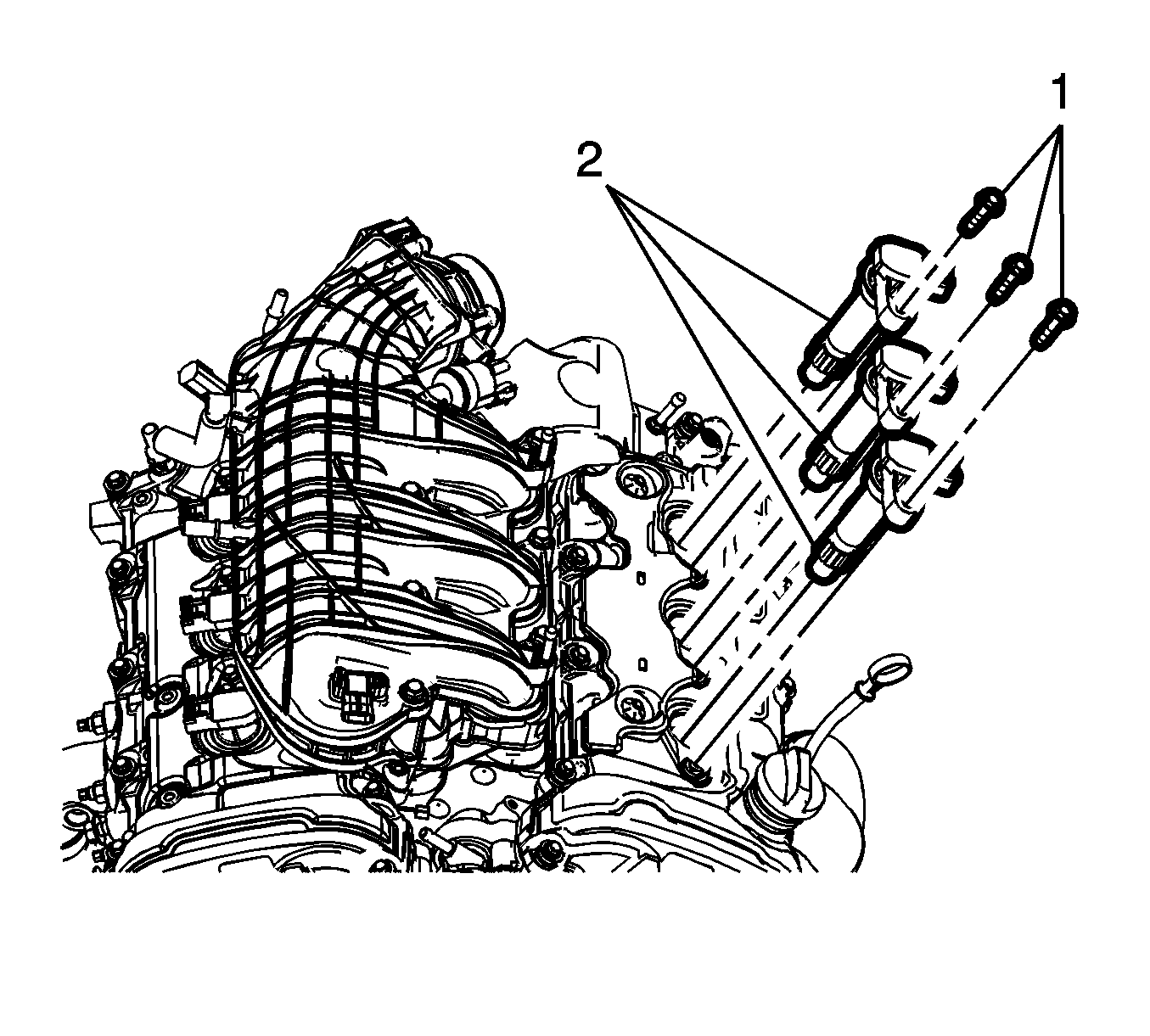

Fig 1: Ignition Coils And Bolts

GM2614956

Courtesy of GENERAL MOTORS COMPANY

Install the ignition coil(s) (2).

CAUTION:

Refer to Fastener Caution .

Install the ignition coil bolt(s) (1) and tighten to 10 N.m (89 lb in).

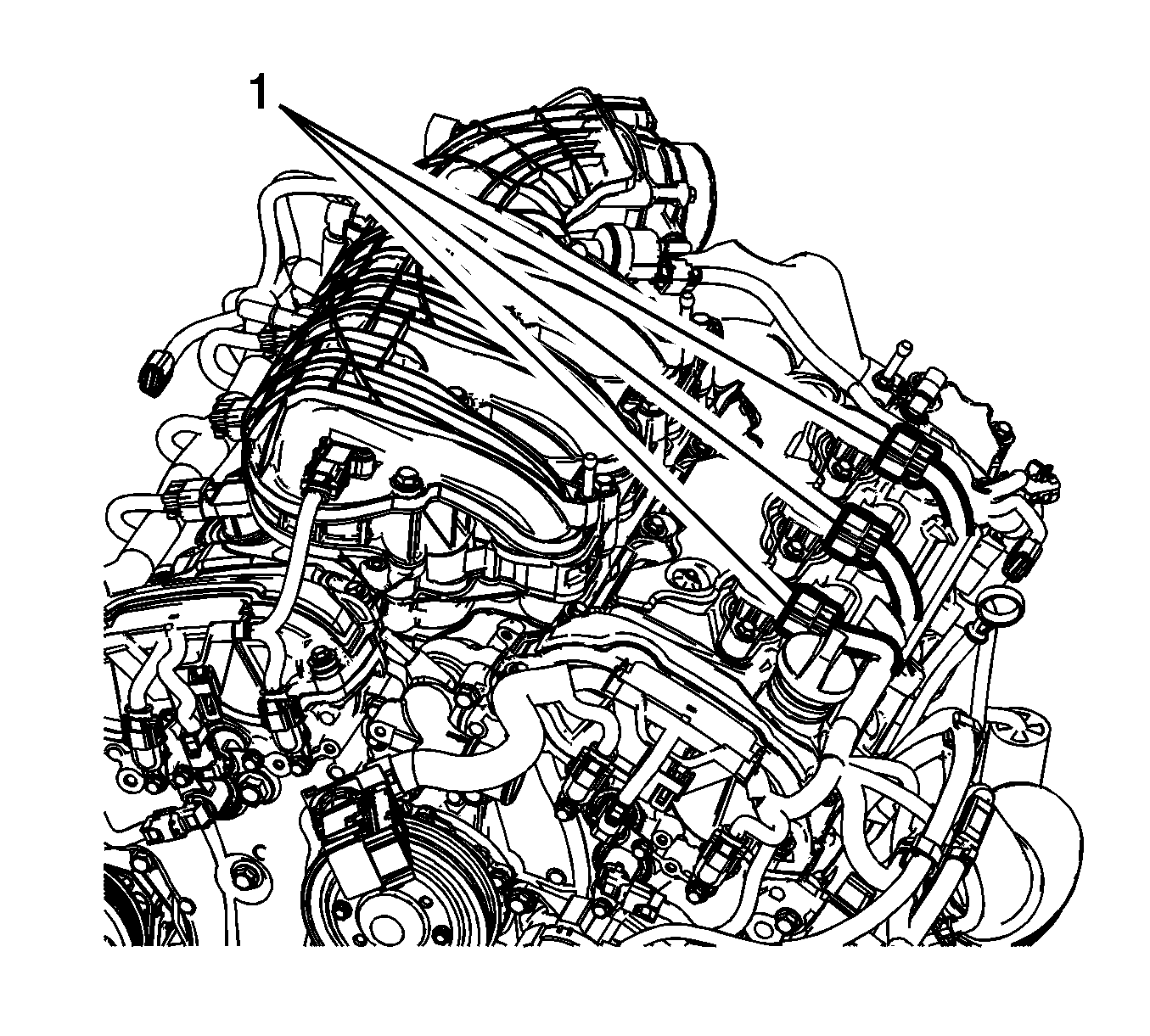

Fig 2: Engine Wiring Harness Electrical Connectors

GM2615041

Courtesy of GENERAL MOTORS COMPANY

Connect the engine wiring harness electrical connector(s) (1) to the ignition coil(s).
Install theintake manifold cover. Refer to Intake Manifold Cover Replacement .
