Inside Rearview Mirror Replacement

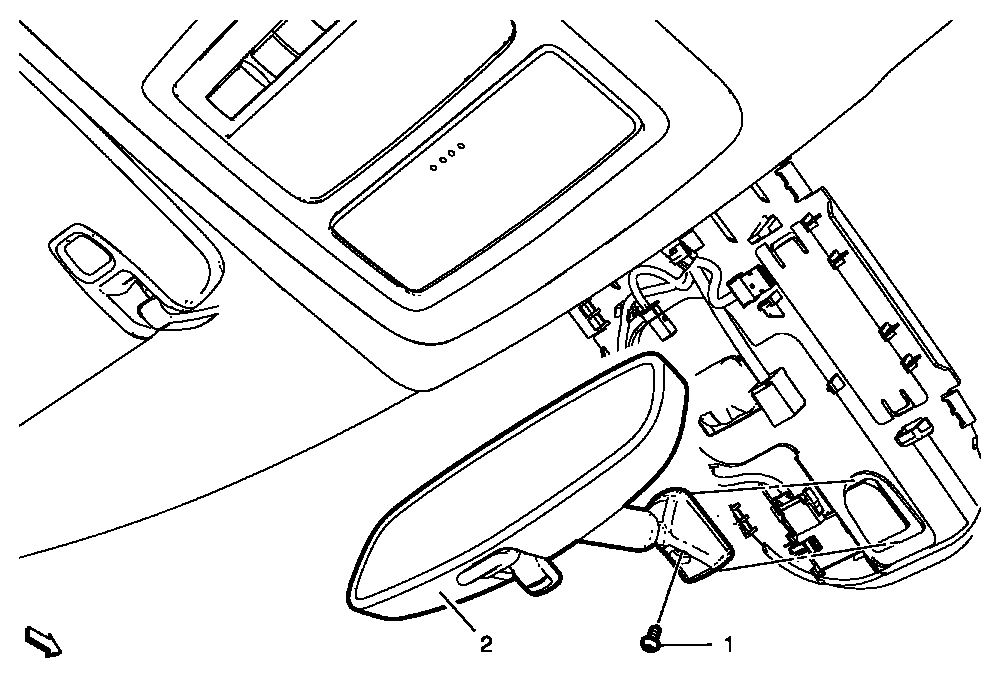

Fig 1: Inside Rearview Mirror

Courtesy of GENERAL MOTORS COMPANY

Inside Rearview Mirror Replacement

Callout	Component Name
Preliminary Procedures  Remove the windshield outside moisture sensor cover. Refer to Windshield Outside Moisture Sensor Cover Replacement .
1	Inside Rearview Mirror Screw CAUTION: Refer to Fastener Caution .
2	Inside Rearview Mirror
