Interior HVAC Components (RHD)

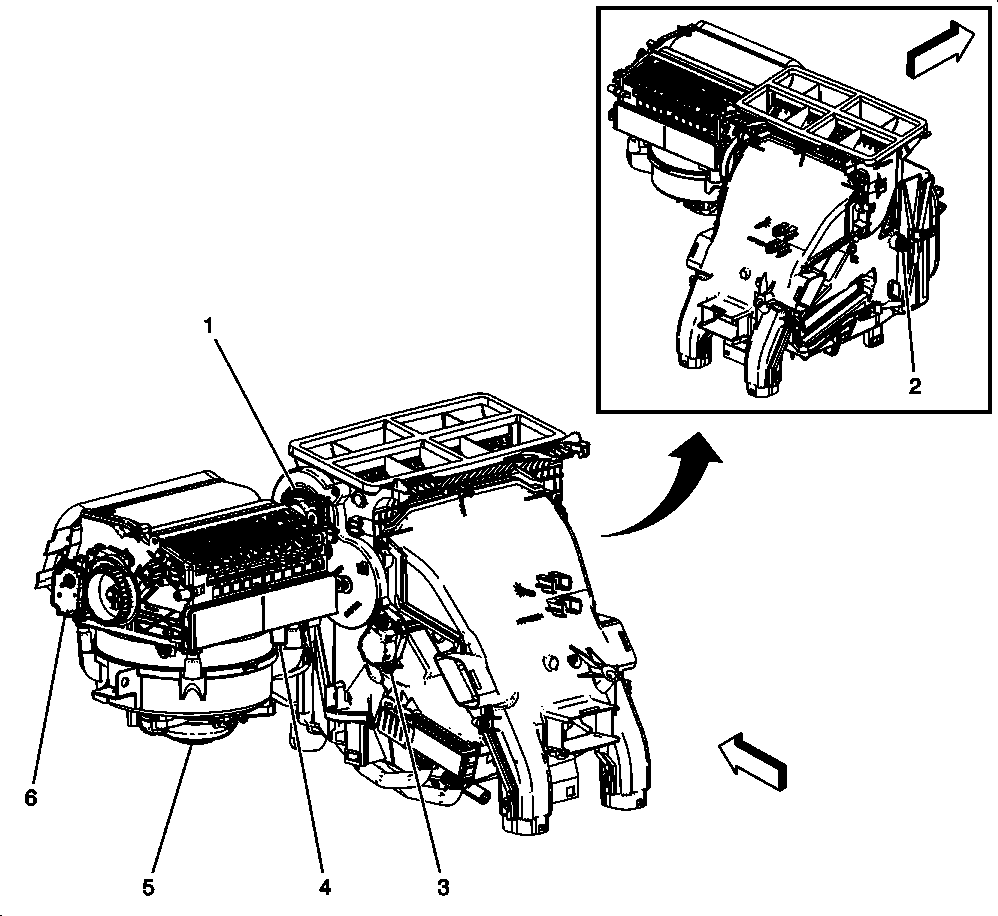

Fig 1: Interior HVAC Components (RHD)

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
1	M37 Mode Door Actuator
2	B7A Inside Air Temperature Sensor
3	M6 Air Temperature Door Actuator
4	K8 Blower Motor Control Module
5	M8 Blower Motor
6	M46 Air Recirculation Door Actuator
