Cigarette Lighter Receptacle Replacement

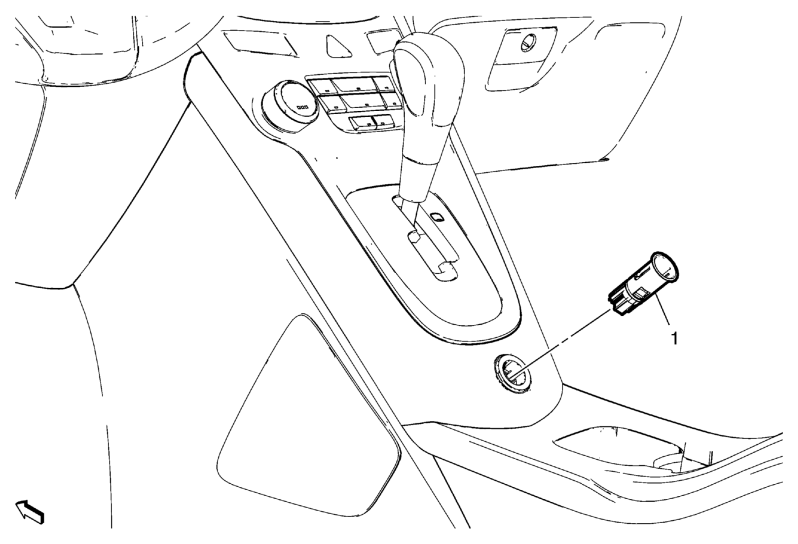

Fig 1: Cigarette Lighter Receptacle

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Special Tools BO-48871 Cigar Lighter Socket Remover For equivalent regional tools, refer to Special Tools . Preliminary Procedure Disconnect battery negative cable. Refer to Battery Negative Cable Disconnection and Connection (without Start/Stop System) . Remove cigarette lighter. Refer to Cigarette Lighter Replacement .
1	Cigarette Lighter Receptacle Procedure Disconnect electrical connectors.

Callout

Component Name

Special Tools
BO-48871 Cigar Lighter Socket Remover
For equivalent regional tools, refer to Special Tools .

Preliminary Procedure

Cigarette Lighter Receptacle
Procedure
Disconnect electrical connectors.
