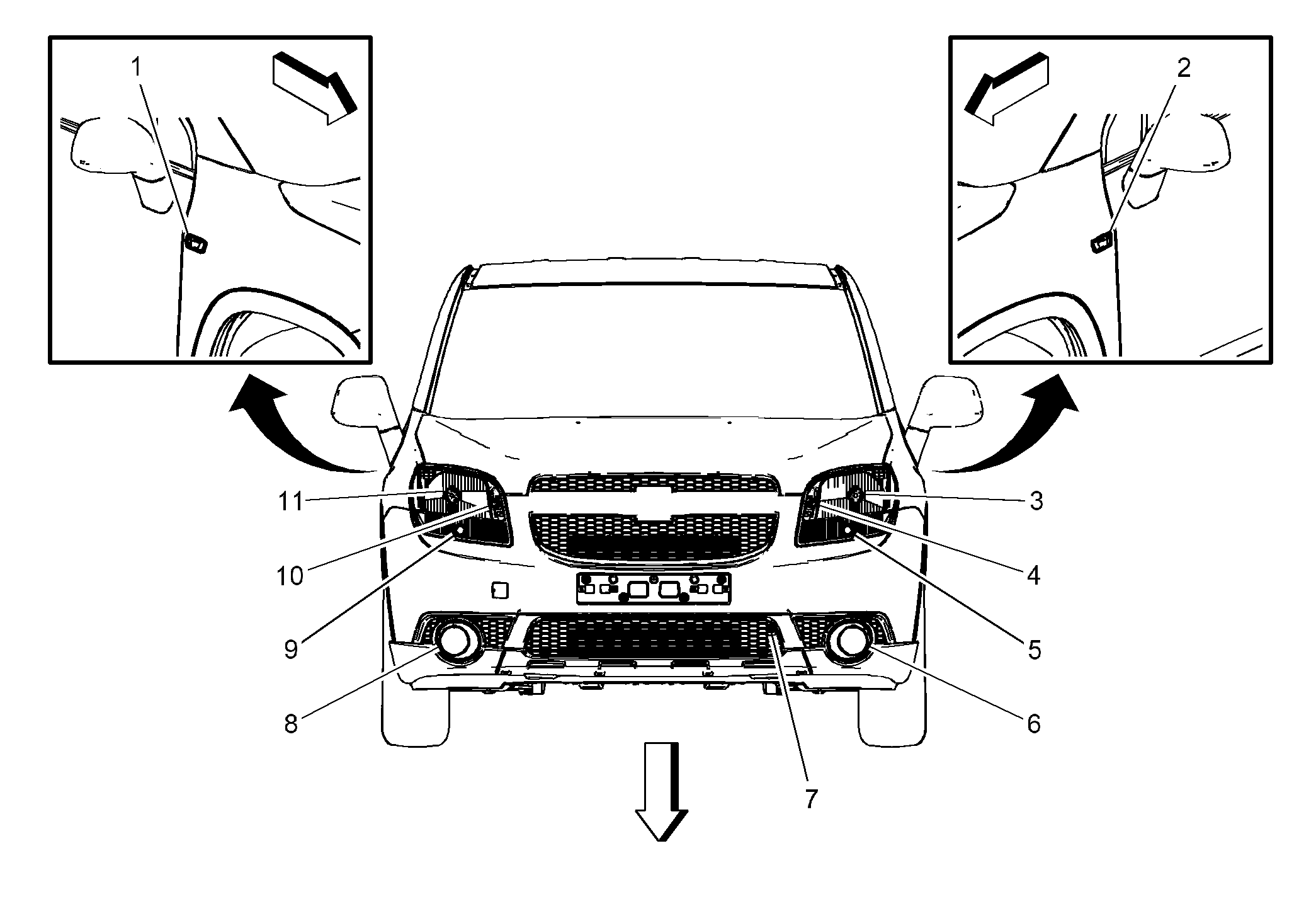

Front of the Vehicle Components
| Callout | Component Name |
|---|---|
| 1 | E4Z Turn Signal Repeater Lamp - Right |
| 2 | E4Y Turn Signal Repeater Lamp - Left |
| 3 | E4G Headlamp - Left Low Beam |
| 4 | E4E Headlamp - Left High Beam |
| 5 | E4N Park/Turn Signal Lamp - Left |
| 6 | E29LF Fog Lamp - Left Front |
| 7 | B9 Ambient Air Temperature Sensor |
| 8 | E29RF Fog Lamp - Right Front |
| 9 | E4P Park/Turn Signal Lamp - Right |
| 10 | E4F Headlamp - Right High Beam |
| 11 | E4FH Headlamp - Right LowBeam |
