Engine Components- Left Front (2H0)

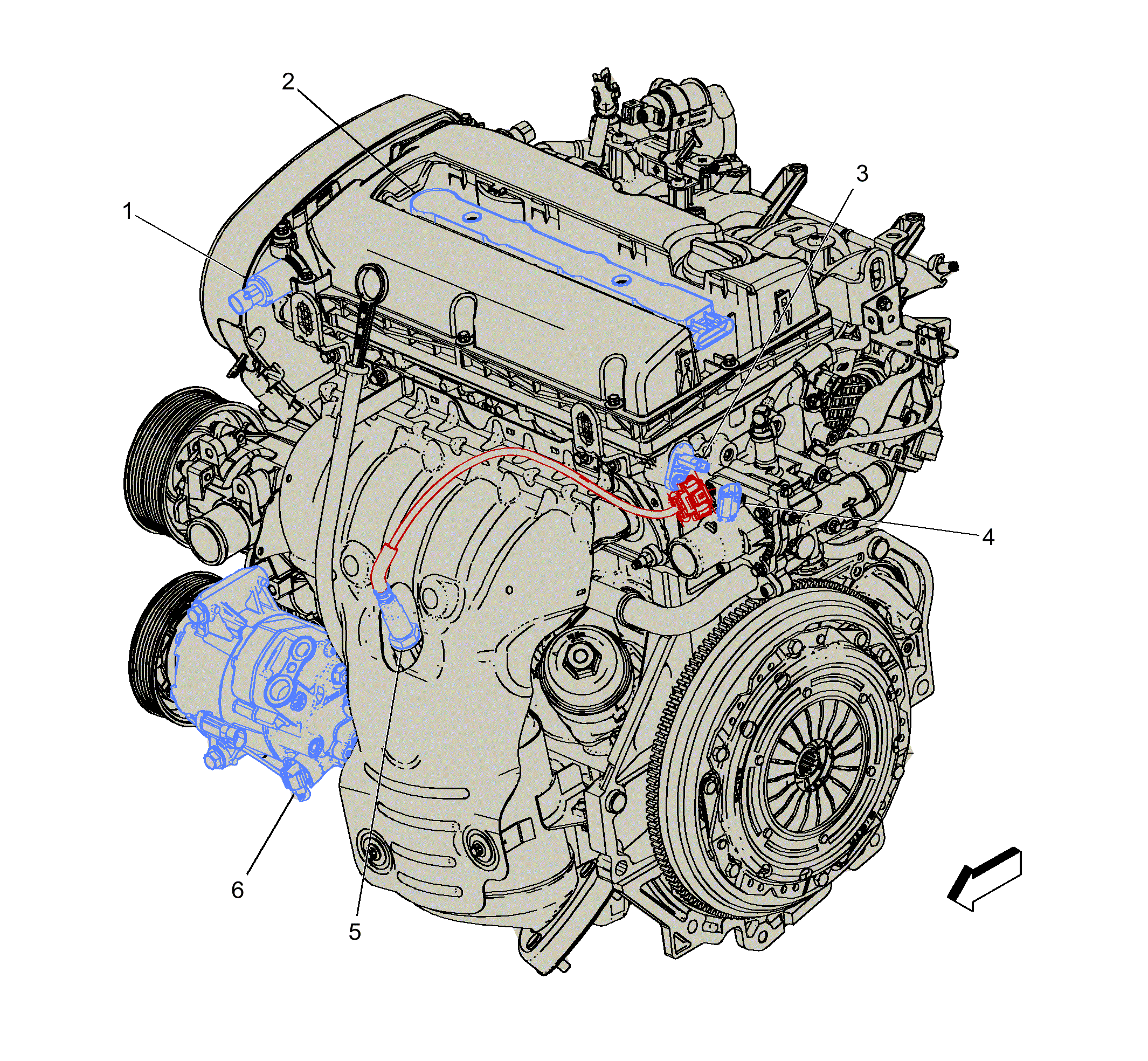

Fig 1: Left Front of Engine Components -- 1.8L (LUW)

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
1	Q6F Camshaft Position Actuator Solenoid Valve - Intake
2	T8 Ignition Coil
3	B23F Camshaft Position Sensor - Intake
4	E41 Engine Coolant Thermostat Heater
5	B52A Heated Oxygen Sensor 1
6	Q2 A/C Compressor Clutch
