Engine Components- Left Rear (LNP)

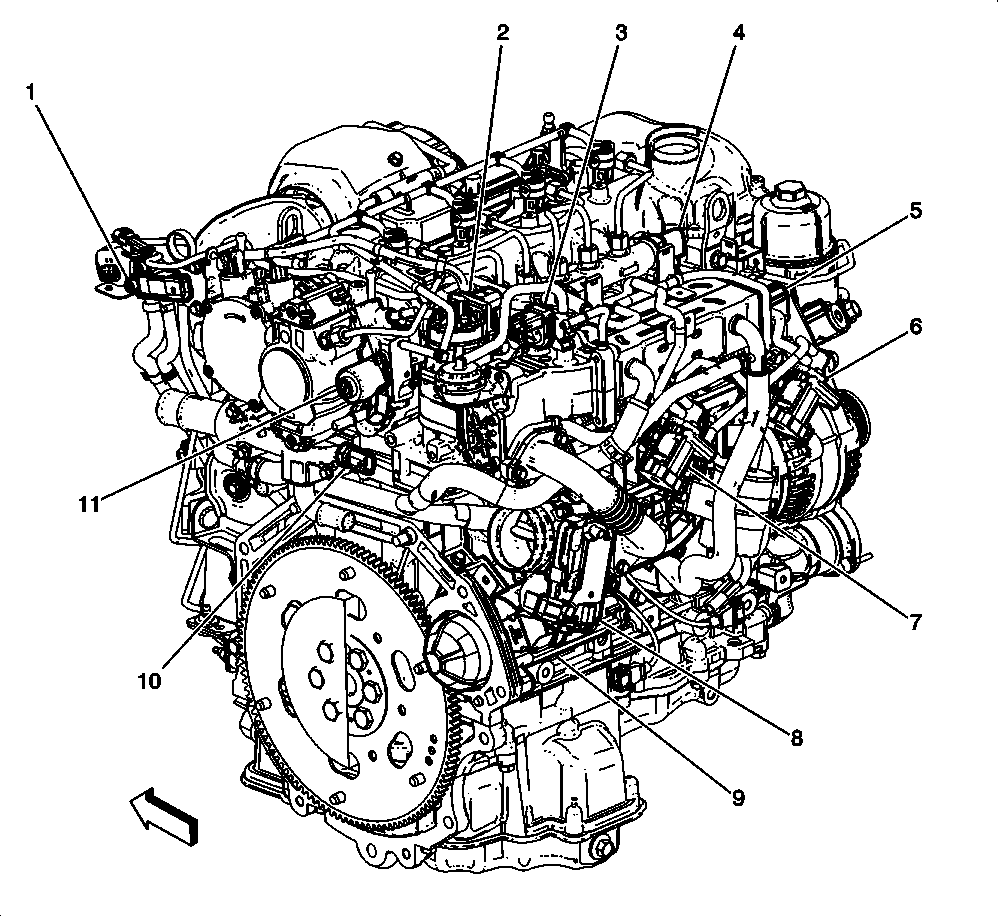

Fig 1: Left Rear Of Engine Components (LNP)
GM2485802Courtesy of GENERAL MOTORS COMPANY
Callout Component Name
1 B136 Exhaust Pressure Differential Sensor
2 Q14 Exhaust Gas Recirculation Valve
3 Q47 Exhaust Gas Recirculation Cooler Bypass Solenoid Valve
4 B47B Fuel Rail Pressure Sensor
5 B115 Vehicle Speed Sensor
6 Q41 Turbocharger Vane Position Control Solenoid Valve
7 Q22 Intake Manifold Tuning Solenoid Valve
8 Q38 Throttle Body
9 M64 Starter Motor
10 B34 Engine Coolant Temperature Sensor
11 Q18 Fuel Pressure Regulator
