3rd Row Seat Shoulder Belt Buckle Replacement

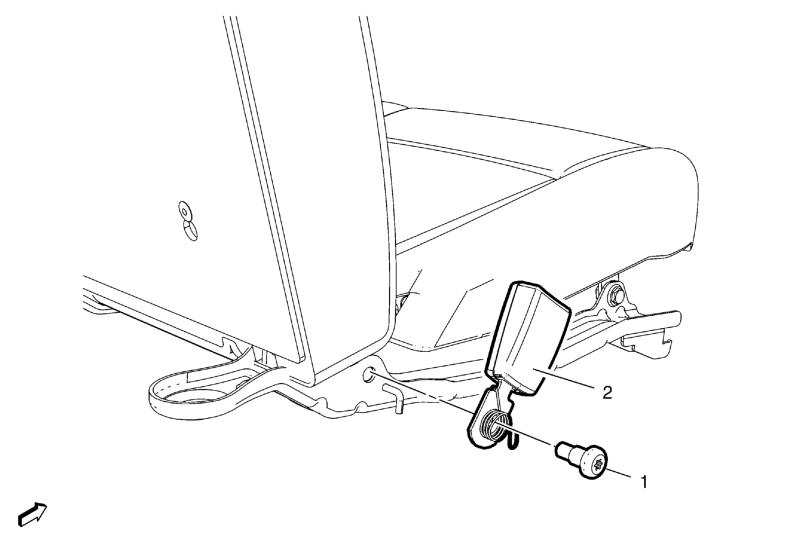

Fig 1: 3rd Row Seat Shoulder Belt Buckle

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedures Remove the rear number 2 seat. Refer to 3rd Row Seat Replacement .
1	Rear Seat Number 2 Shoulder Belt Buckle Bolt CAUTION: Refer to Fastener Caution . Tighten 45 N.m (33 lb ft)
2	Rear Seat Number 2 Shoulder Belt Buckle
