Shoulder Belt Replacement - Rear

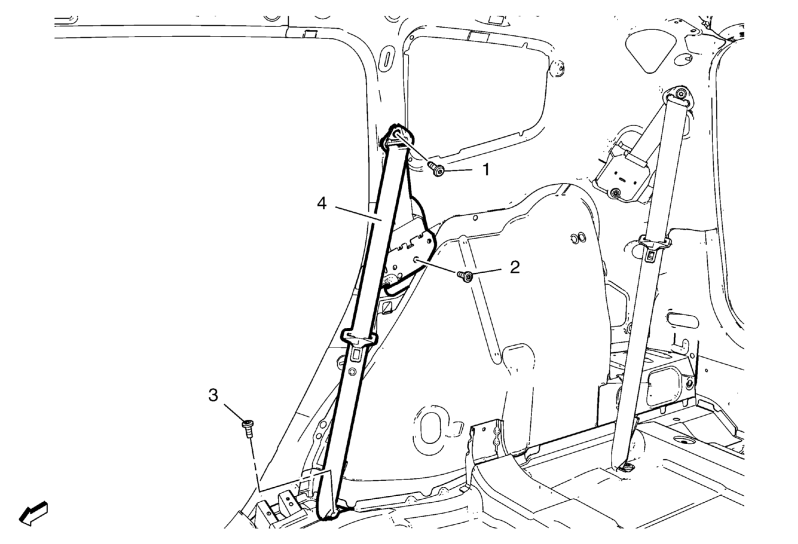

Fig 1: Shoulder Belt Components - Rear

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
WARNING: Refer to SIR Warning in the Preface section. WARNING: In order to prevent accidental deployment and the risk of personal injury, do not dispose of an undeployed inflatable restraint seat belt pretensioner as normal shop waste. Undeployed seat belt pretensioners contain substances that could cause severe illness or personal injury if their sealed containers are damaged during disposal. Use the following deployment procedures to safely dispose of an undeployed seat belt pretensioner. Failure to observe the following disposal methods may be a violation of federal, state, or local laws. WARNING: Refer to SIR Seatbelt Pretensioner Handling Warning in the Preface section. Preliminary Procedures Remove the body side trim panel. Refer to Body Side Trim Panel Replacement - Left Side , and/or Body Side Trim Panel Replacement - Right Side .
1	Rear Seat Shoulder Belt Guide Bolt CAUTION: Refer to Fastener Caution . Tighten 45 N.m (33 lb ft)
2	Rear Seat Shoulder Belt Retractor Bolt Tighten 45 N.m (33 lb ft)
3	Rear Seat Shoulder Belt Anchor Plate Bolt Tighten 45 N.m (33 lb ft)
4	Rear Seat Shoulder Belt
