Front Compartment Splash Shield Replacement

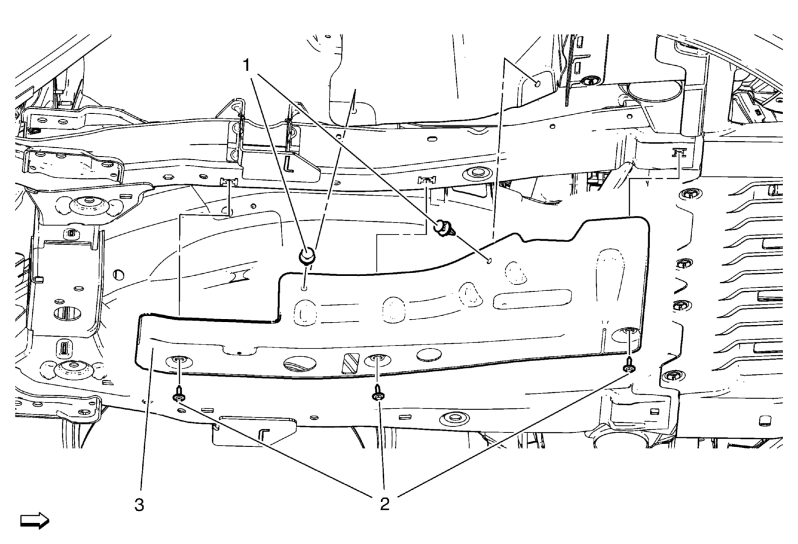

Fig 1: Identifying Front Compartment Splash Shield, Retainers And Bolts

Courtesy of GENERAL MOTORS COMPANY

Front Compartment Splash Shield Replacement

Callout	Component Name
1	Front Compartment Splash Shield Retainer (Qty: 2)
2	Front Compartment Splash Shield Bolt (Qty: 3) CAUTION: Refer to Fastener Caution . Tighten  3 N.m (27 lb in)
3	Front Compartment Splash Shield
