Steering Wheel Secondary/Configurable Control Wiring Schematics
›
Steering Wheel Controls
Steering Wheel Controls

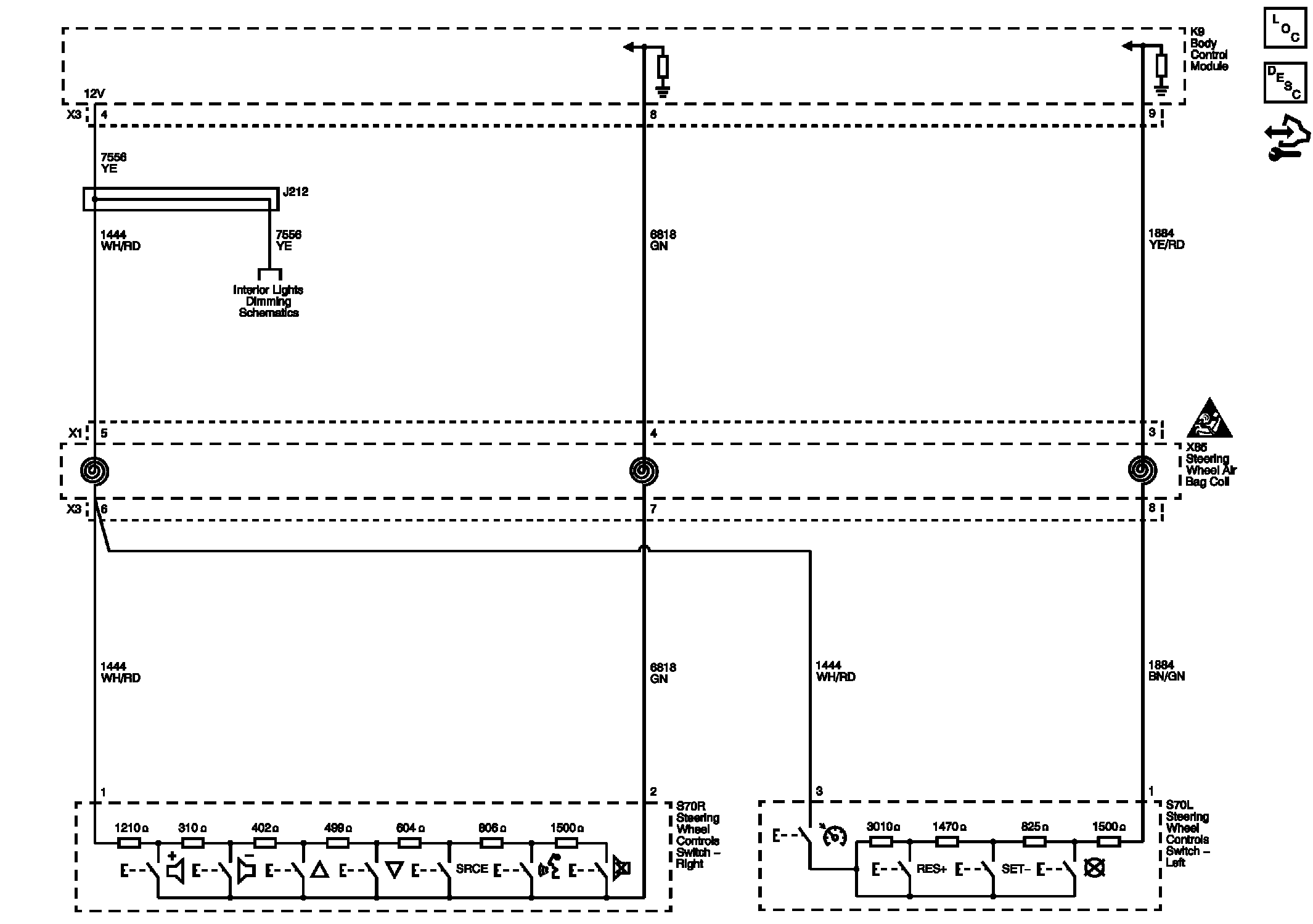

Fig 1: Steering Wheel Controls Wiring Schematic
Courtesy of GENERAL MOTORS COMPANY
Courtesy of GENERAL MOTORS COMPANY
