Driver Door Components

Component Name	Callout
A23D Door Latch Assembly - Driver	1
A9A Outside Rearview Mirror - Driver (DG6)	2
S52 Outside Rearview Mirror Switch (DG6)	3
P19AG Speaker - Left Front Door	4
M74D Window Motor - Driver (AXG)	5
S79D Window Switch - Driver (AXG)	6

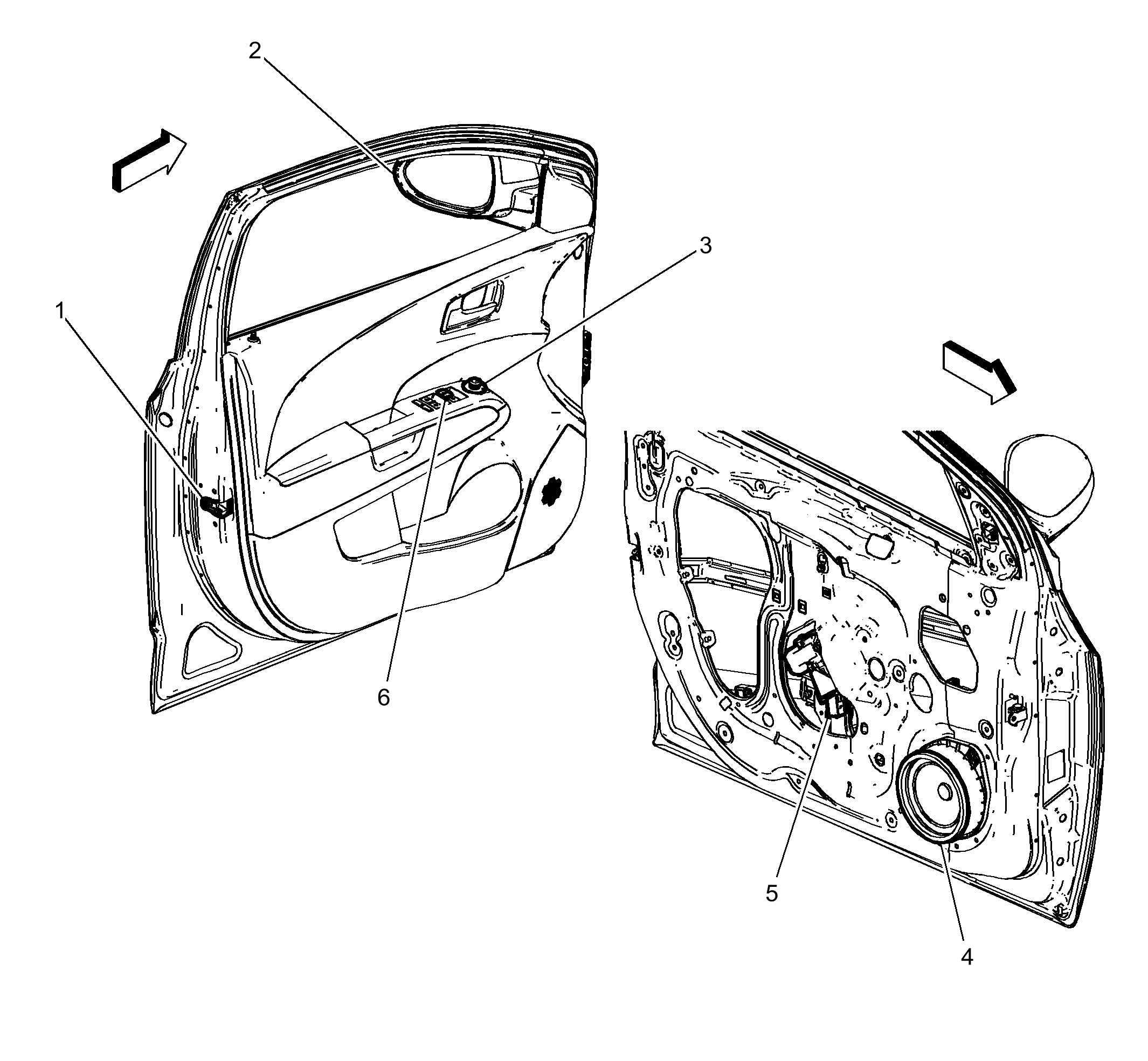

Fig 1: Driver Door Components

Courtesy of GENERAL MOTORS COMPANY
