Front Floor Console Multifunction Switch Replacement

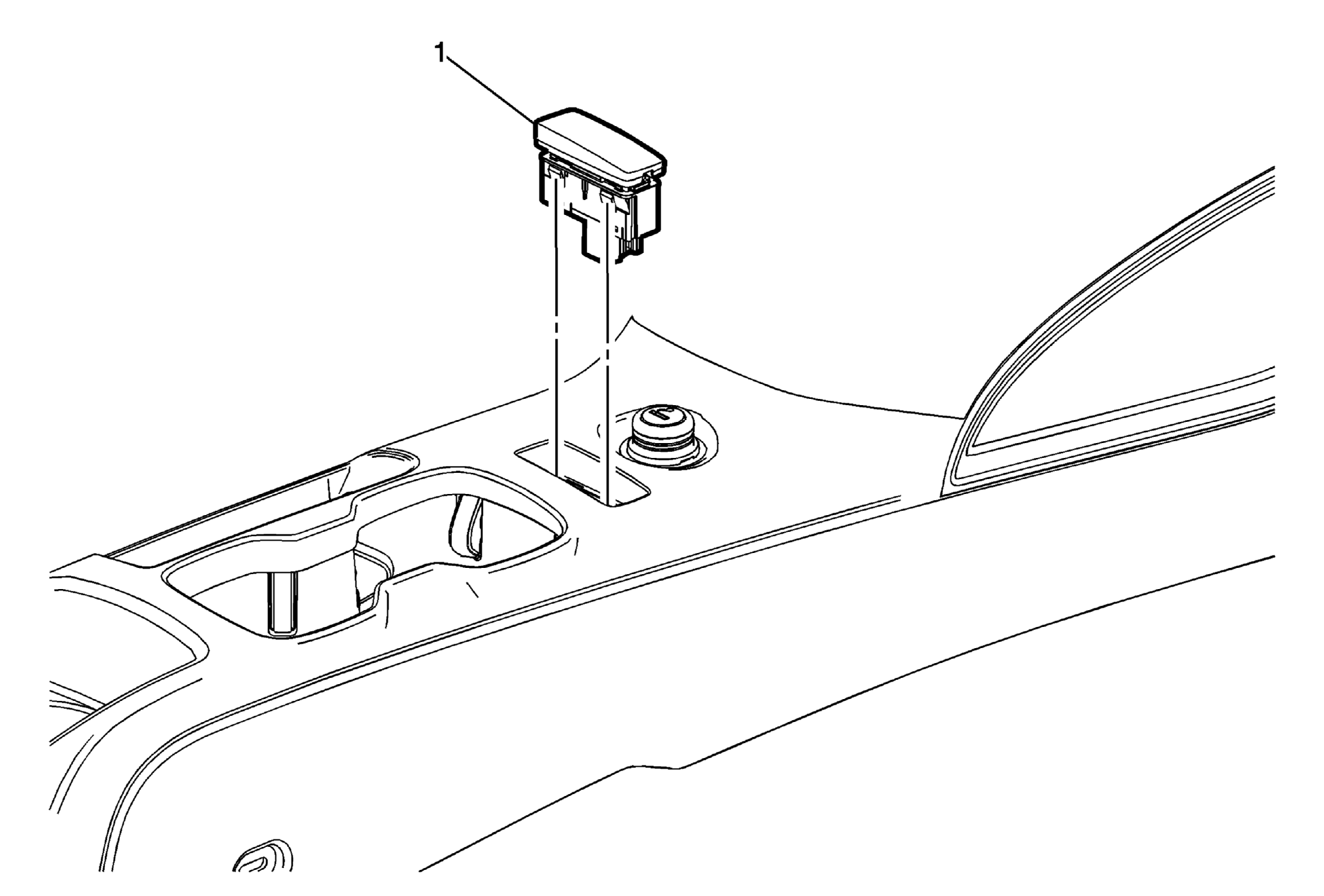

Fig 1: Front Floor Console Multifunction Switch

Courtesy of GENERAL MOTORS COMPANY

Front Floor Console Multifunction Switch Replacement

Callout	Component Name
Preliminary Procedure  Remove the front floor console. Refer to Front Floor Console Replacement
1	Accessory Switch Disconnect electrical connector. Depressing four tabs, remove switch forward of console.
