Air Cleaner Element Replacement
Air Cleaner Element Replacement

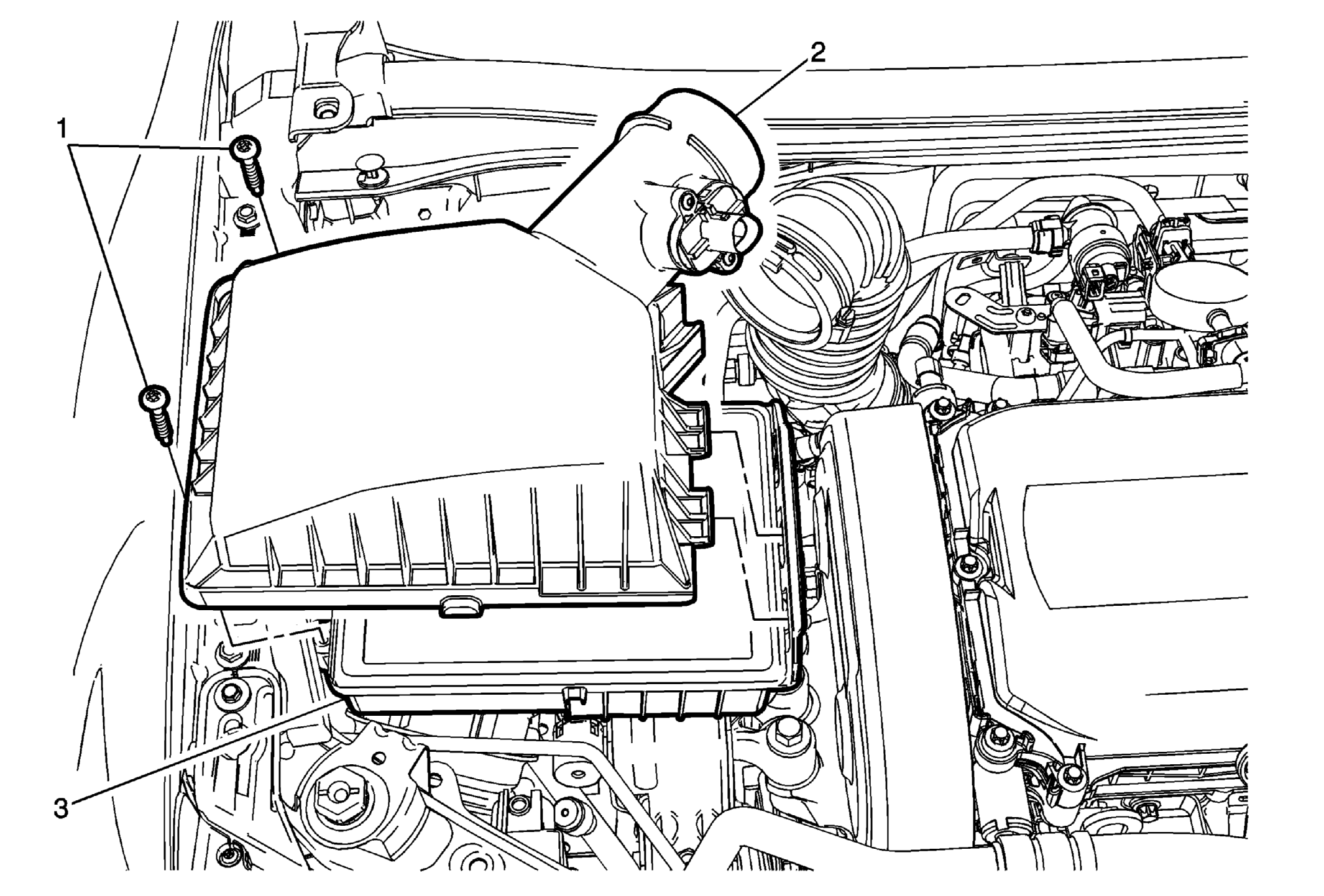

| Callout | Component Name |
|---|---|
| Preliminary Procedure Remove the air cleaner outlet duct. Refer to Air Cleaner Outlet Duct Replacement . |
|
| 1 | Air Cleaner Housing Fasteners (Qty 2)
CAUTION:
Refer to Fastener Caution . Tighten 5 N.m(44 lb in) |
| 2 | Air Cleaner Housing Procedure Disconnect the electrical wiring harness connector from the Mass Airflow Sensor. |
| 3 | Air Cleaner Element |
