Camshaft Position Sensor Replacement

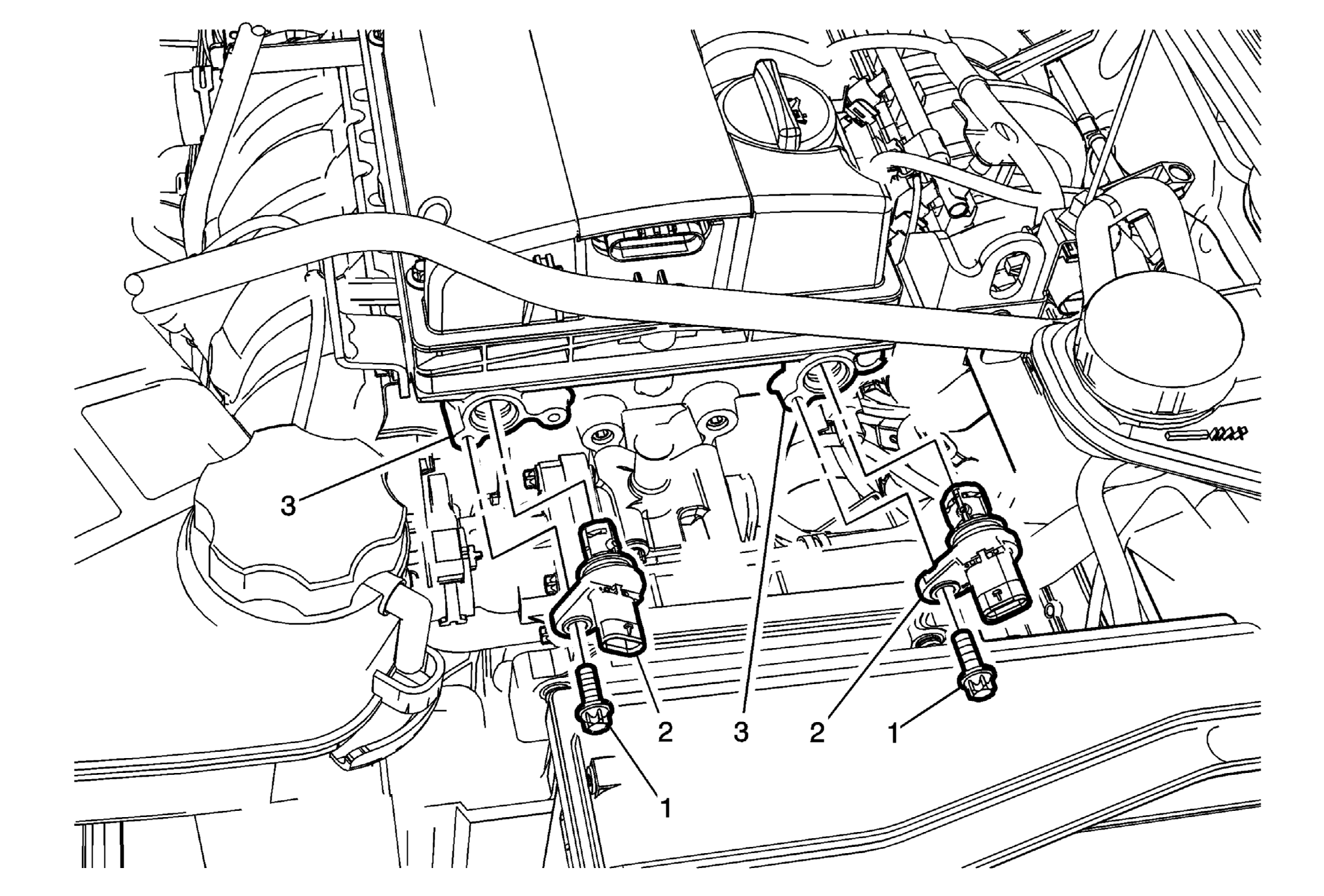

Fig 1: Camshaft Position Sensor

Courtesy of GENERAL MOTORS COMPANY

Camshaft Position Sensor Replacement

Callout	Component Name
1	Camshaft Position Sensor Fastener CAUTION: Refer to Fastener Caution . Tighten  6 N.m (54 lb in)
2	Camshaft Position Sensor Procedure  Disconnect electrical wiring harness connector from the camshaft position sensor.
3	Remove the Camshaft Position Sensor Seal Ring
