Installation Procedure

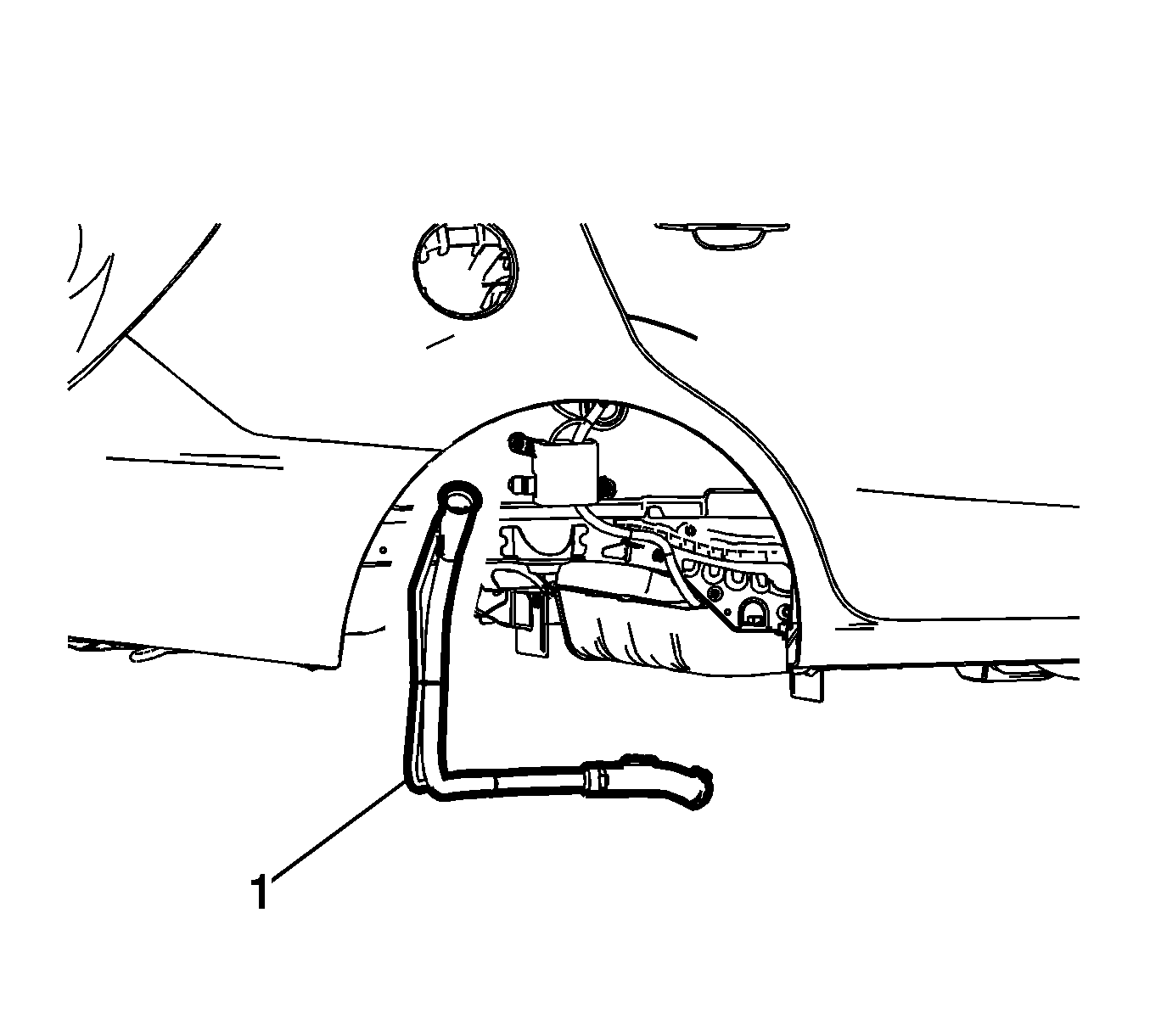

    Fig 1: Fuel Tank Filler Pipe
    GM2498418Courtesy of GENERAL MOTORS COMPANY
  1. Install the fuel tank filler pipe (1).

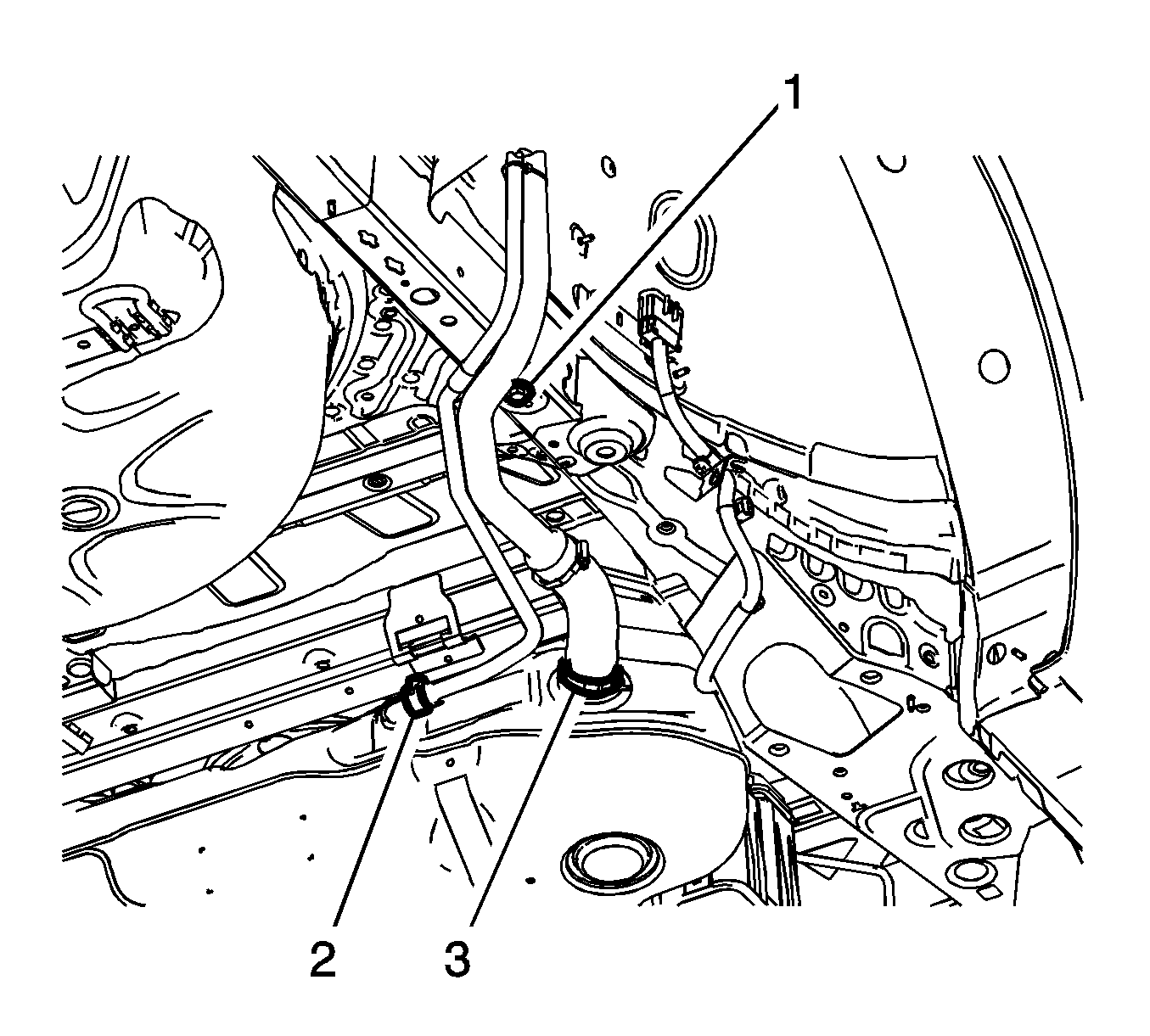

    2. Fig 2: Fuel Tank Filler Pipe Bracket Fastener, Vent Hose Clamp & Filler Pipe Hose Clamp
    GM2597399Courtesy of GENERAL MOTORS COMPANY
    CAUTION:

    Refer to Fastener Caution .

  2. Tighten hose clamp (3) to 4 N.m(35 lb in).
  3. Install the vent hose clamp (2) and vent hose.
  4. Tighten the filler pipe bracket fastener (1) to 9 N.m(89 lb in).

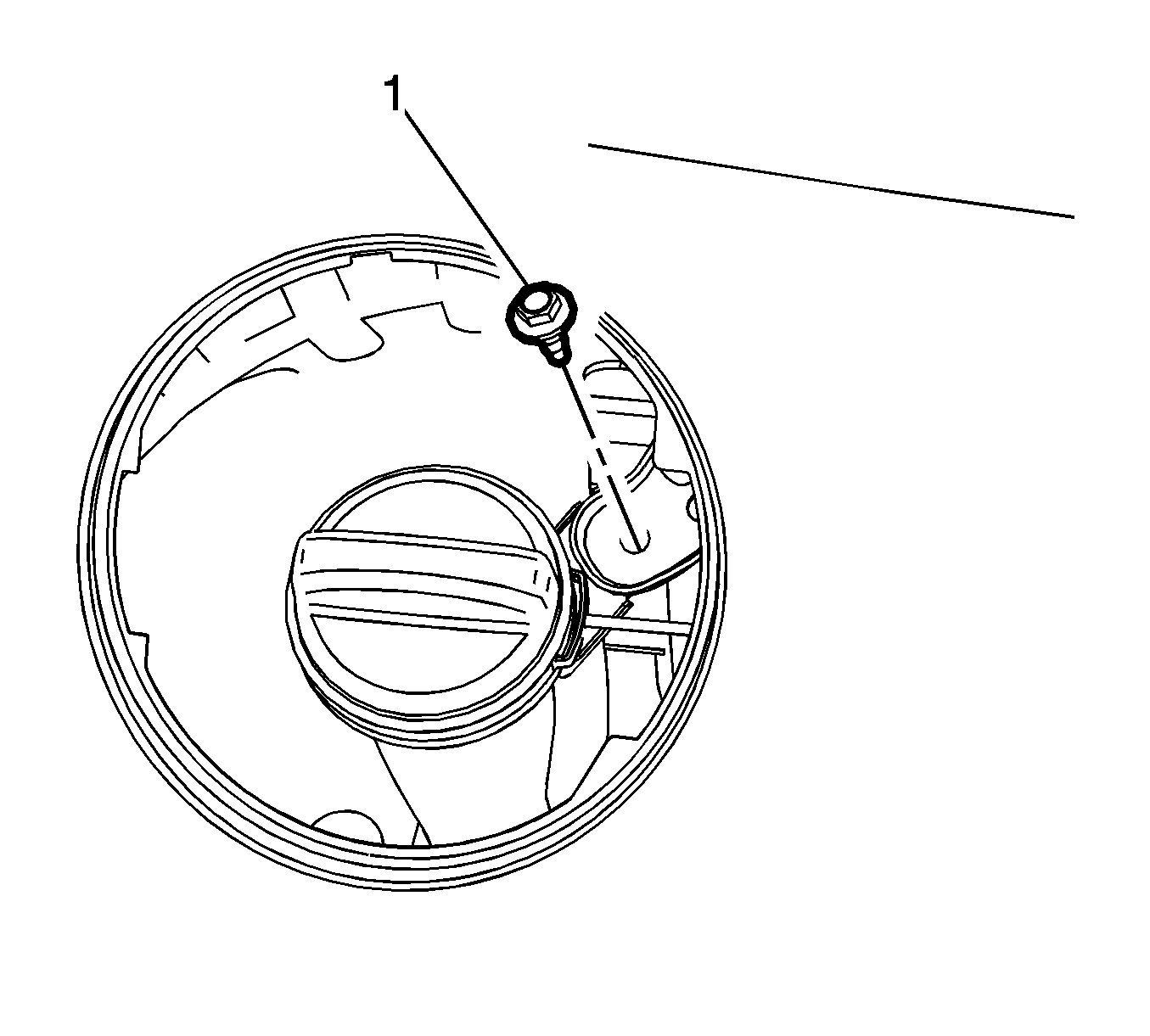

    5. Fig 3: Fuel Filler Door Housing Bracket Fastener
    GM2498413Courtesy of GENERAL MOTORS COMPANY
  5. Install the bracket fastener (1) and tighten to 9 N.m(89 lb in).
  6. Install the fuel filler door housing. Refer to Fuel Tank Filler Door Latch Housing Replacement .
