Sonic LS, 4D Hatchback, Automatic Trans
›
Repair and Diagnosis
›
Engine Performance
›
System
›
Data Communications System
›
Wiring Schematics
›
Data Communication Wiring Schematics
›
Data Link Power, Ground, and Low Speed GMLAN
Data Link Power, Ground, and Low Speed GMLAN

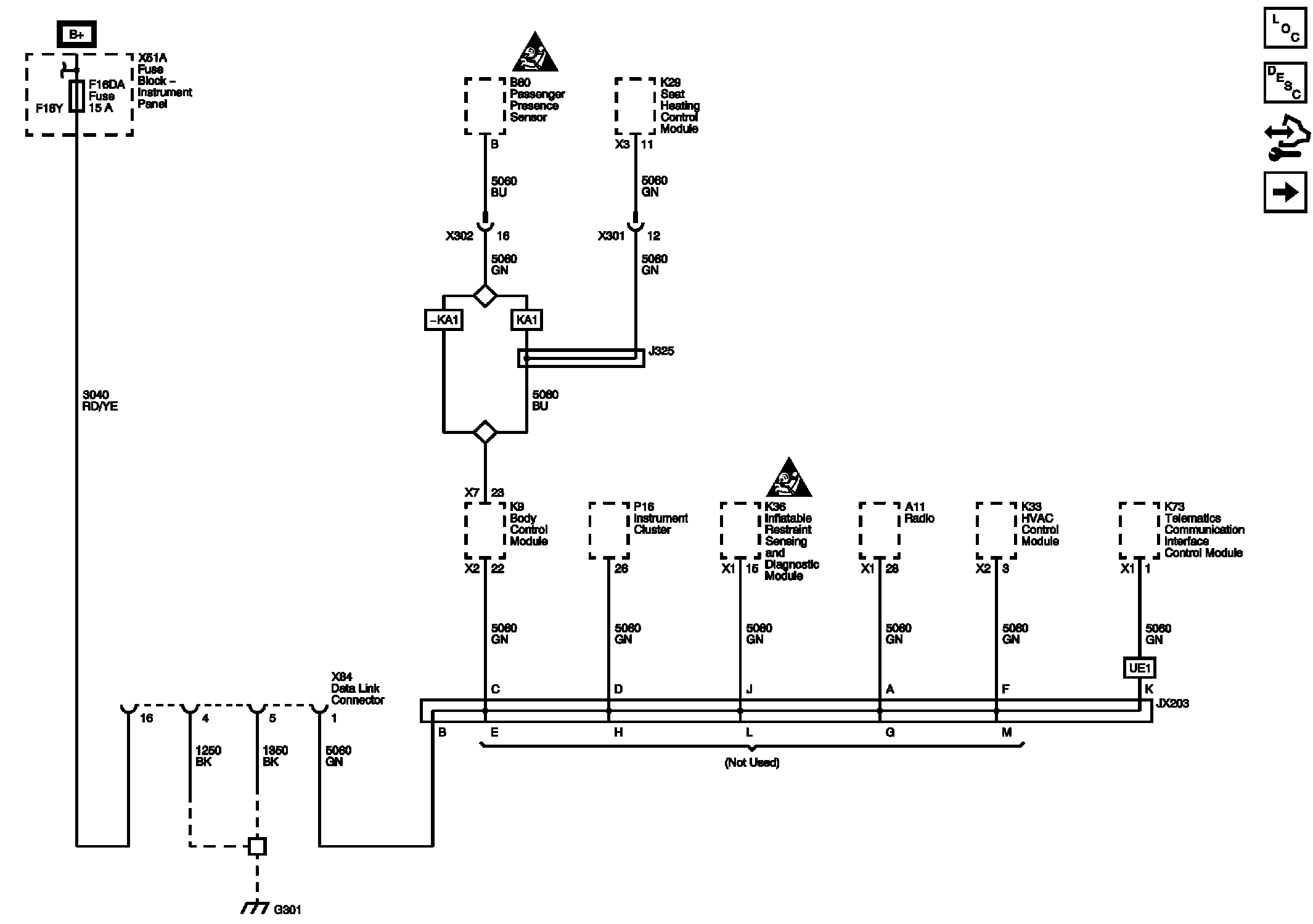

Fig 1: Data Link Power, Ground, and Low Speed GMLAN Wiring Schematic
Courtesy of GENERAL MOTORS COMPANY
Courtesy of GENERAL MOTORS COMPANY
