High Speed GMLAN Bus 1 (1 of 2)

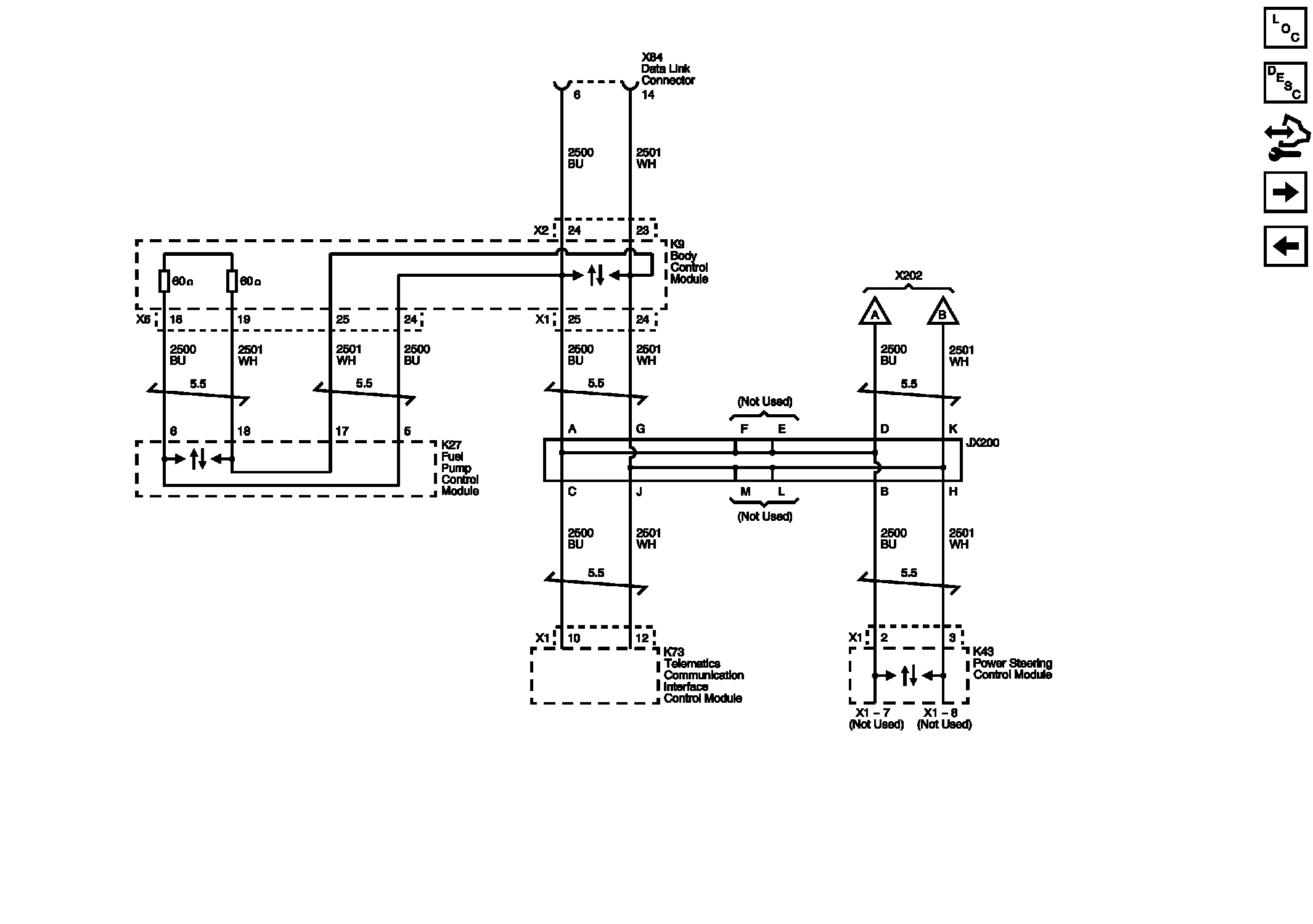

Fig 1: High Speed GMLAN Bus 1 Wiring Schematic (1 of 2)
GM2592140Courtesy of GENERAL MOTORS COMPANY
