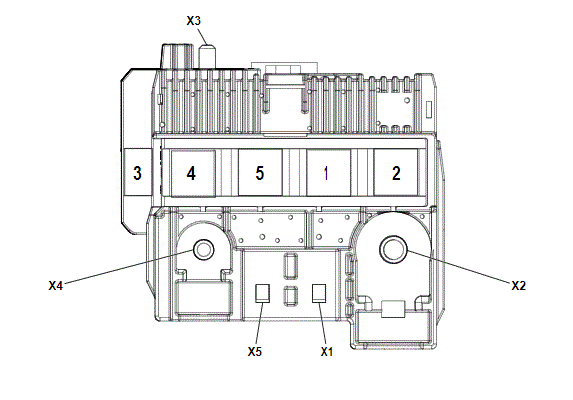

X50D Fuse Block - Battery, Top View
X50D FUSE BLOCK - BATTERY FUSE IDENTIFICATION
| No. | Device Name | Device Assigned Name | Rating | Description |
|---|---|---|---|---|
| 1 | - | F1BA Fuse | 80A | K43 Power Steering Control Module |
| 2 | - | F2BA Fuse | 400A | G13 Generator and M64 Starter Motor |
| 3 | - | F3BA Fuse | 80A | X51A Fuse Block - Instrument Panel |
| 4 | - | F4BA Fuse | 150A | X50A Fuse Block - Underhood |
| 5 | - | F5BA Fuse | 80A | Not Used |
