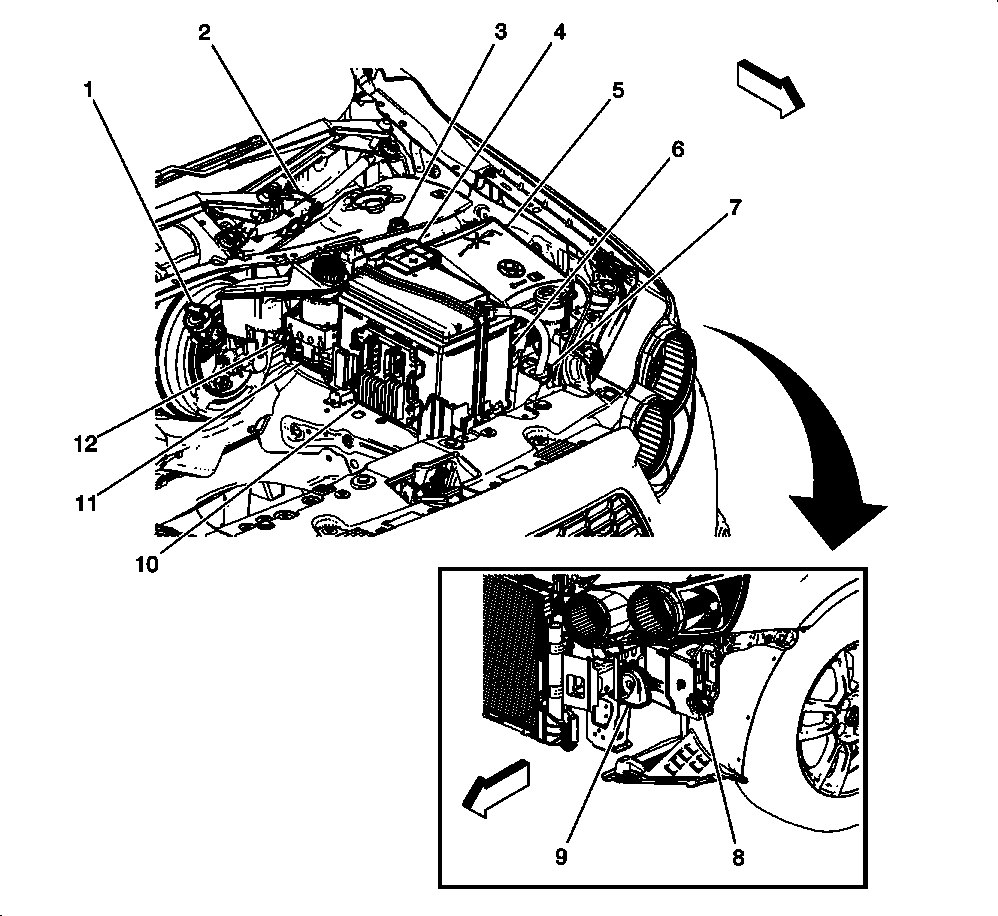

Left of Engine Compartment Components
Left of Engine Compartment Components
| Component Name | Callout |
|---|---|
| B19C Brake Booster Vacuum Switch | 1 |
| M75 Windshield Wiper Motor | 2 |
| X90 Assembly Plant ABS Data Connector | 3 |
| X50D Fuse Block- Battery | 4 |
| X50A Fuse Block- Underhood | 5 |
| C1 Battery | 6 |
| B18 Battery Current Sensor | 7 |
| G24 Windshield Washer Pump | 8 |
| P12 Horn | 9 |
| K20 Engine Control Module | 10 |
| K17 Electronic Brake Control Module | 11 |
| B20 Brake Fluid Level Switch | 12 |
