Installation Procedure

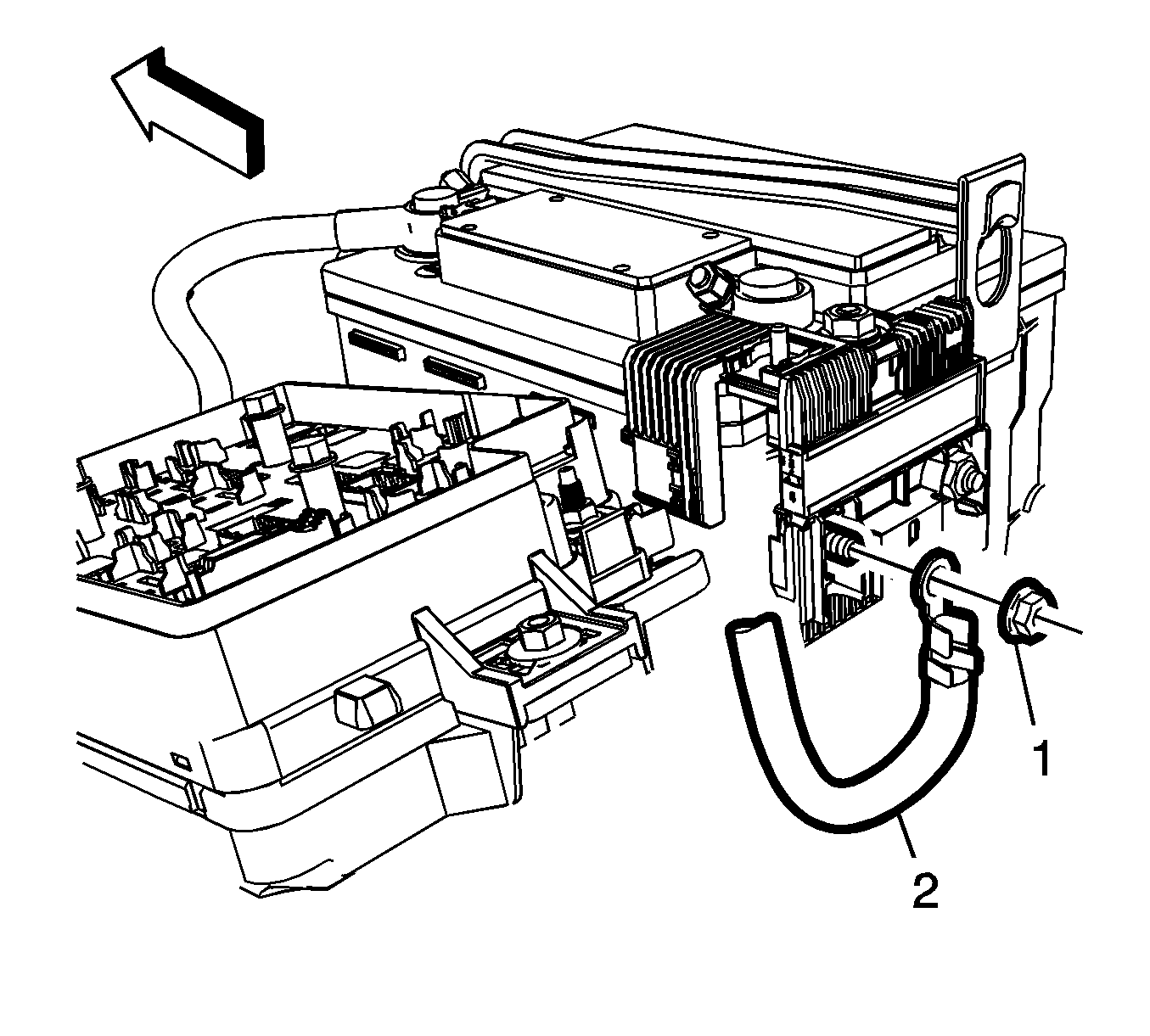

    Fig 1: Battery Positive Cable & Nut
    GM2498506Courtesy of GENERAL MOTORS COMPANY
    CAUTION:

    Refer to Fastener Caution .

  1. Install the battery positive cable (2) to the battery positive cable junction block and tighten nut (1) to 7 N.m (62 lb in).

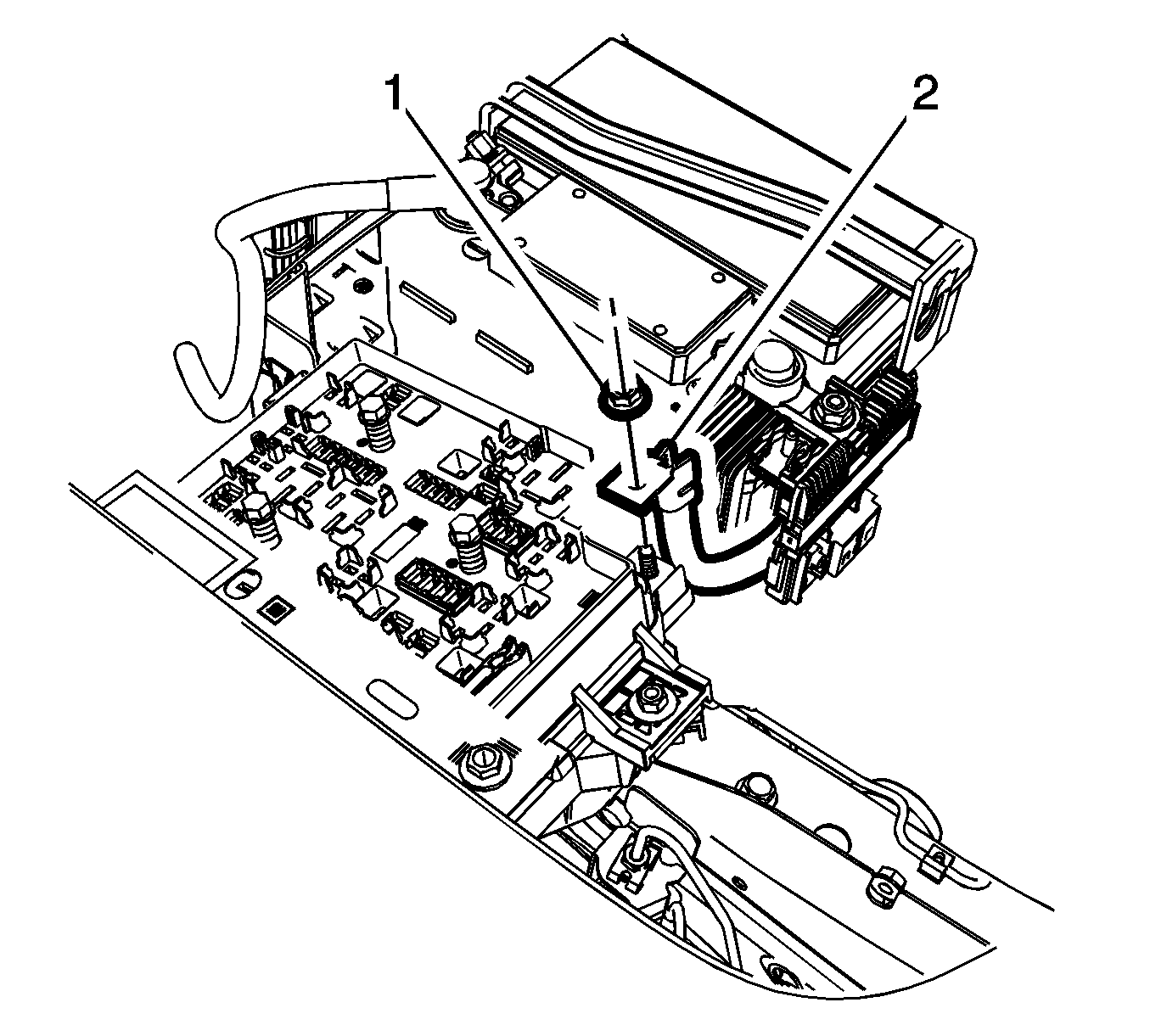

    2. Fig 2: Battery Positive Cable & Nut
    GM2498504Courtesy of GENERAL MOTORS COMPANY
  2. Install the battery positive cable (2) to the underhood fuse block and tighten nut (1) to 7 N.m (62 lb in).
  3. Install the underhood fuse block cover.
  4. Connect the negative battery cable. Refer to Battery Negative Cable Disconnection and Connection .
