Installation Procedure

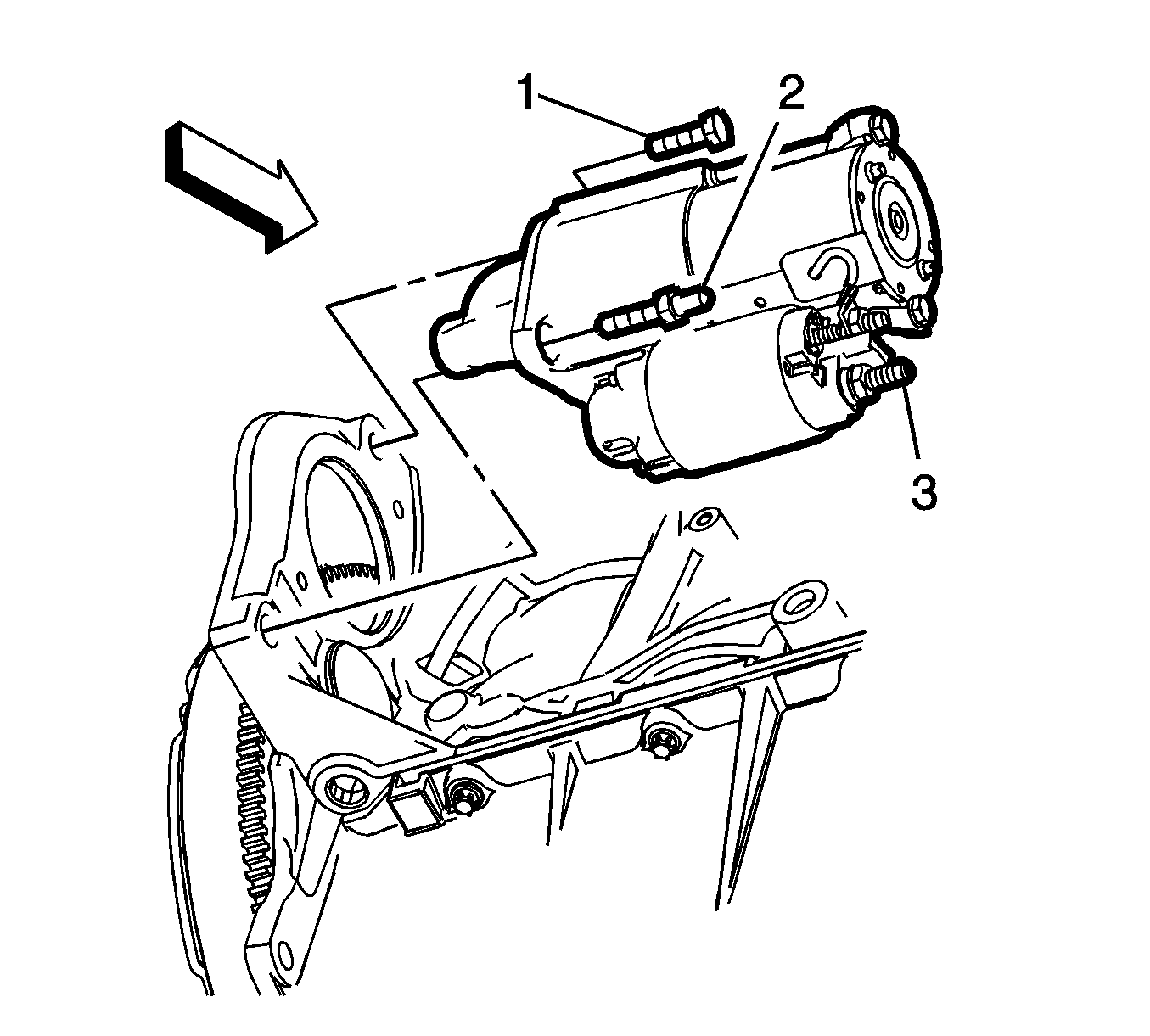

Fig 1: Starter & Mounting Fastener

Courtesy of GENERAL MOTORS COMPANY

CAUTION:

Install the starter (3) into position and tighten the starter mounting fastener (1) to 25 N.m (18 lb ft).

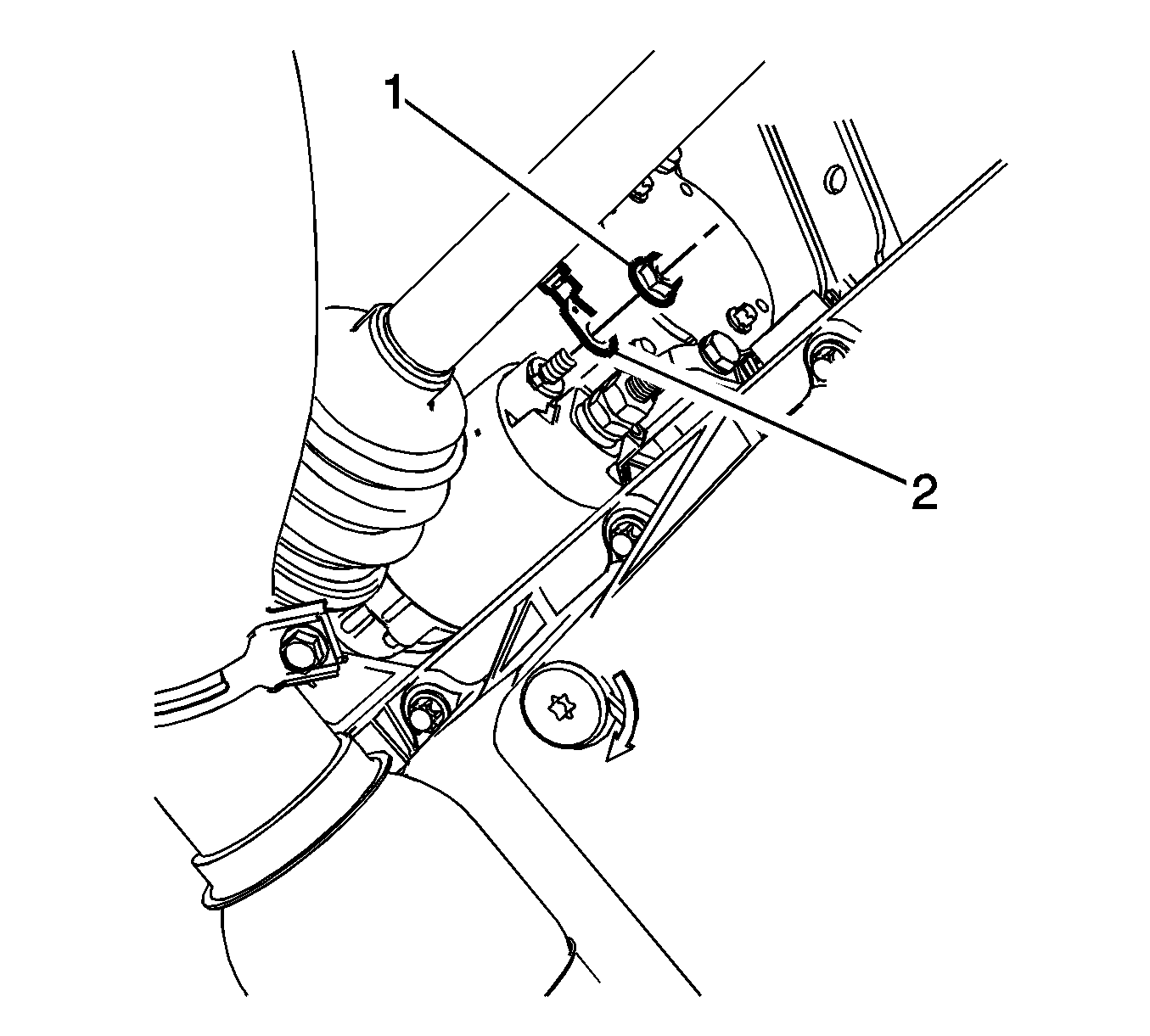

Fig 2: Starter Solenoid Fastener & Engine Harness Terminal

Courtesy of GENERAL MOTORS COMPANY

Install the engine harness terminal (2) to the starter solenoid and tighten the solenoid fastener (1) to 9 N.m (80 lb in).

Fig 3: Battery Cables & Fasteners

Courtesy of GENERAL MOTORS COMPANY

Install the battery negative cable terminal and the starter mounting stud/fastener (1) to the starter. Tighten to 25 N.m (18 lb ft).
Install the positive battery cable terminal to the starter solenoid and tighten the fastener (2) to 9 N.m (80 lb in).

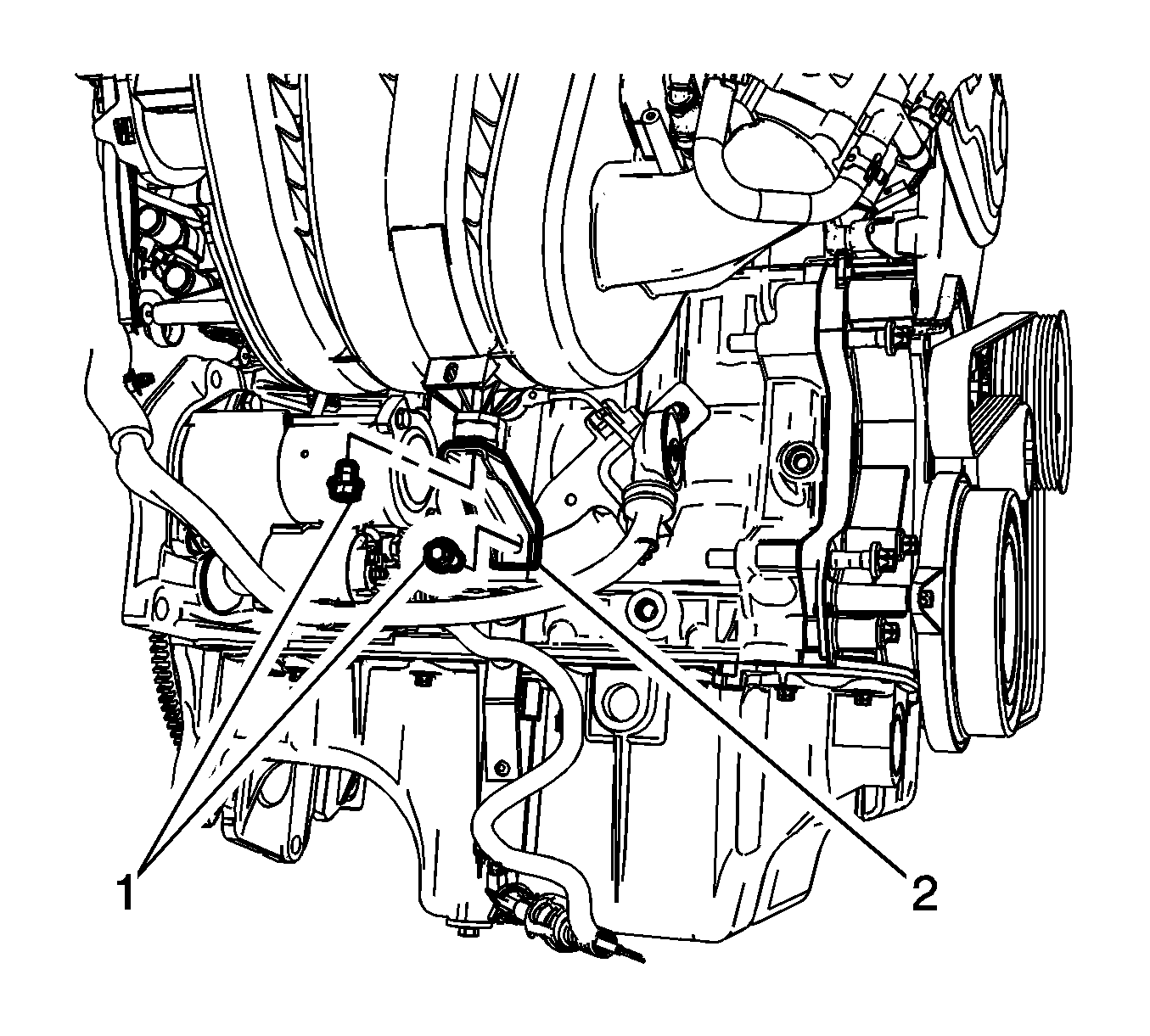

Fig 4: Intake Manifold Brace & Fasteners

Courtesy of GENERAL MOTORS COMPANY

Install the intake manifold brace (2) and mounting fasteners (1). Tighten to 8 N.m (71 lb in).
Install the drivetrain and front suspension frame skid plate. Refer to Drivetrain and Front Suspension Frame Skid Plate Replacement .
Connect the negative battery cable. Refer to Battery Negative Cable Disconnection and Connection .
