Chevrolet
›
2012
›
Sonic LS, 4D Hatchback, Standard Trans
›
Repair and Diagnosis
›
Engine Performance
›
System
›
Data Communications System
›
Wiring Schematics
›
Body Control System Wiring Schematics
›
Subsystem References (4 of 5)
Subsystem References (4 of 5)

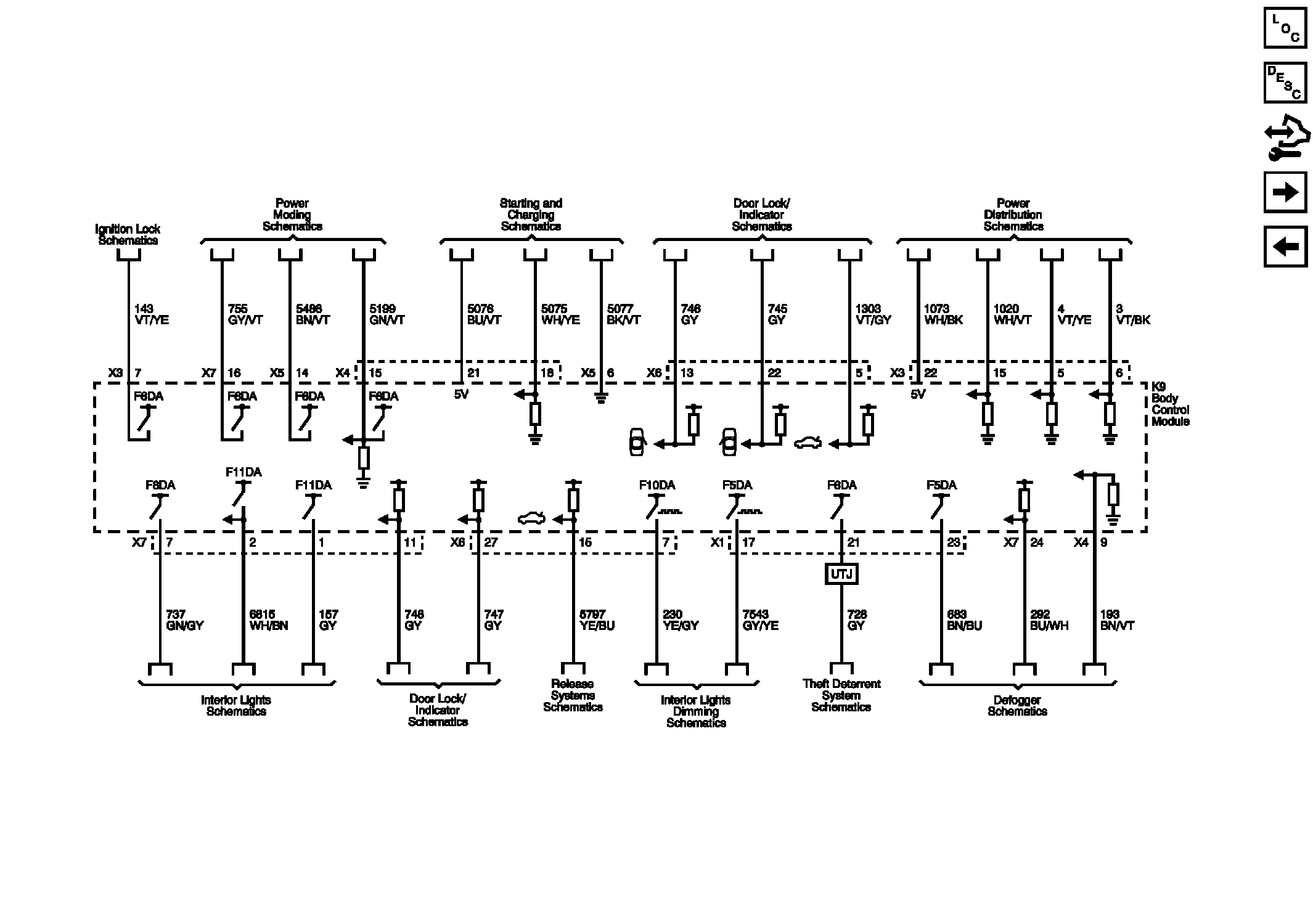

Fig 1: Subsystem References Wiring Schematic (4 of 5)
Courtesy of GENERAL MOTORS COMPANY
Courtesy of GENERAL MOTORS COMPANY
