Barometric Pressure Sensor Replacement

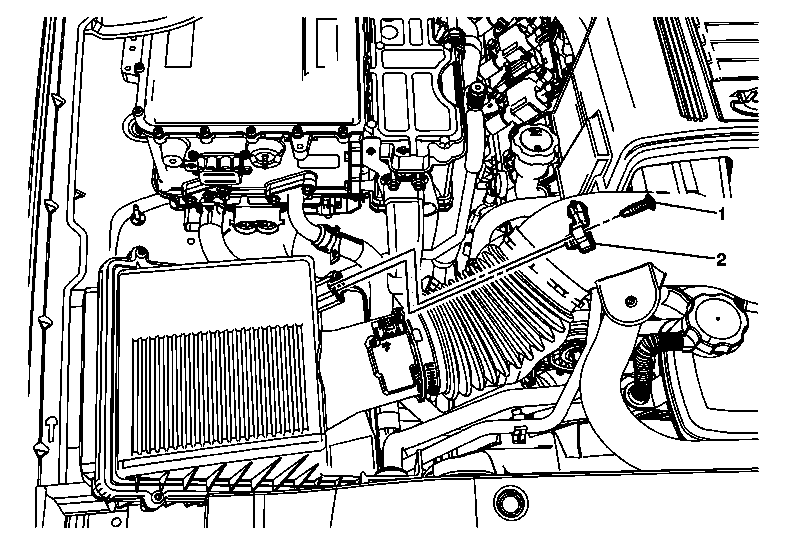

Fig 1: Barometric Pressure Sensor

Courtesy of GENERAL MOTORS COMPANY

Barometric Pressure Sensor Replacement

Callout	Component Name
Preliminary Procedure  Disconnect the BARO sensor harness connector.
1	Barometric Pressure Sensor Fastener CAUTION: Refer to Fastener Caution . Tighten  10 N.m (89 lb in)
2	Barometric Pressure Sensor
