Front Side Door Window Rear Channel Replacement

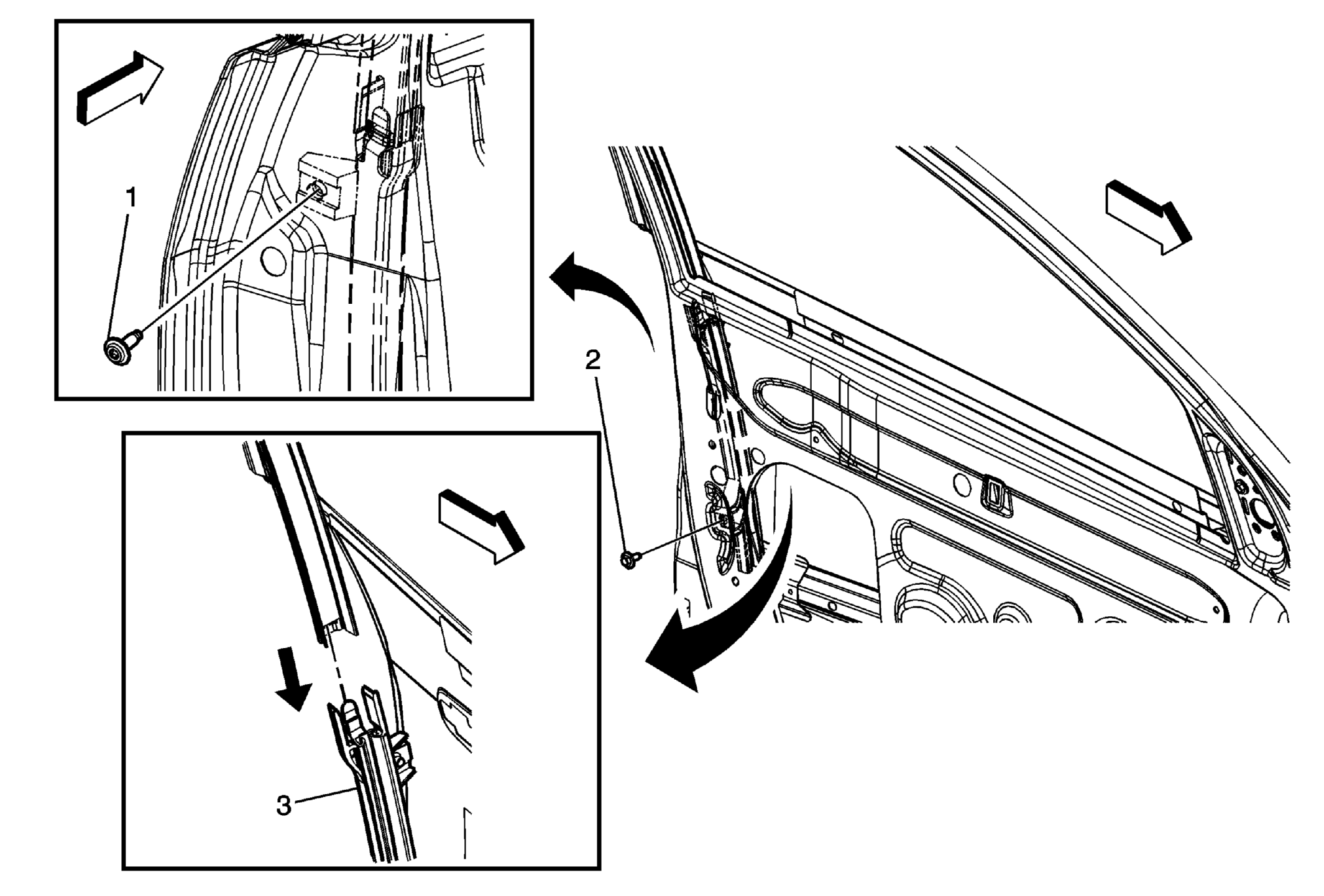

Fig 1: Identifying Front Side Door Window Rear Channel

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedures Remove the interior trim panel. Refer to Front Side Door Trim Panel Replacement - Left Side (Traverse) , Front Side Door Trim Panel Replacement - Left Side (Acadia) , Front Side Door Trim Panel Replacement - Left Side (Enclave) , or Front Side Door Trim Panel Replacement - Right Side (Acadia) , Front Side Door Trim Panel Replacement - Right Side (Enclave) , Front Side Door Trim Panel Replacement - Right Side (Traverse) . Remove the water deflector. Refer to Front Side Door Water Deflector Replacement .
1	Front Side Door Window Rear Channel Upper Bolt CAUTION: Refer to Fastener Caution . Tighten 10 N.m (89 lb in)
2	Front Side Door Window Rear Channel Lower Bolt
3	Front Side Door Window Rear Channel TIP: Install the front side door window rear channel, ensure that the upper and lower clip together.
