Front Seat Heater Control Module Replacement

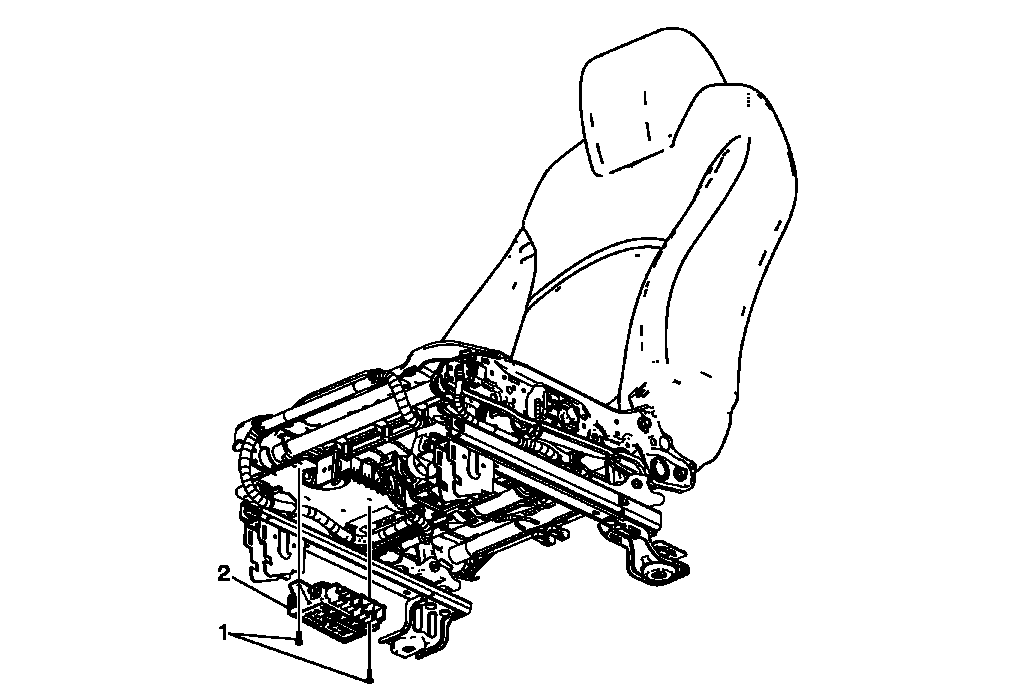

Fig 1: View Of Front Seat Heater Control Module

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Remove the front seat. Refer to Bucket Seat Replacement .
1	Front Heated Seat Module Screw (Qty: 2) CAUTION: Refer to Fastener Caution . Tighten 2 N.m (18 lb in)
2	Front Heated Seat Module Procedure Disconnect the electrical connector. If a replacement module is installed, program the module. Refer to Control Module References .

Callout

Component Name

Preliminary Procedure
Remove the front seat. Refer to Bucket Seat Replacement .

Front Heated Seat Module Screw (Qty: 2)

CAUTION:

Tighten
2 N.m (18 lb in)

Front Heated Seat Module

Procedure

Disconnect the electrical connector.
If a replacement module is installed, program the module. Refer to Control Module References .
