Head-Up Display Replacement

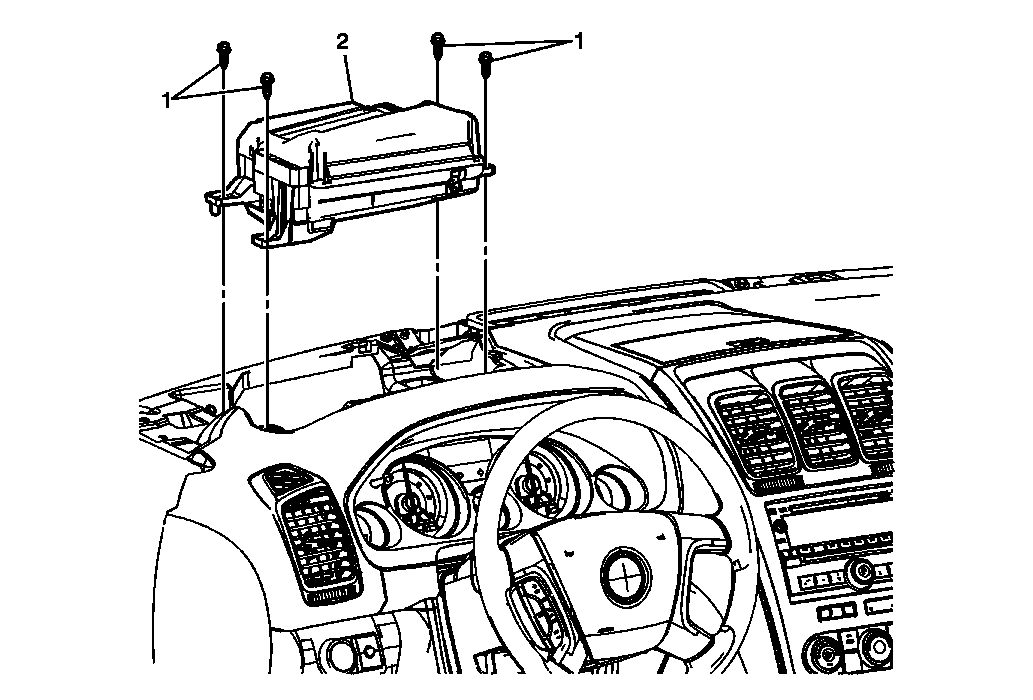

Fig 1: Locating Instrument Cluster Head Up Display

GM1853482

Courtesy of GENERAL MOTORS COMPANY

Head-Up Display Replacement

Callout

Component Name

Preliminary Procedure
Remove the instrument panel upper trim panel. Refer to Instrument Panel Upper Trim Panel with Windshield Defroster Nozzle Grille Replacement (Acadia w/RPO UV6) , Instrument Panel Upper Trim Panel with Windshield Defroster Nozzle Grille Replacement (Traverse) , Instrument Panel Upper Trim Panel with Windshield Defroster Nozzle Grille Replacement (Enclave) , Instrument Panel Upper Trim Panel with Windshield Defroster Nozzle Grille Replacement (Acadia w/o RPO UV6) .

1

Head Up Display Module Bolt (Qty: 4)

CAUTION:

Refer to Fastener Caution .

Tighten
2 N.m (18 lb in)

2

Head Up Display Module Assembly

Procedures

Disconnect the electrical connections.
Refer to Control Module References for programming and setup information.
