Instrument Cluster Replacement (Traverse)

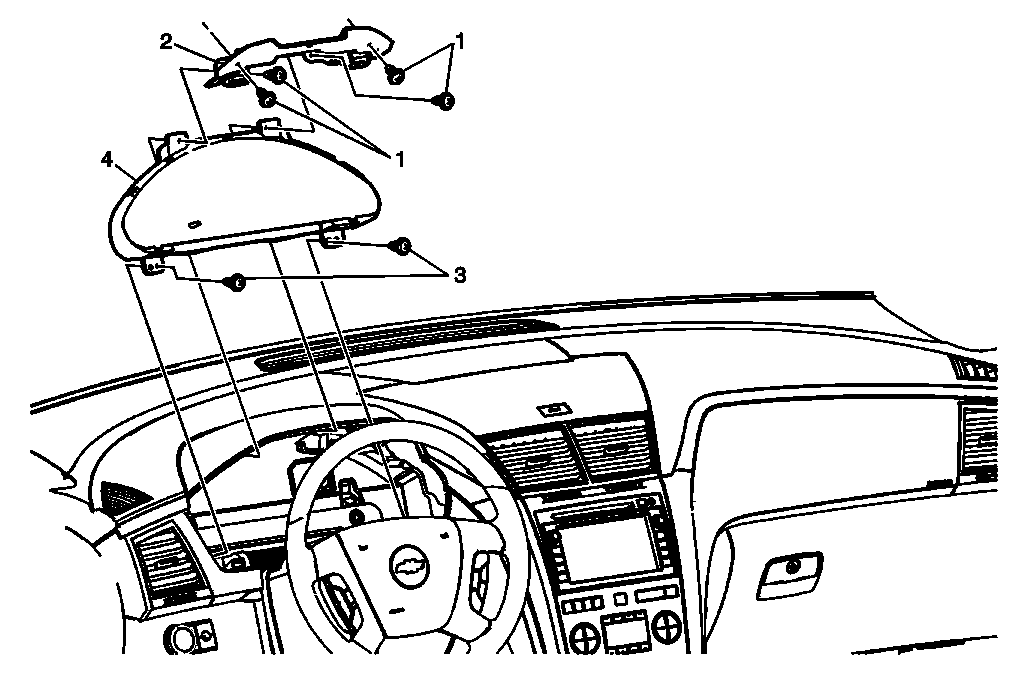

Fig 1: View Of Instrument Cluster (Traverse)

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Remove the instrument panel cluster trim plate. Refer to Instrument Panel Cluster Trim Plate Replacement (Traverse) .
1	Instrument Panel Cluster Trim Plate Spacer Screw (Qty: 6) CAUTION: Refer to Fastener Caution . Tighten 2.5 N.m (22 lb in)
2	Instrument Panel Cluster Trim Plate Spacer
3	Instrument Panel Cluster Assembly Screw (Qty: 2) Tighten 2.5 N.m (22 lb in)
4	Instrument Panel Cluster Assembly Procedure Disconnect the electrical connections. After replacing the instrument panel cluster, remove the instrument panel cluster fuse for a few seconds and then install the fuse. Refer to Control Module References for programming and setup information
