Removal Procedure

    Fig 1: Identifying Engine Wiring Harness Electrical Connector
    GM1858010Courtesy of GENERAL MOTORS COMPANY
  1. Remove the intake manifold. Refer to Intake Manifold Replacement
  2. Disconnect the engine wiring harness electrical connector(s) (5) from the ignition coil(s) (4).

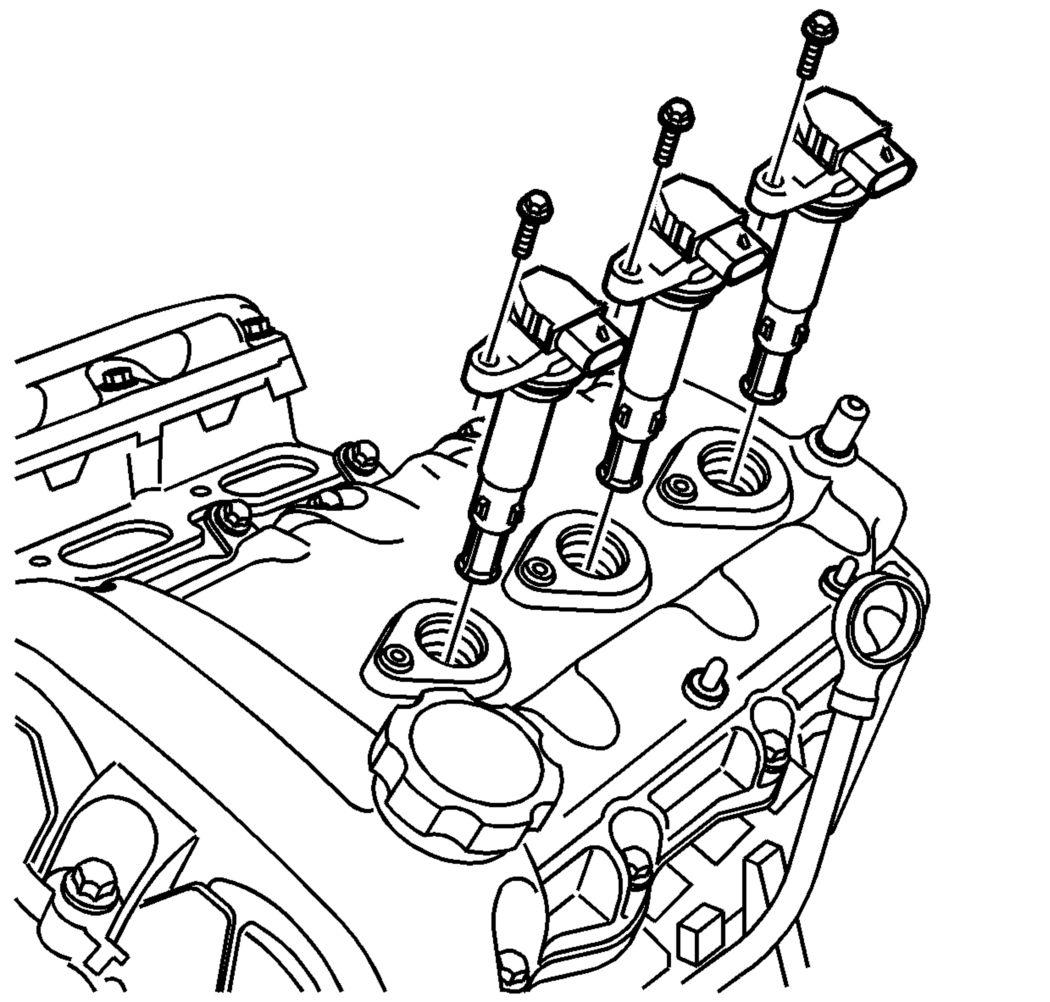

    3. Fig 2: Identifying Left Cylinder Head Ignition Coils
    GM868186Courtesy of GENERAL MOTORS COMPANY
  3. Remove the ignition coil bolt(s).
  4. Remove the ignition coil(s).
