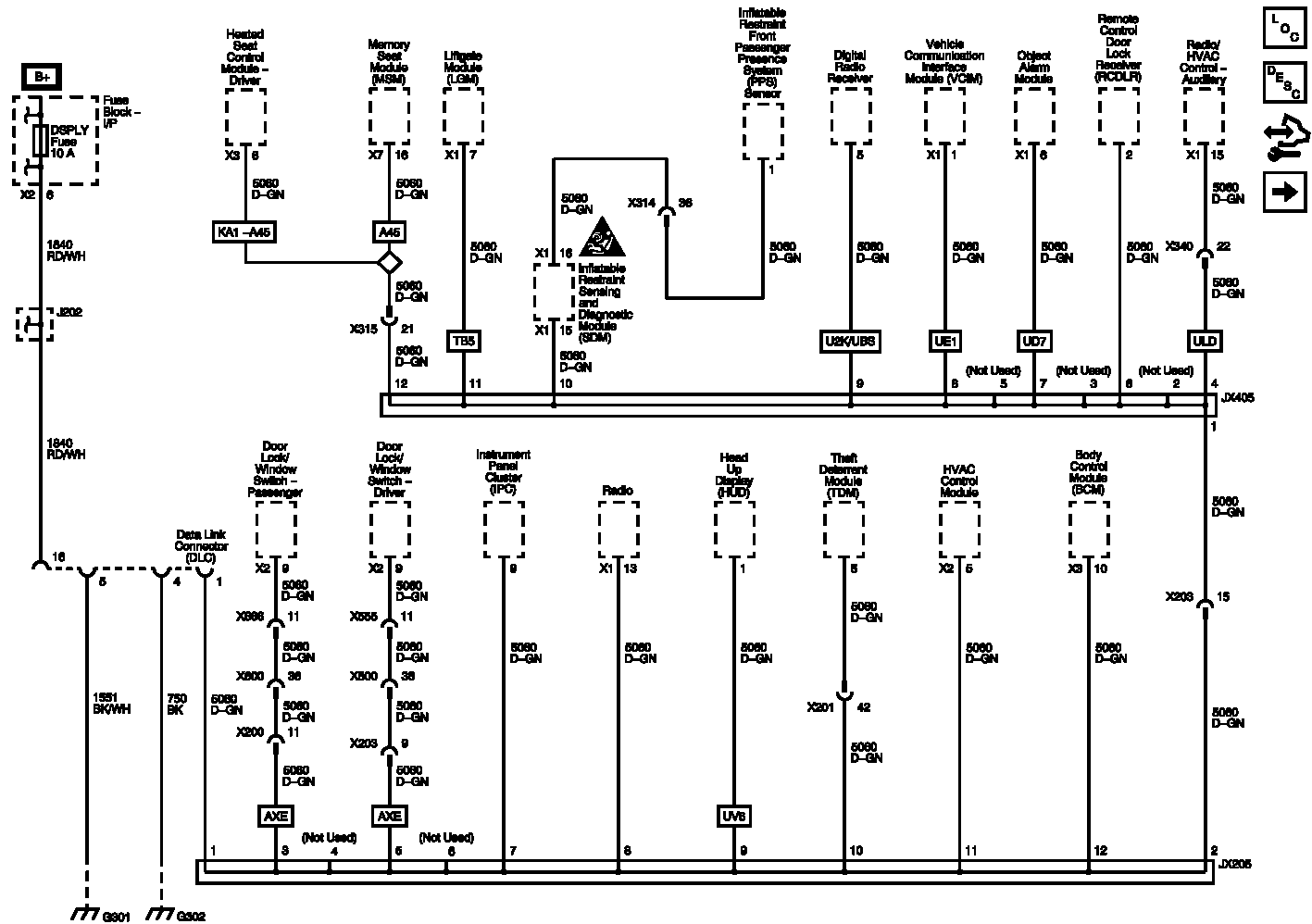

Home › Chevrolet › 2012 › Traverse LS, AWD › Repair and Diagnosis › Engine Performance › System › Data Communications System › Schematic Wiring Diagrams › Data Communication Wiring Schematics › Low Speed GMLAN
