Front Floor Console Applique Replacement

WARNING: This page is about a different car, the 2010 Cadillac SRX. However, it is still accessible from the selected car via links, so may be relevant.

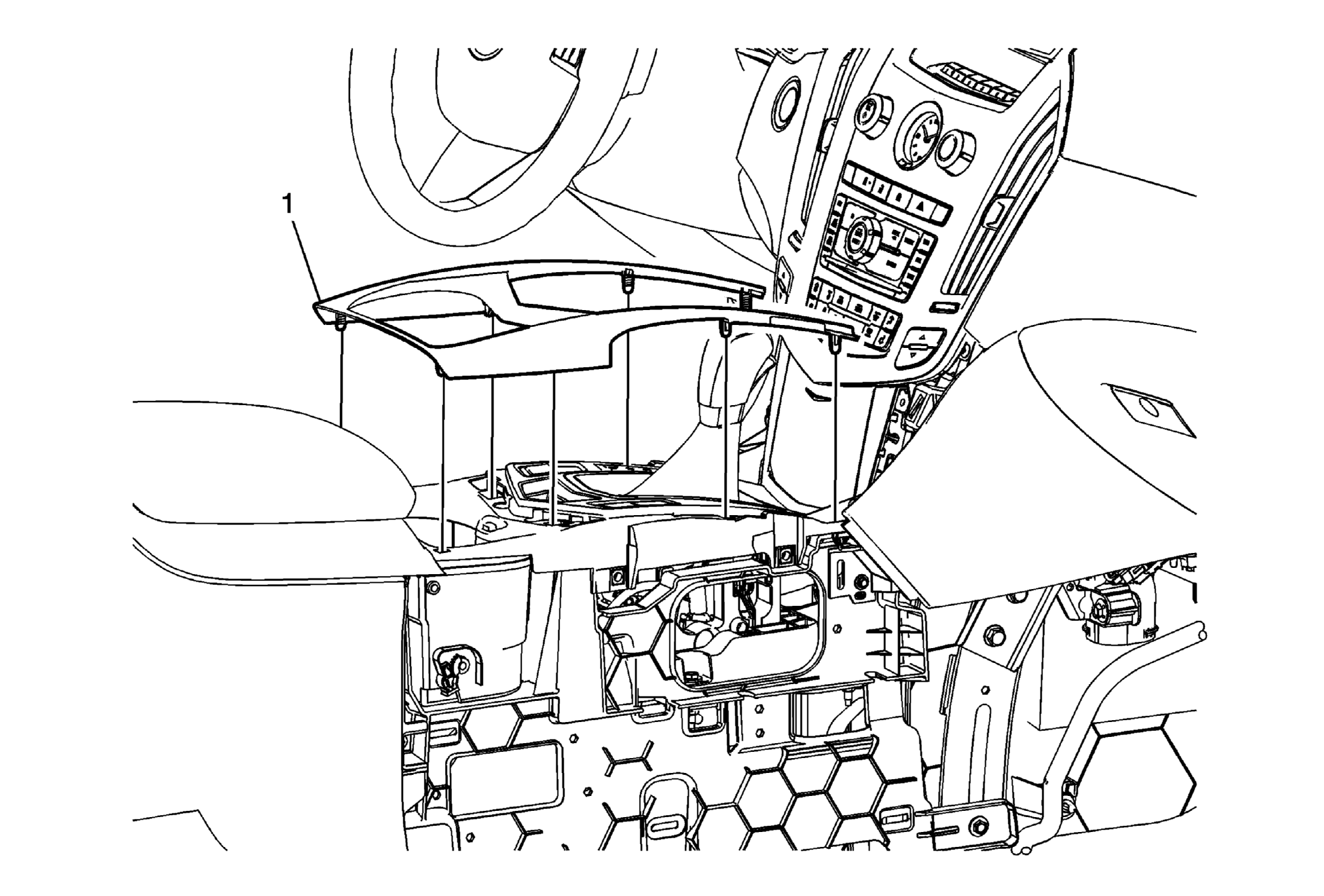

Fig 1: Identifying Front Floor Console Applique

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
Preliminary Procedure: Remove the right and left front floor console cover trim plate assemblies. Refer to Front Floor Console Cover Trim Plate Replacement - Right Side and Front Floor Console Cover Trim Plate Replacement - Left Side .
1	Front Floor Console Applique Procedure: Grasp the front floor console applique and pull upward releasing the retainer clips securing the front floor console applique to the front floor console assembly.
