Front Floor Console Trim Panel Replacement

WARNING: This page is about a different car, the 2010 Cadillac SRX. However, it is still accessible from the selected car via links, so may be relevant.

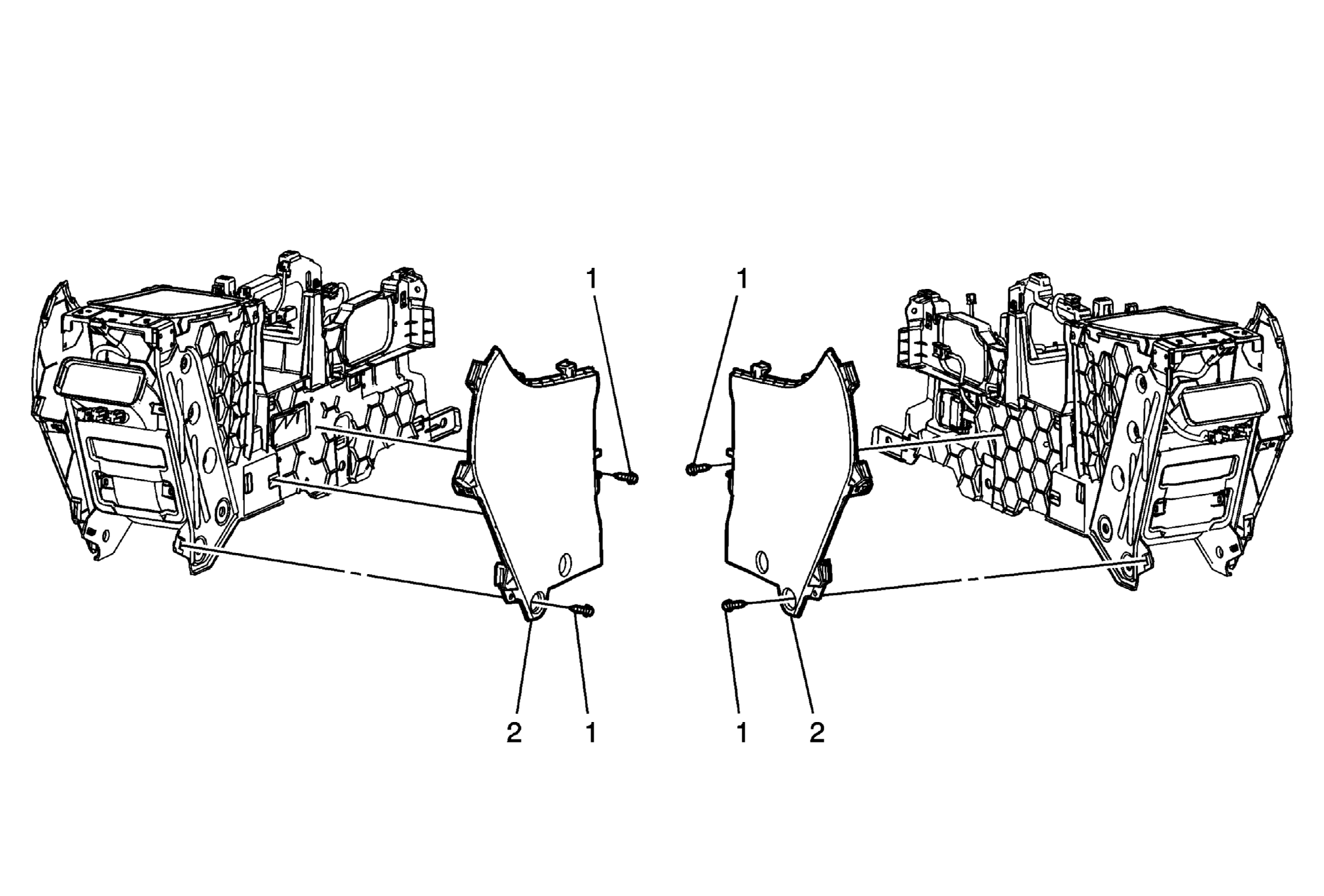

Fig 1: Identifying Front Floor Console Trim Panel

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
Preliminary Procedures Remove the driver or passenger front seat. Refer to Driver or Passenger Seat Replacement . Remove the front floor console upper rear trim panel. Refer to Front Floor Console Rear Trim Panel Replacement - Upper . Remove the front floor console lower rear trim panel. Refer to Front Floor Console Rear Trim Panel Replacement - Lower . Remove the front floor console trim plate. Refer to Front Floor Console Trim Plate Replacement .
1	Front Floor Console Trim Panel Fastener (Qty: 4) 2 per panel CAUTION: Refer to Fastener Caution . Tighten: 2.5 N.m (22 lb in)
2	Front Floor Console Trim Panel Assembly (Right or Left)

Callout

Component Name

Preliminary Procedures

Remove the driver or passenger front seat. Refer to Driver or Passenger Seat Replacement .
Remove the front floor console upper rear trim panel. Refer to Front Floor Console Rear Trim Panel Replacement - Upper .
Remove the front floor console lower rear trim panel. Refer to Front Floor Console Rear Trim Panel Replacement - Lower .
Remove the front floor console trim plate. Refer to Front Floor Console Trim Plate Replacement .

Front Floor Console Trim Panel Fastener (Qty: 4) 2 per panel

CAUTION: Refer to Fastener Caution .

Tighten: 2.5 N.m (22 lb in)

Front Floor Console Trim Panel Assembly (Right or Left)
