Instrument Panel Trim Panel Replacement

WARNING: This page is about a different car, the 2010 Cadillac SRX. However, it is still accessible from the selected car via links, so may be relevant.

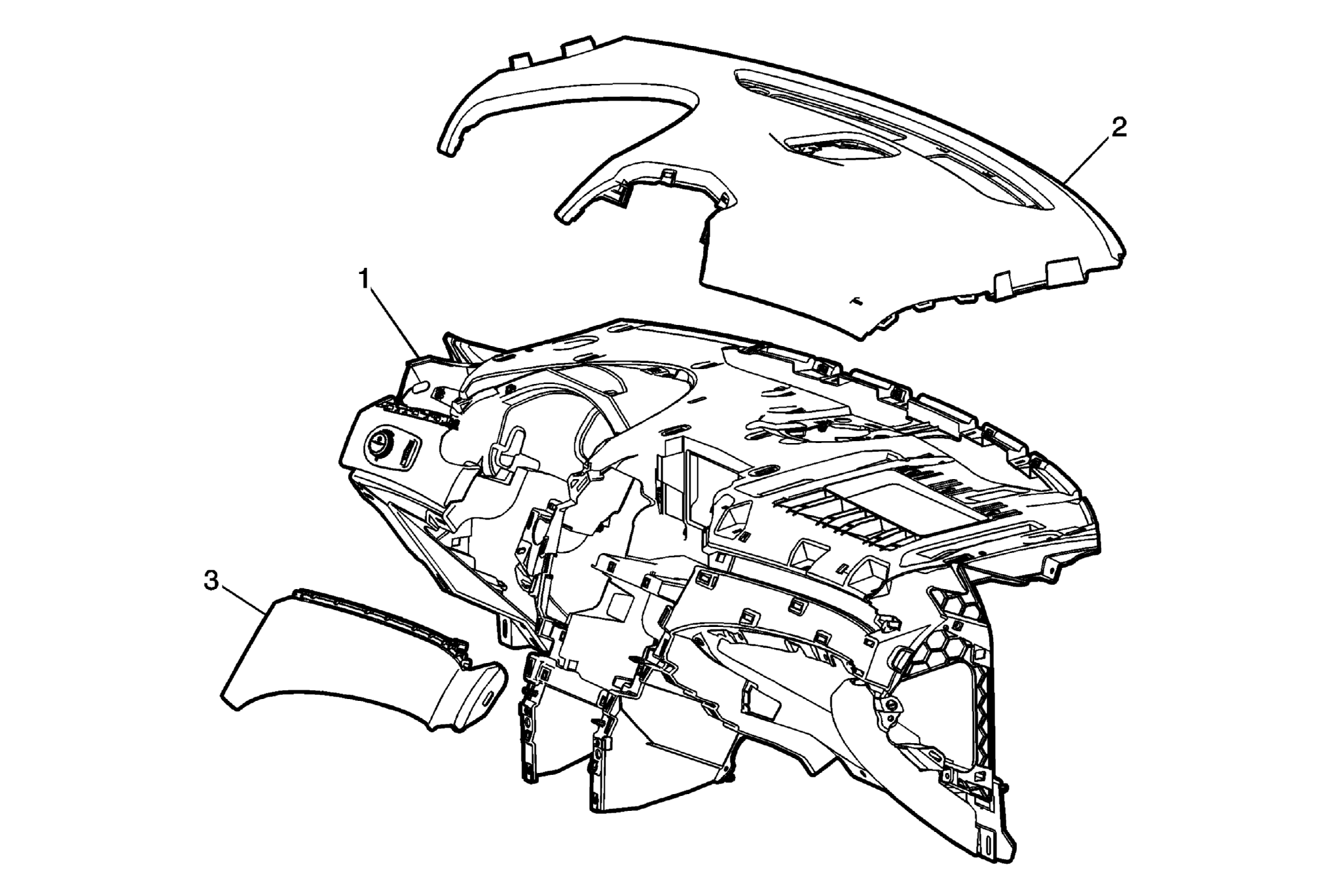

Fig 1: View Of Instrument Panel Trim Panel

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Instrument Panel Assembly Refer to Instrument Panel Assembly Removal .
2	Instrument Panel Upper Trim Panel Refer to Instrument Panel Upper Trim Panel Replacement .
3	Instrument Panel Trim Panel Procedures Note location and routing of the instrument panel flood lamp electrical wires in order to ensure proper reinstallation. Disconnect the electrical connection. When replacing the instrument panel trim panel, transfer all necessary components.

Callout

Component Name

Instrument Panel Assembly
Refer to Instrument Panel Assembly Removal .

Instrument Panel Upper Trim Panel
Refer to Instrument Panel Upper Trim Panel Replacement .

Instrument Panel Trim Panel

Procedures

Note location and routing of the instrument panel flood lamp electrical wires in order to ensure proper reinstallation.
Disconnect the electrical connection.
When replacing the instrument panel trim panel, transfer all necessary components.
