Roof Console Replacement

WARNING: This page is about a different car, the 2010 Cadillac SRX. However, it is still accessible from the selected car via links, so may be relevant.

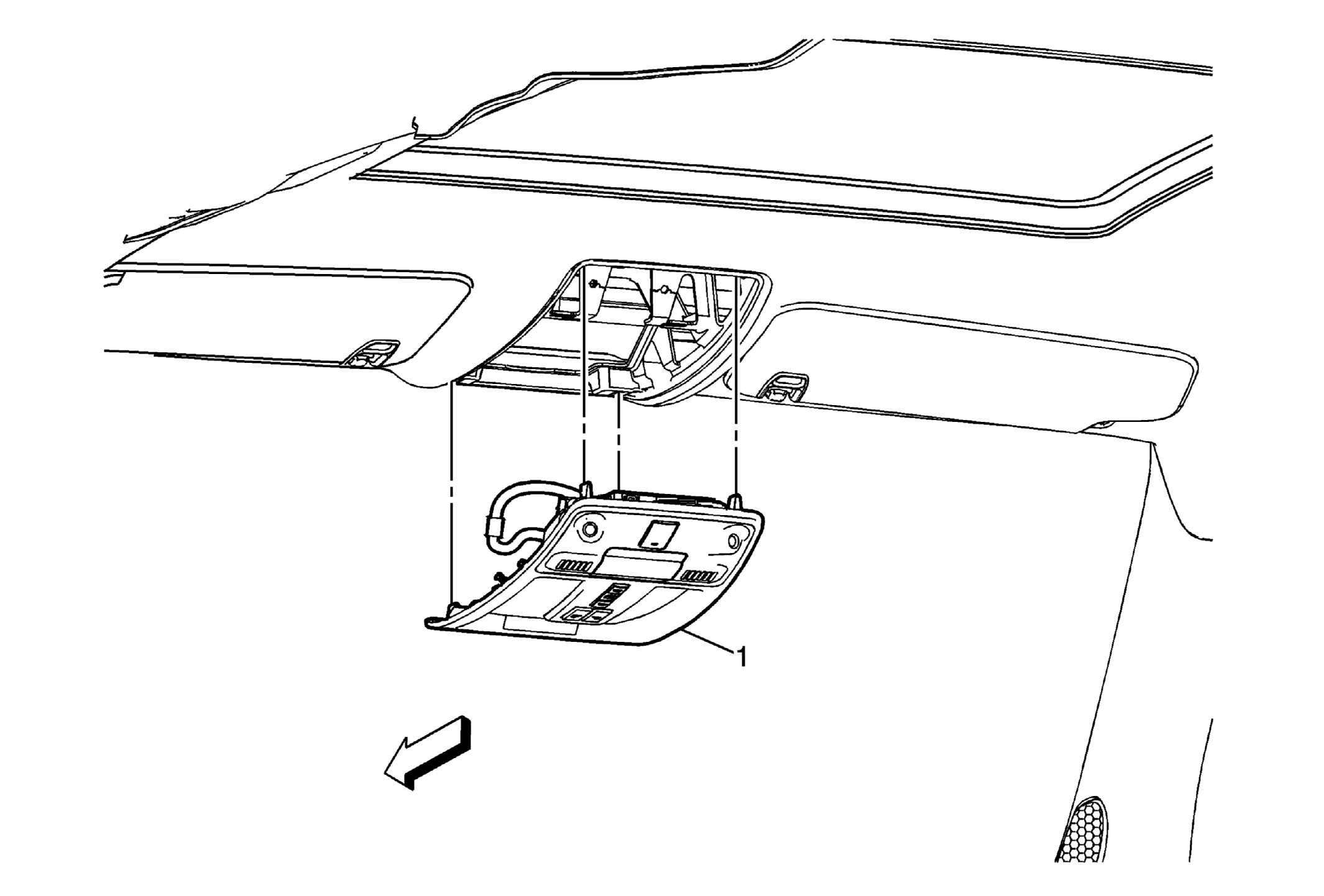

Fig 1: View Of Roof Console

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Roof Console Assembly Procedures Grasp the roof console assembly and pull downward to release the retainer clips securing the roof console assembly to the headliner. Disconnect the electrical connections. When replacing the roof console assembly, transfer all necessary components.
