Transfer Case Disassembled View

WARNING: This page is about a different car, the 2010 Cadillac SRX. However, it is still accessible from the selected car via links, so may be relevant.

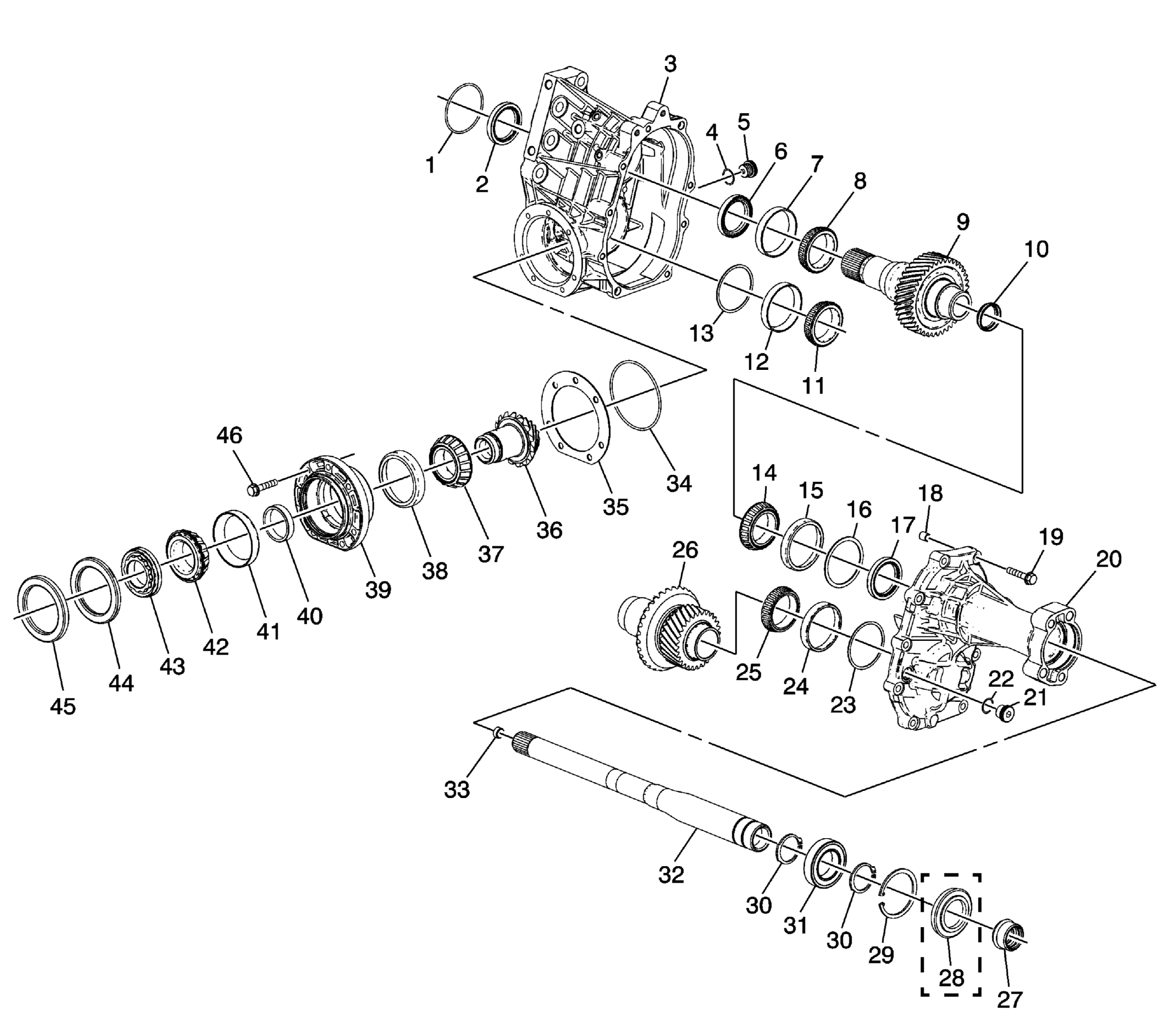

Fig 1: Disassembled View Of Transfer Case Components

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Transmission-to-Transfer Case O-ring Seal
2	Input Shaft Front Seal
3	Transfer Case Housing
4	Transfer Case Drain Plug Sealing Washer
5	Transfer Case Drain Plug
6	Input Shaft Rear Seal
7	Input Shaft Front Bearing Race
8	Input Shaft Front Bearing
9	Input Shaft
10	Intermediate Shaft Seal
11	Idler Shaft Front Bearing
12	Idler Shaft Front Bearing Race
13	Idler Shaft Front Bearing Shim
14	Input Shaft Rear Bearing
15	Input Shaft Rear Bearing Race
16	Input Shaft Rear Bearing Shim
17	Input Shaft Bearing Retainer Rear Seal
18	Transfer Case-to-Rear Extension Housing Locating Pin
19	Transfer Case-to-Rear Extension Housing Bolt
20	Rear Extension Housing
21	Transfer Case Fill Plug
22	Transfer Case Fill Plug Sealing Washer
23	Idler Shaft Rear Bearing Shim
24	Idler Shaft Rear Bearing Race
25	Idler Shaft Rear Bearing
26	Idler Shaft
27	Transfer Case Seal
28	Intermediate Shaft Assembly Retaining Ring
29	Intermediate Shaft Bearing Retaining Ring
30	Intermediate Shaft Bearing
31	Intermediate Shaft
32	Intermediate Shaft Plug
33	Rear Output Shaft Housing O-ring Seal
34	Rear Output Shaft Shim
35	Rear Output Shaft
36	Rear Output Shaft Bearing
37	Rear Output Shaft Bearing Race
38	Rear Output Shaft Housing
39	Rear Output Shaft Bearing Spacer
40	Rear Output Shaft Bearing Race
41	Rear Output Shaft Bearing
42	Rear Output Shaft Nut
43	Rear Output Shaft Seal
44	Rear Output Shaft Dirt Deflector
45	Rear Output Shaft Housing Bolt

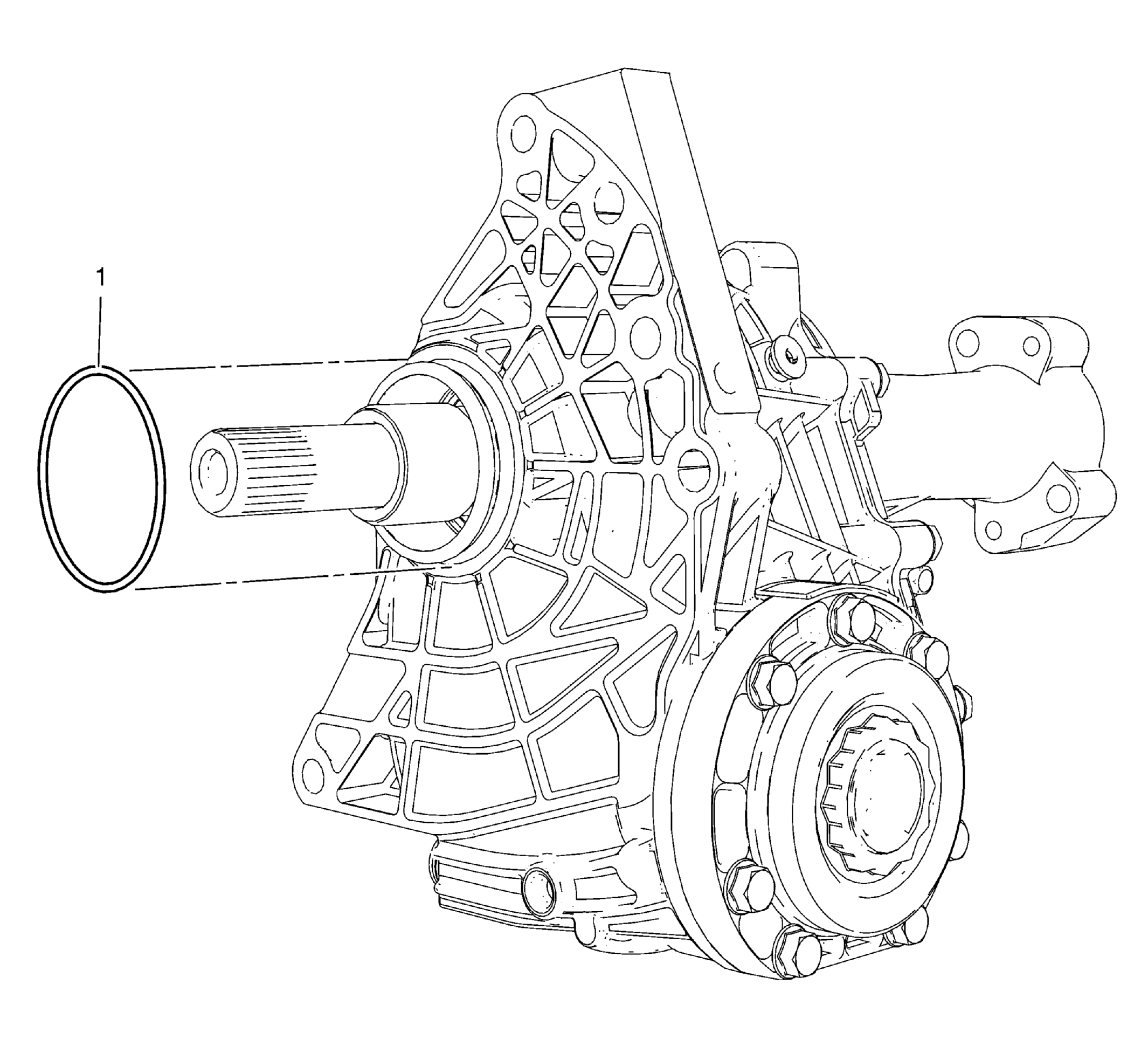

Fig 2: Transfer Case Seal View

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Transfer Case-to-Transmission Seal

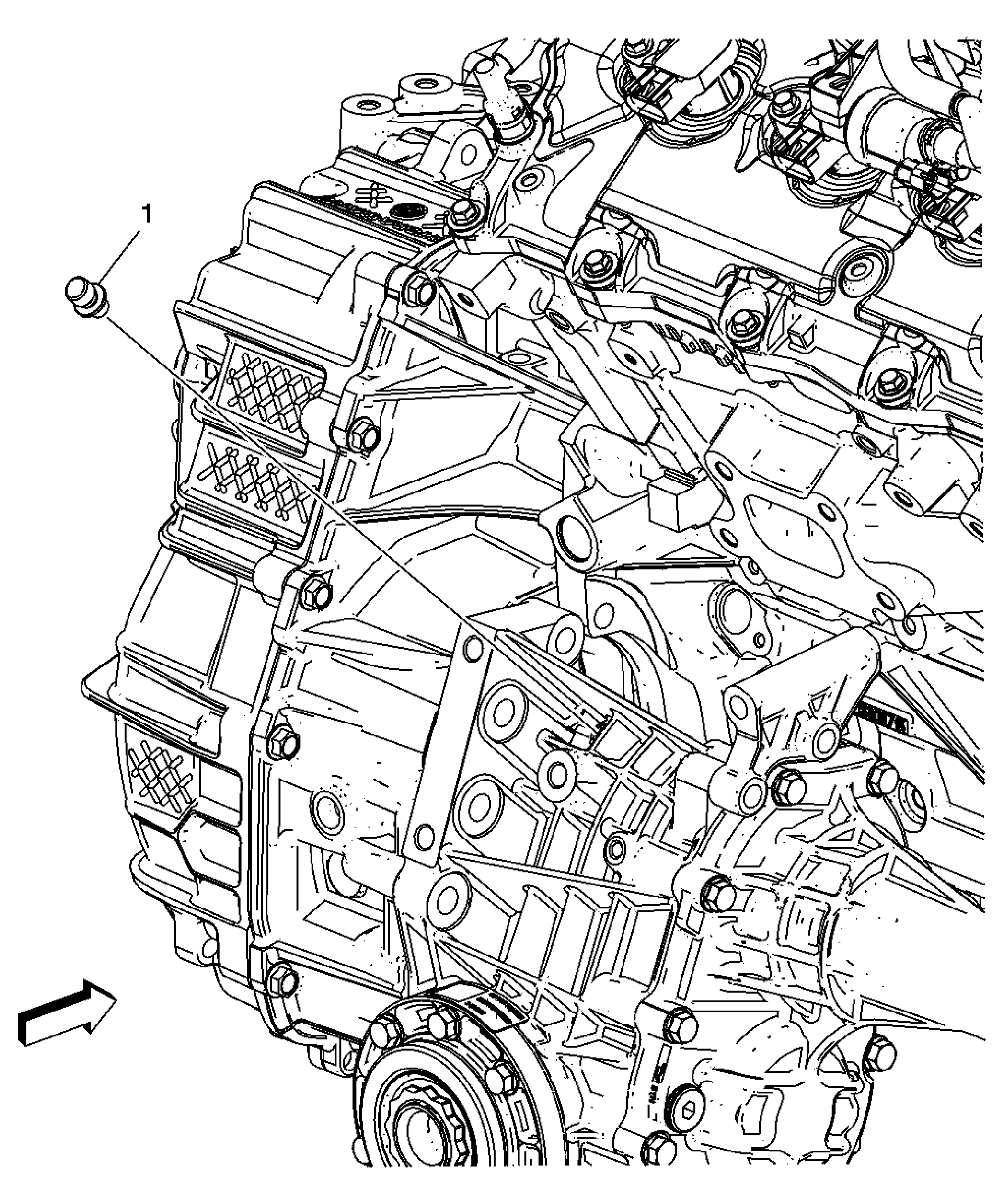

Fig 3: Identifying Vent Assembly - 1st Design

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Vent Assembly

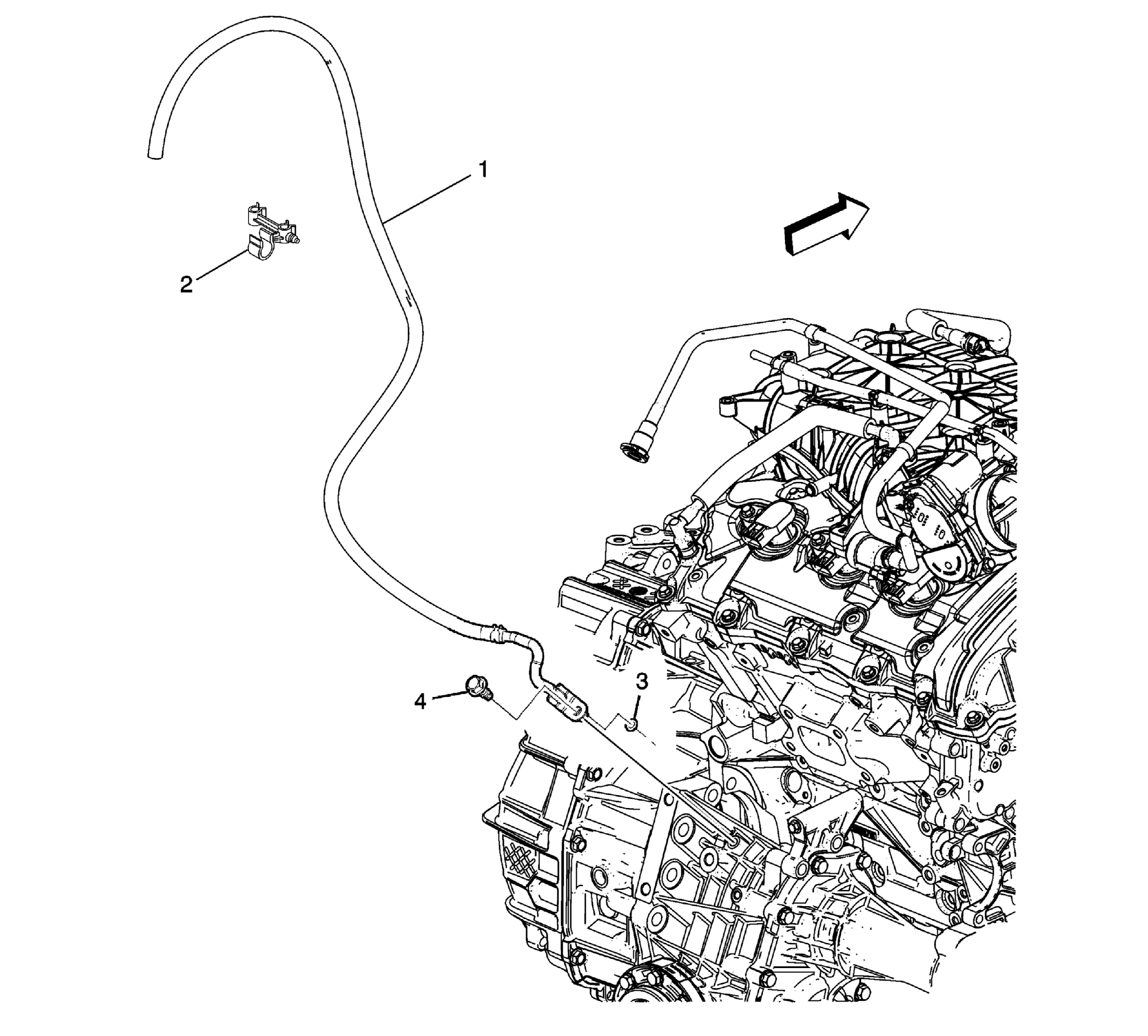

Fig 4: Identifying Vent Hose Assembly - 2nd Design

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Vent Hose Assembly
2	Strap
3	O-ring
4	Bolt
