Blower Motor Control Module Replacement

WARNING: This page is about a different car, the 2013 GMC Acadia, 2013 Chevrolet Traverse, and 2013 Buick Enclave. However, it is still accessible from the selected car via links, so may be relevant.

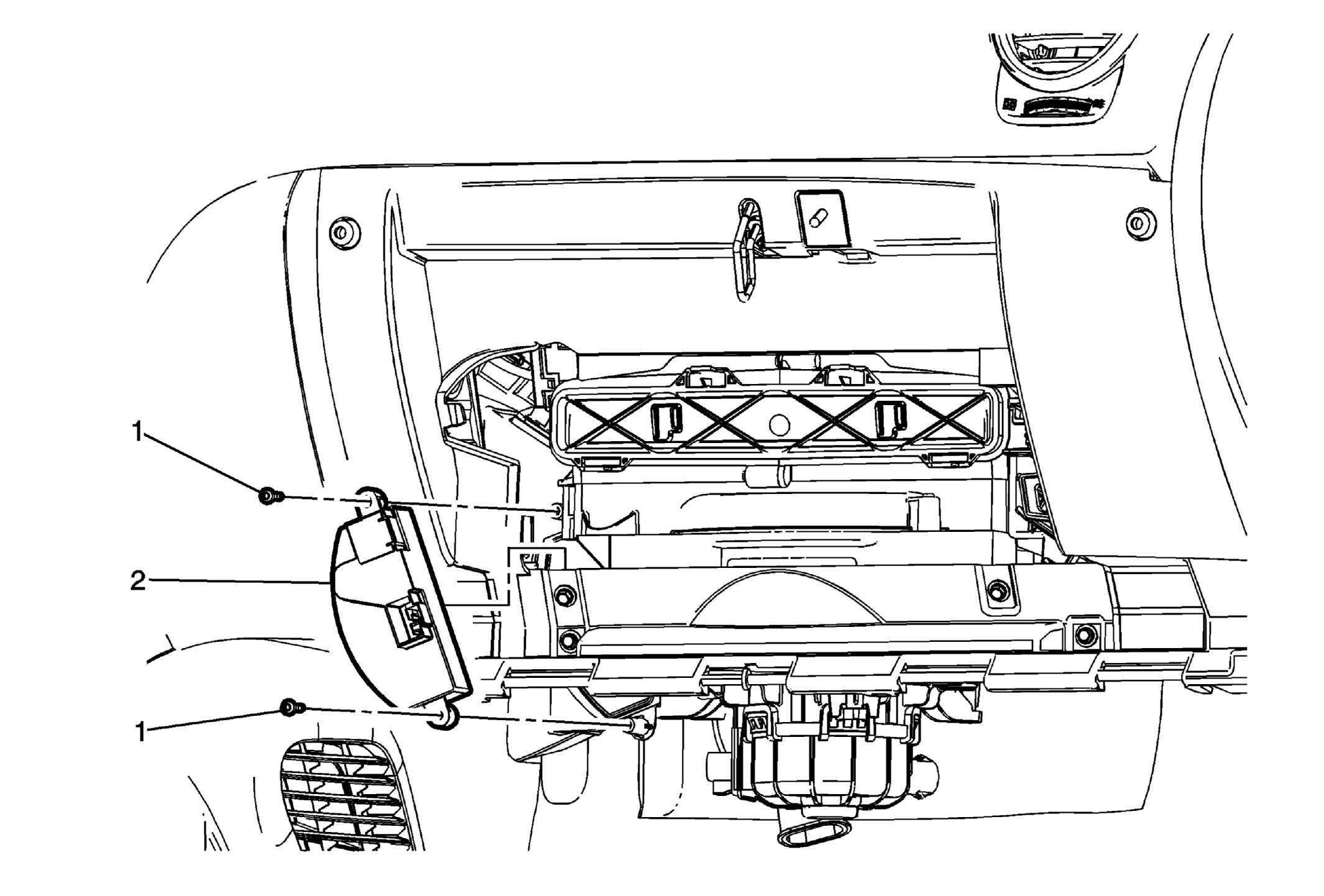

Fig 1: Blower Motor Control Module
GM2888977Courtesy of GENERAL MOTORS COMPANY
Blower Motor Control Module Replacement

Callout Component Name

Preliminary Procedures

  1. Remove the right side instrument panel insulator. Refer to Instrument Panel Insulator Panel Replacement - Right Side .
  2. Remove the instrument panel compartment assembly. Refer to Instrument Panel Compartment Replacement (Acadia) , Instrument Panel Compartment Replacement (Enclave) or Instrument Panel Compartment Replacement (Traverse) .
1 Blower Motor Control Module Screw (Qty: 2)
CAUTION:

Refer to Fastener Caution .
2 Blower Motor Control Module

Procedure

  1. Lift up and out through the instrument panel compartment assembly opening.
  2. Disconnect blower motor control module connector.
