Remote Function Schematics

WARNING: This page is about a different car, the 2010 Cadillac SRX. However, it is still accessible from the selected car via links, so may be relevant.

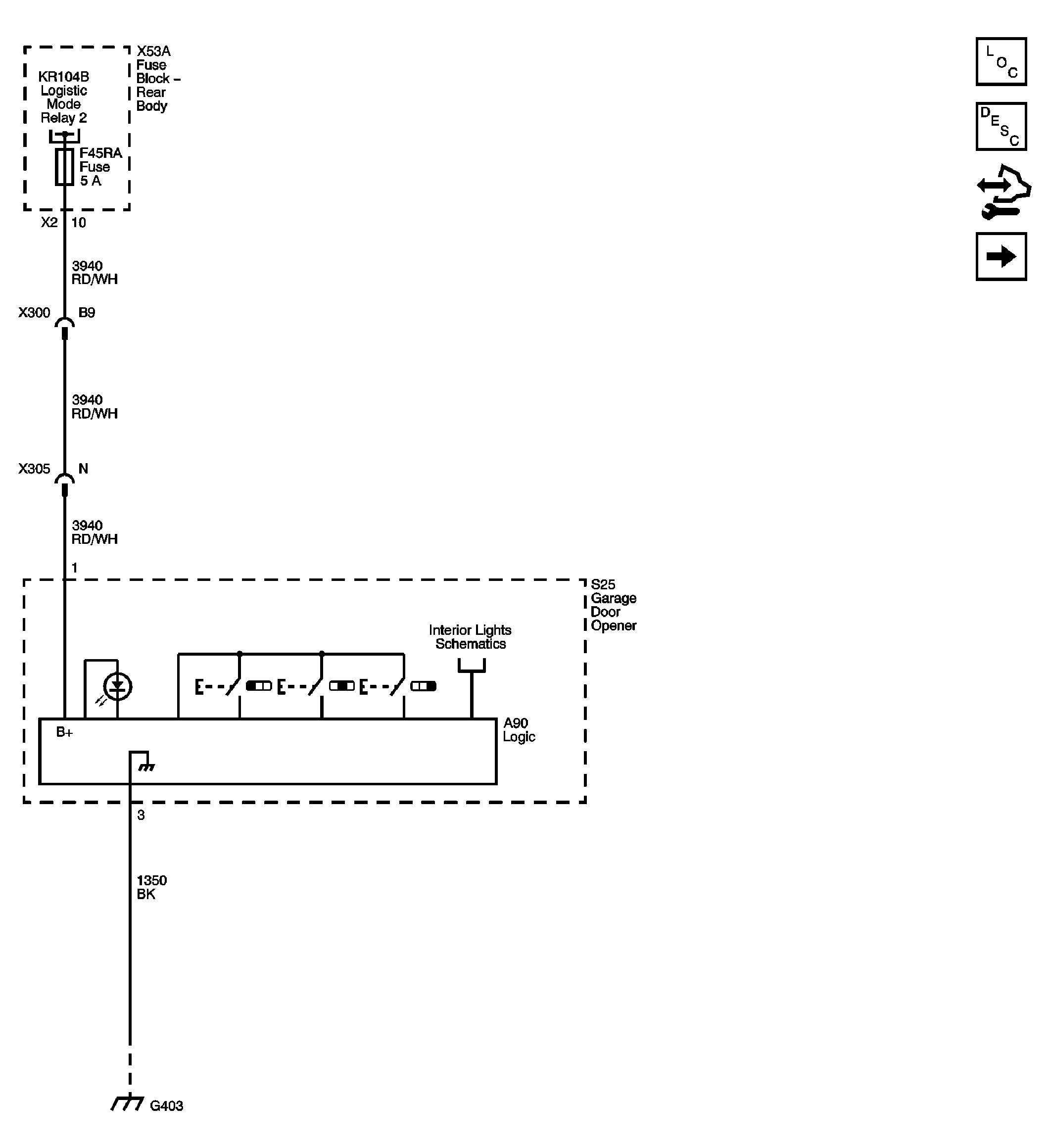

Fig 1: Garage Door Opener Circuit Schematic (GDO)

GM2246986

Courtesy of GENERAL MOTORS CORP.

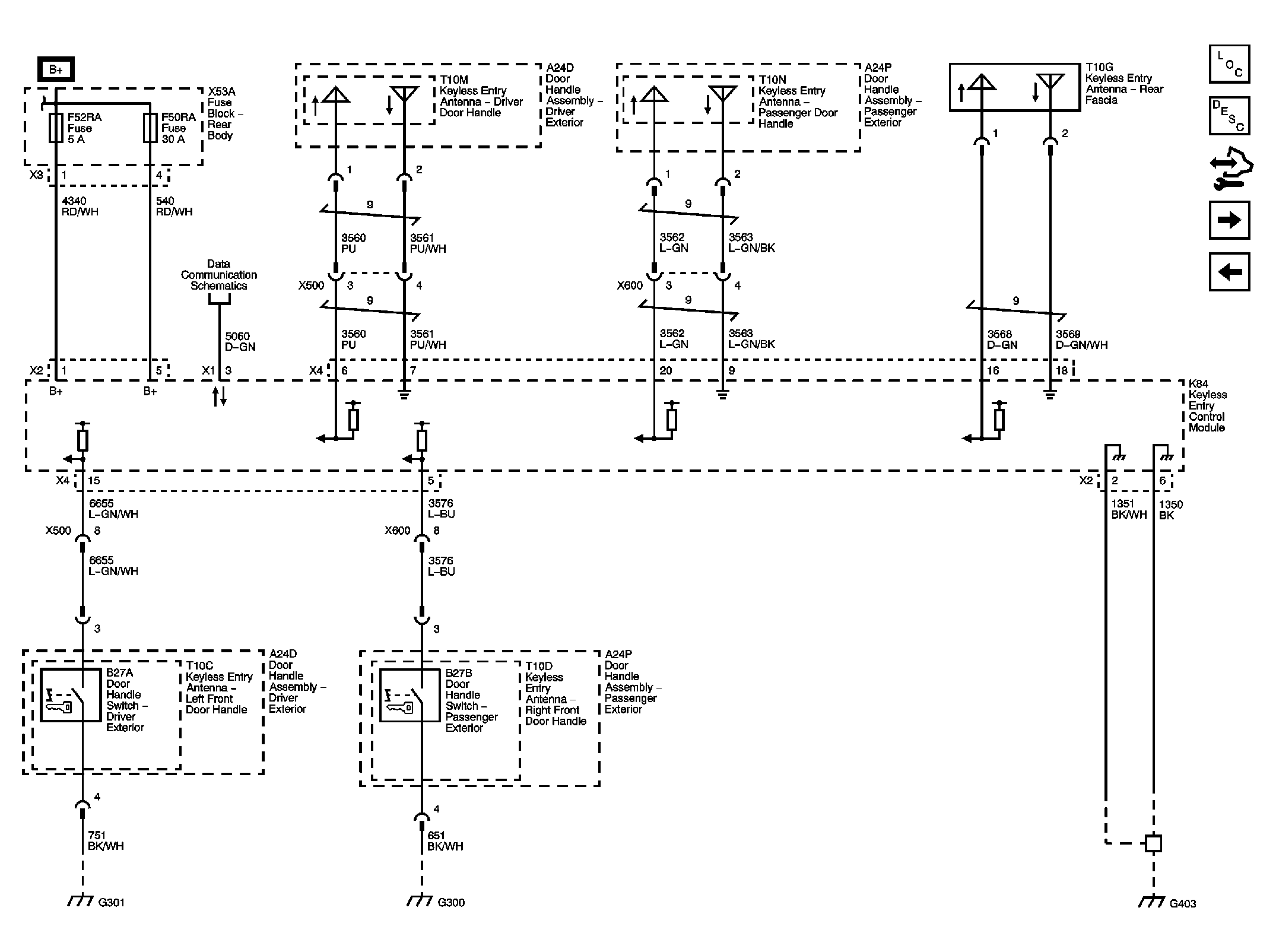

Fig 2: Passive Entry Circuit Schematic (ATH - 1 Of 2)

GM2246989

Courtesy of GENERAL MOTORS CORP.

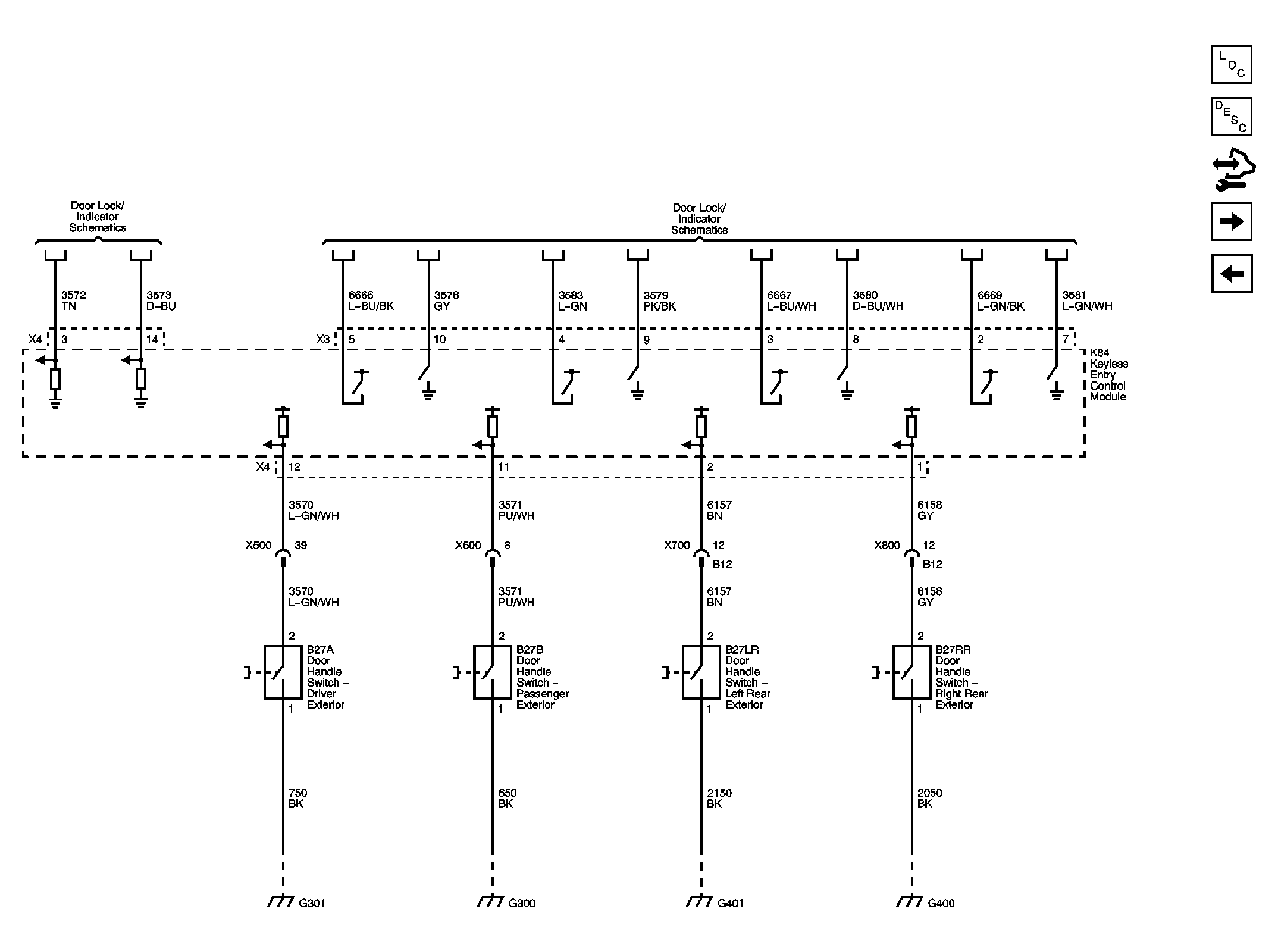

Fig 3: Passive EntryCircuit Schematic (ATH - 2 Of 2)

GM2382442

Courtesy of GENERAL MOTORS CORP.

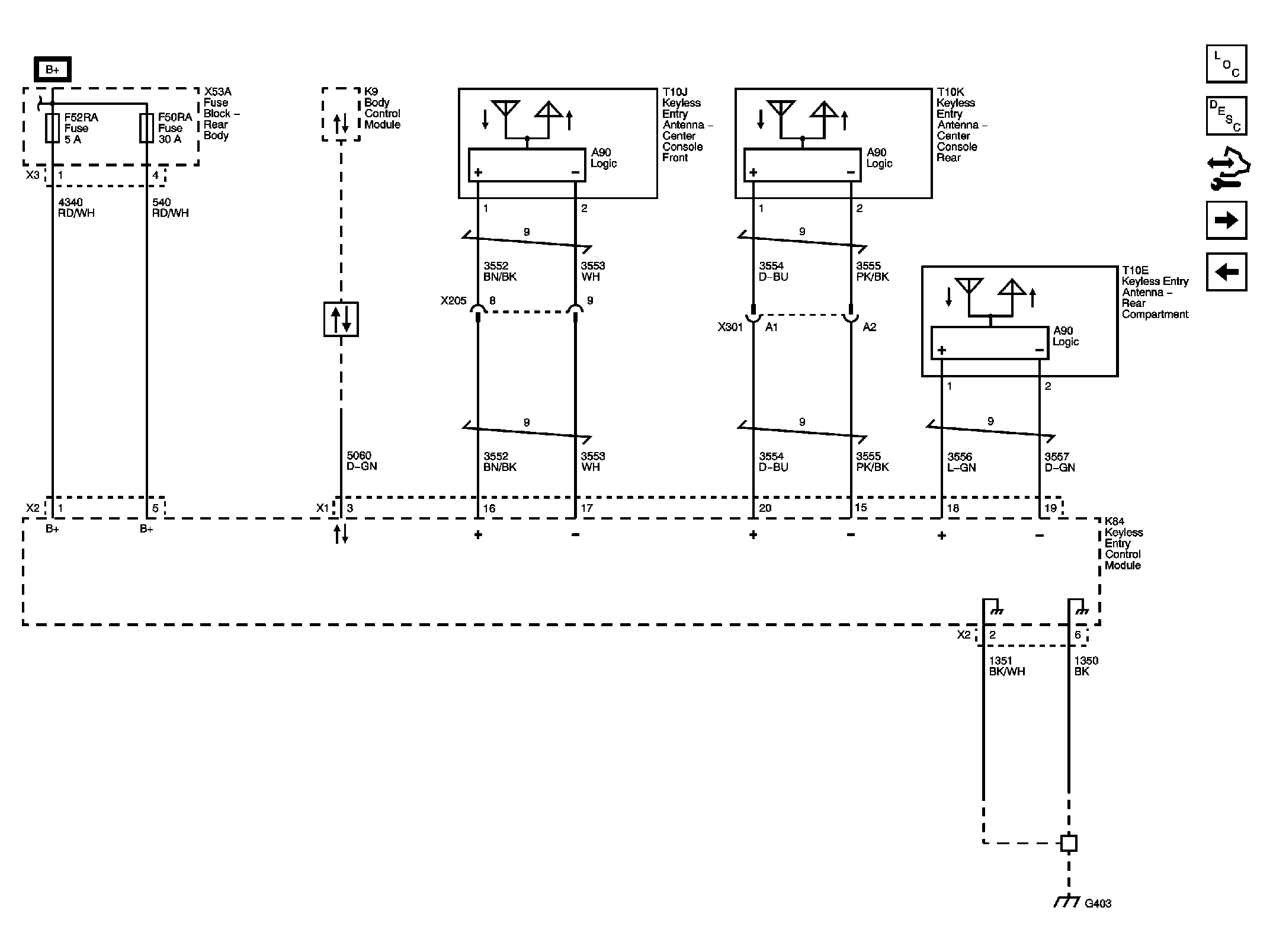

Fig 4: Passive Start Circuit Schematic

GM2246992

Courtesy of GENERAL MOTORS CORP.

Fig 5: Remote Keyless Entry Circuit Schematic (RKE) Without ATH

GM2246988

Courtesy of GENERAL MOTORS CORP.
