Instrument Panel Airbag Disable Switch Replacement (With C99)

WARNING: This page is about a different car, the 2015 Cadillac SRX. However, it is still accessible from the selected car via links, so may be relevant.

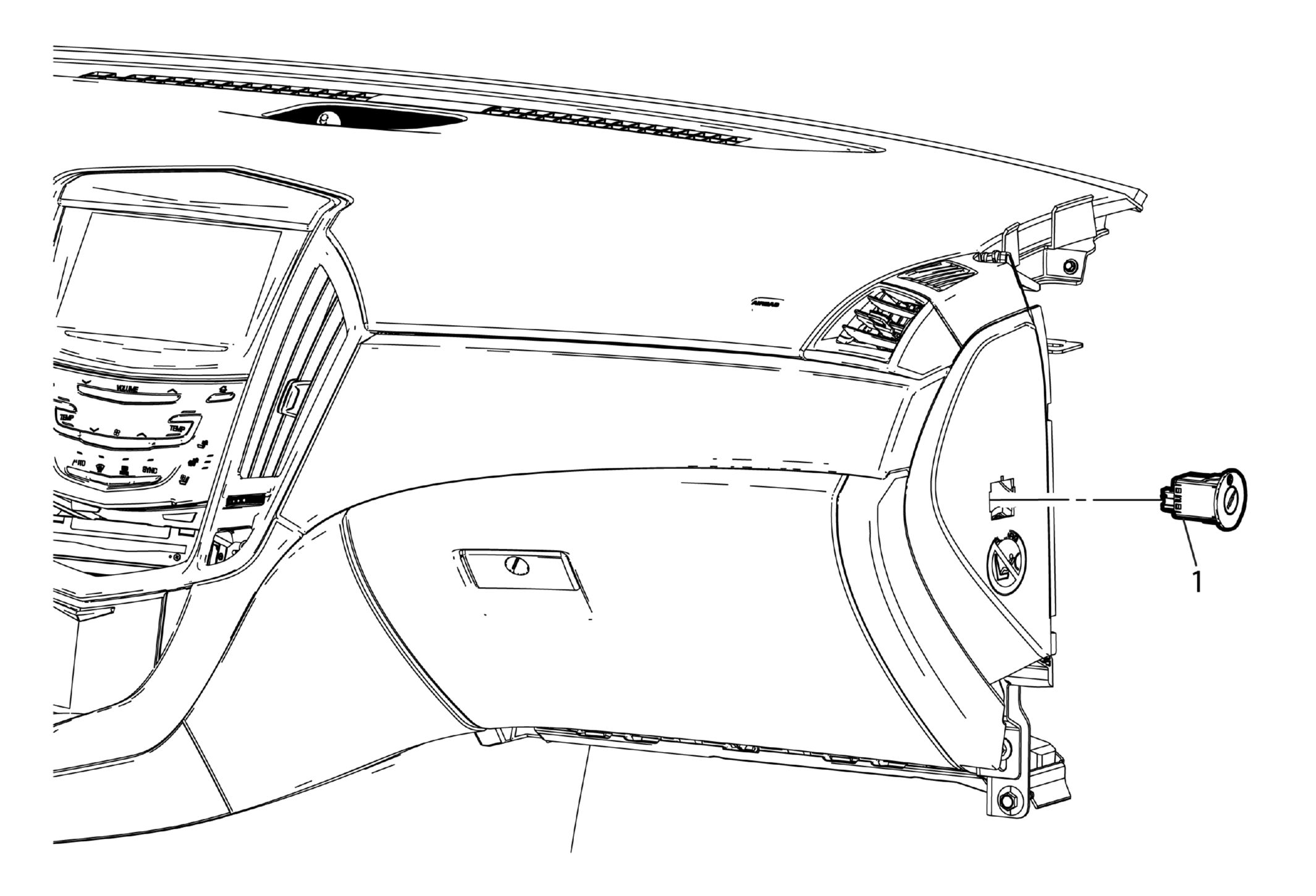

Fig 1: Instrument Panel Airbag Disable Switch Assembly (With C99)

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
WARNING: Refer to SIR Warning . Preliminary Procedure Disable the supplemental inflatable restraint (SIR) system. Refer to SIR Disabling and Enabling . Remove the instrument panel side trim panel. Refer to Instrument Panel Side Trim Panel Replacement .
1	Instrument Panel Airbag Disable Switch Assembly Procedure Use a small flat bladed tool to aid in the removal of the switch from the instrument panel side trim panel. Disconnect the electrical connector.

Callout

Component Name

WARNING:

Refer to SIR Warning .

Preliminary Procedure

Disable the supplemental inflatable restraint (SIR) system. Refer to SIR Disabling and Enabling .
Remove the instrument panel side trim panel. Refer to Instrument Panel Side Trim Panel Replacement .

Instrument Panel Airbag Disable Switch Assembly

Procedure

Use a small flat bladed tool to aid in the removal of the switch from the instrument panel side trim panel.
Disconnect the electrical connector.
