Installation Procedure

WARNING: This page is about a different car, the 2015 Cadillac SRX. However, it is still accessible from the selected car via links, so may be relevant.

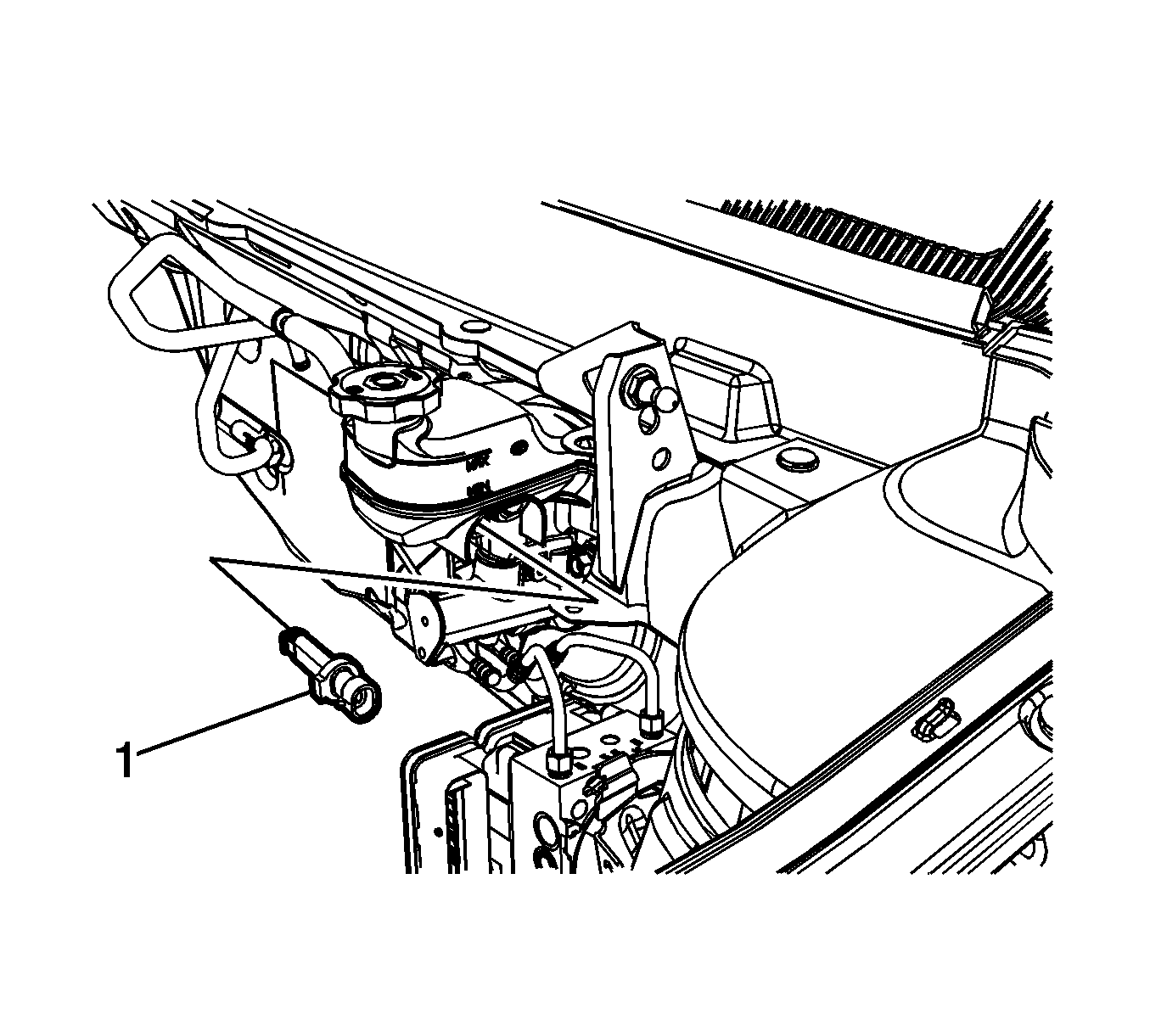

    Fig 1: View Of Brake Fluid Level Indicator Switch
    GM2219317Courtesy of GENERAL MOTORS COMPANY
    NOTE:

    Ensure the brake fluid level indicator switch locking tabs are fully engaged in the master cylinder reservoir.

  1. Install the brake fluid level indicator switch (1).
  2. Connect the brake fluid level indicator switch electrical connector.
    3. Fig 2: Identifying Master Cylinder Heat Shield Bolt
    GM2219313Courtesy of GENERAL MOTORS COMPANY
  3. Install the master cylinder heat shield, if equipped.
    4. CAUTION:

    Refer to Fastener Caution .

  4. Install the master cylinder heat shield bolt (1) and tighten to 10 N.m (89 lb in)..
    5. Fig 3: Identifying Master Cylinder Heat Shield Nuts
    GM2219310Courtesy of GENERAL MOTORS COMPANY
    NOTE:

    Lift the dash panel insulator slightly to install the upper master cylinder heat shield nut.

  5. Install the master cylinder heat shield nuts (1) and tighten to 25 N.m (18 lb ft).
  6. Install the radiator surge tank. Refer to Radiator Surge Tank Replacement .
