Front Side Turn Signal Lamp Replacement
WARNING: This page is about a different car, the 2015 Cadillac SRX. However, it is still accessible from the selected car via links, so may be relevant.
Courtesy of GENERAL MOTORS COMPANY
| Callout |
Component Name |
| 1 |

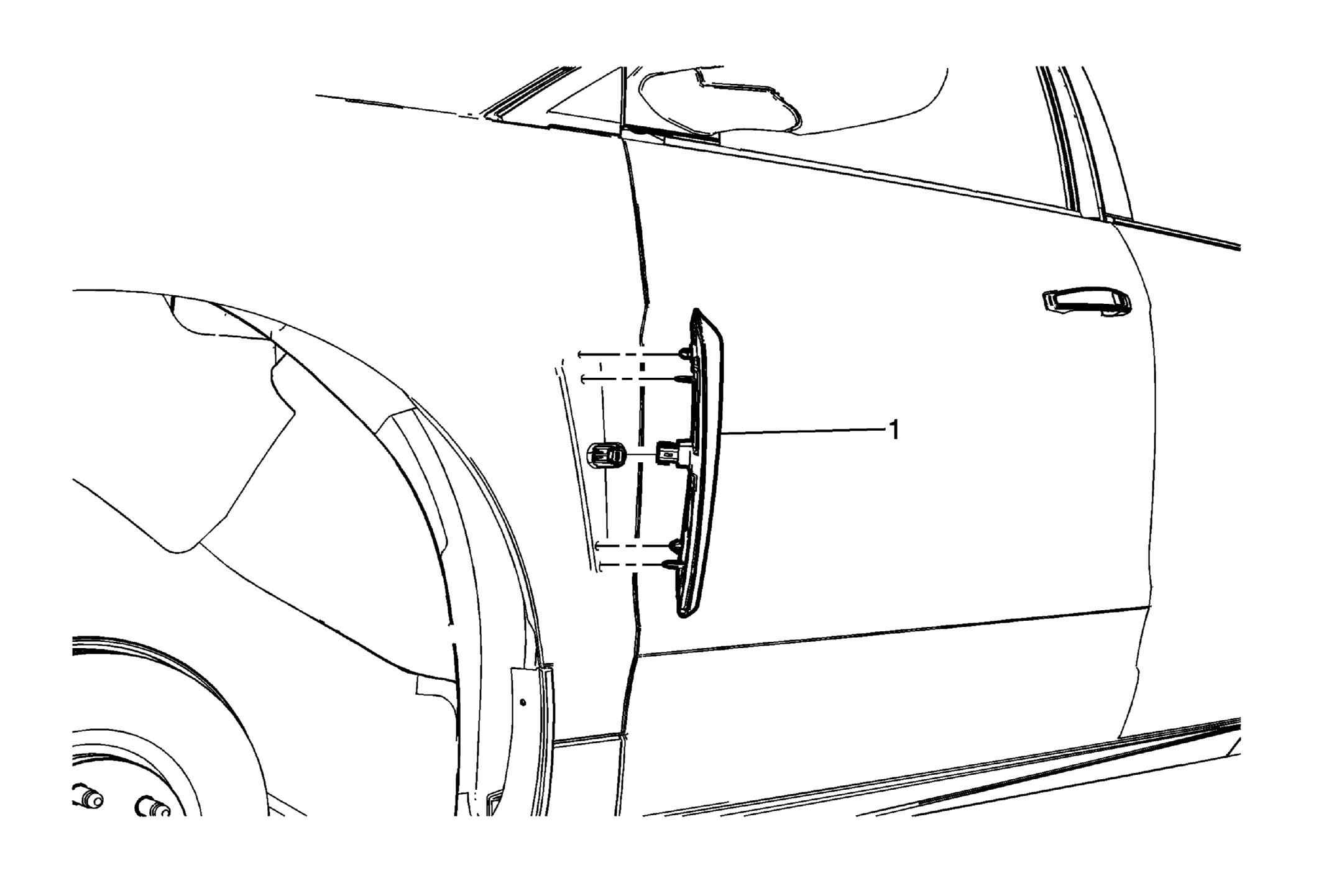

Side Turn Signal Lamp Assembly Procedure
- Remove the front wheelhouse liner in order to access the fasteners for the front turn signal lamp. Refer to Front Wheelhouse Liner Replacement
.
- Begin releasing the retainers at the bottom of the side turn signal lamp and work towards the top.
- When the first lower retainer clip is released, insert a small plastic flat-bladed tool between the exterior body panel and the side turn signal assembly to prevent the retainer from re-engaging back into the fender panel hole.
- Disconnect the electrical harness connector from the side turn signal lamp housing.
- Connect the electrical harness lamp socket to the side turn signal lamp housing.
- Position the side turn signal lamp retainers to the fender holes.
- Using the palm portion of the hand, secure the retainers to the fender holes.
- A light audible click will be heard when each retainer is secure to the fender panel.
NOTE:
The lamp is a LED lamp and is serviced with the complete lamp assembly.
|
