Section 308 (Secondary And Configurable Customer Control System)
›
Schematic Wiring Diagrams
›
Steering Wheel Secondary/Configurable Control Wiring Schematics
›
Secondary and Configurable Controls
Secondary and Configurable Controls
WARNING:
This page is about a different car, the 2015 Cadillac SRX. However, it is still accessible from the selected car via links, so may be relevant.

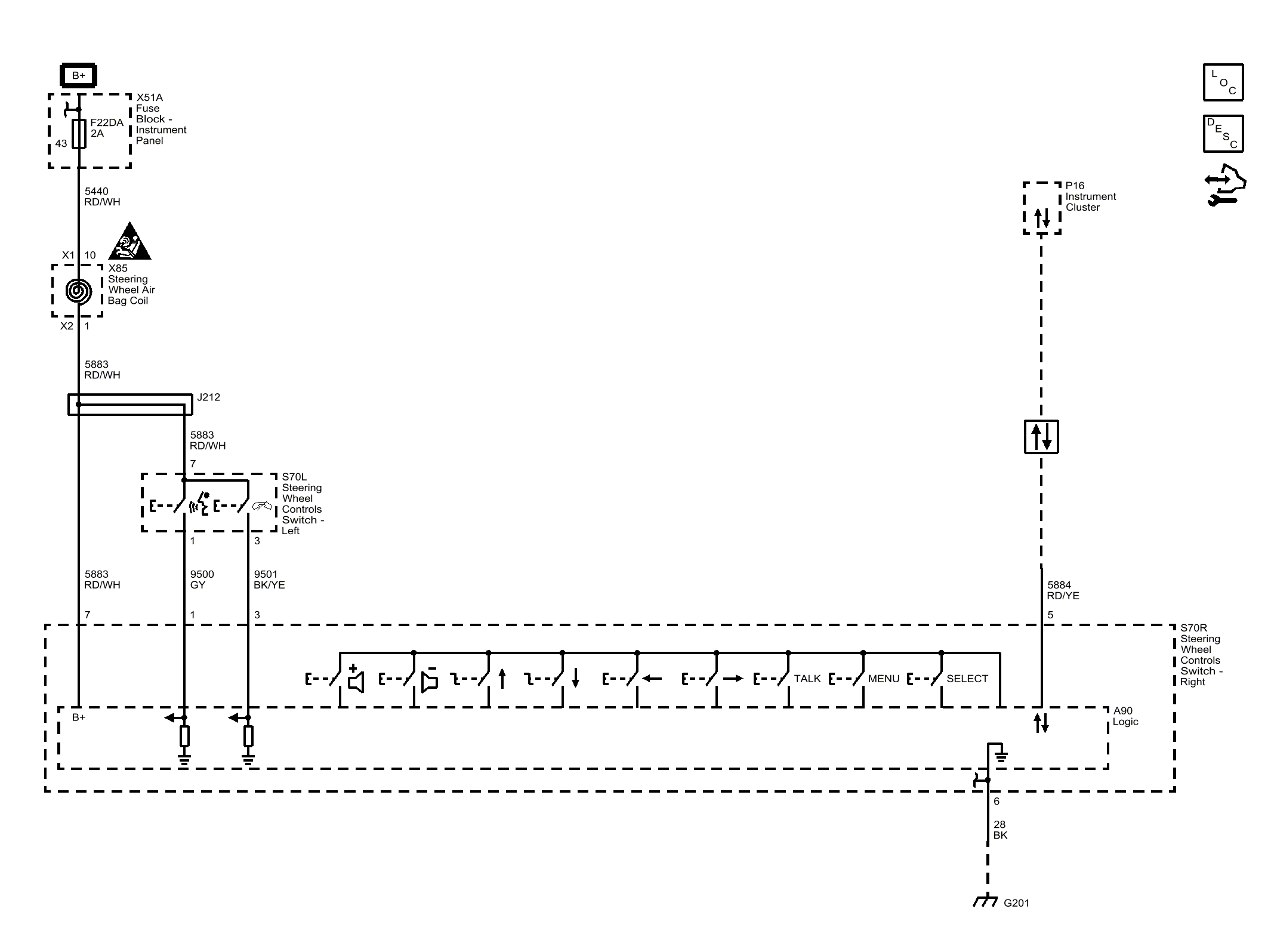

Fig 1: Secondary and Configurable Controls
Courtesy of GENERAL MOTORS COMPANY
