Hazard Warning Switch Replacement

WARNING: This page is about a different car, the 2016 GMC Acadia, 2016 Chevrolet Traverse, and 2016 Buick Enclave. However, it is still accessible from the selected car via links, so may be relevant.

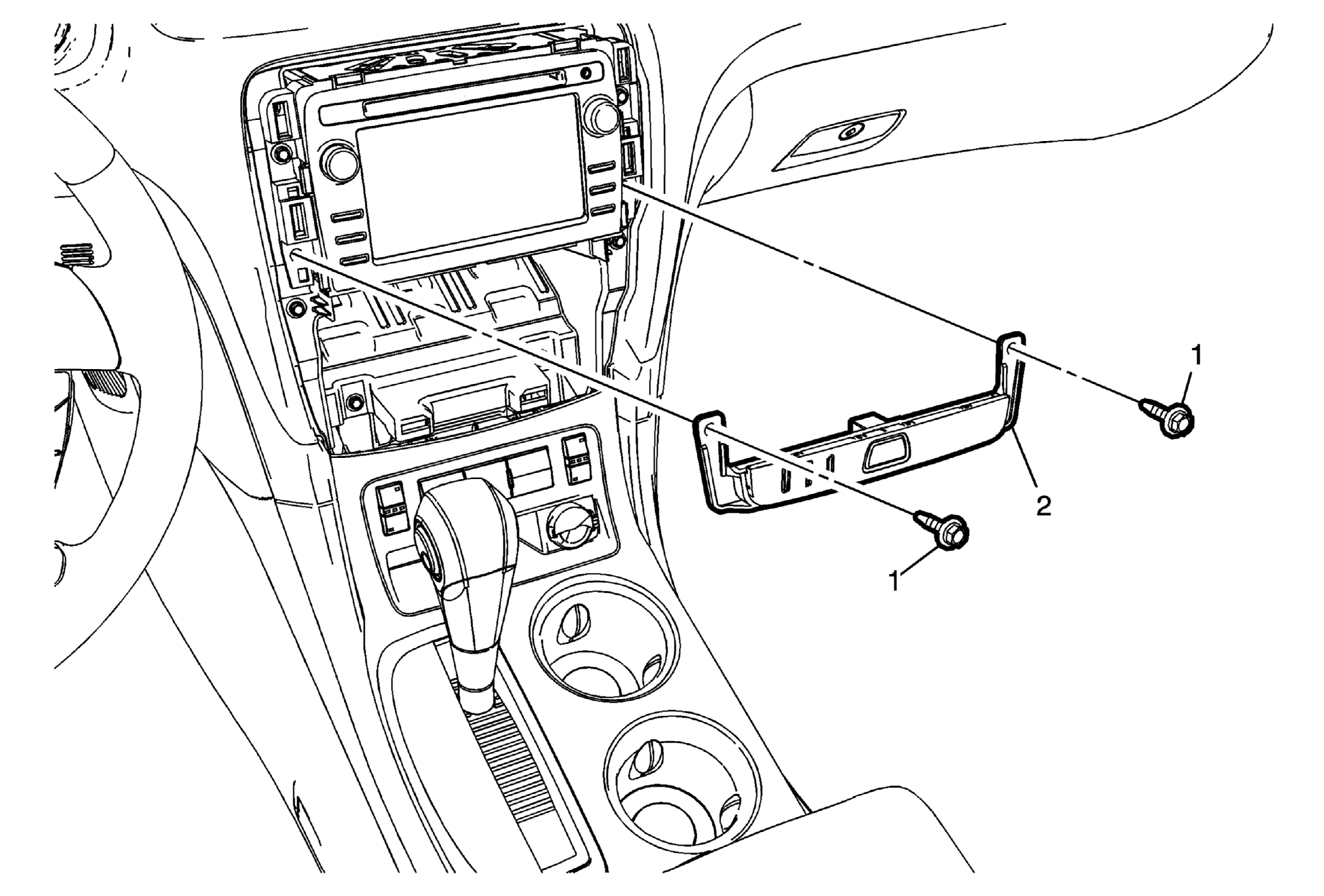

Fig 1: Hazard Warning Switch

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Remove the instrument panel accessory trim plate. Refer to Instrument Panel Accessory Trim Plate Replacement (Acadia)Instrument Panel Accessory Trim Plate Replacement (Enclave)Instrument Panel Accessory Trim Plate Replacement (Traverse) .
1	Hazard Warning Switch Fastener (Qty: 2) CAUTION: Refer to Fastener Caution .
2	Hazard Warning Switch Procedure Disconnect the electrical connector. After replacing the hazard warning switch, remove the instrument panel cluster fuse for a few seconds and then install the fuse.

Callout

Component Name

Preliminary Procedure
Remove the instrument panel accessory trim plate. Refer to Instrument Panel Accessory Trim Plate Replacement (Acadia)Instrument Panel Accessory Trim Plate Replacement (Enclave)Instrument Panel Accessory Trim Plate Replacement (Traverse) .

Hazard Warning Switch Fastener (Qty: 2)

CAUTION:

Refer to Fastener Caution .

Hazard Warning Switch

Procedure

Disconnect the electrical connector.
After replacing the hazard warning switch, remove the instrument panel cluster fuse for a few seconds and then install the fuse.
